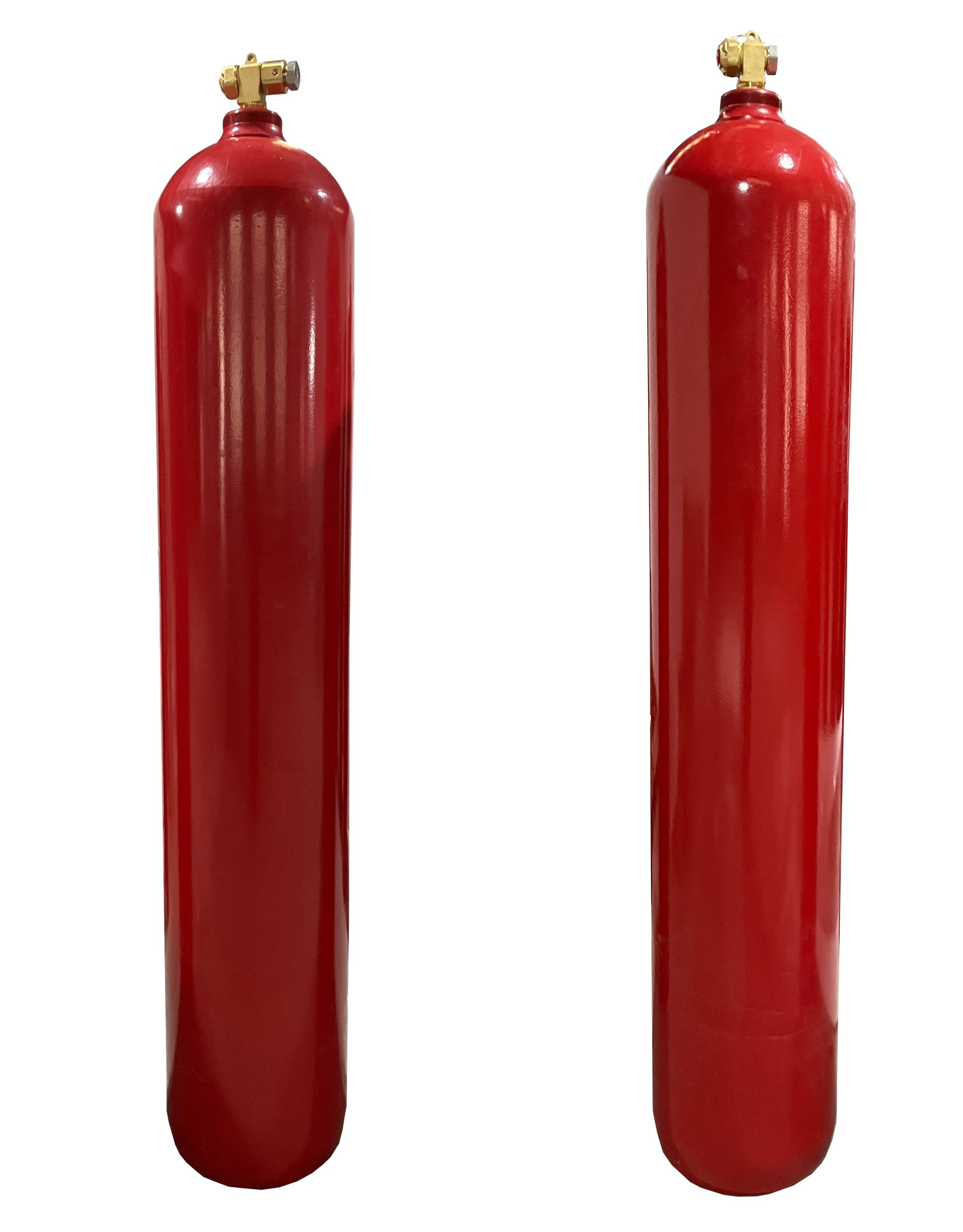

Cylinder For Enclosed Flooding CO2 Fire Extinguishing System In UPS Room
Carbon Dioxide (CO2) is an excellent fire suppression agent. It has been used in the fire protection industry for many years, and is listed under NFPA-12 Carbon Dioxide Fire Extinguishing Systems. CO2 is used for a variety of systems; including total flooding, local application, and inerting.
CO2 extinguishes a fire by removing the oxygen from the surrounding area, and for local application type systems, breaks the fire triangle by removing the heat. Because of the safety considerations when using CO2, it is only used for very specific applications, and not where the hazards are occupied. Please consult AFT with any questions using CO2. It can be supplied in high pressure and low pressure storage tanks.
Being one of the major players in the power generation fire protection industry, it is not uncommon to supply a 6 ton storage tank for a turbine site. For many industrial applications, we supply high pressure CO2 cylinders. We also supply the associated detection and control equipment required. If you would like to speak with us regarding CO2 fire suppression systems, please feel free to contact us.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Device Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Filling Volume of Gas | 42kg |
| 4 | Working Pressure | 5.7MPa |
| 5 | Max Working Pressure | 12.4MPa |
| 6 | Spraying Time | ≤60s |
| 7 | Max Filling Rate | 0.6kg/L |
| 8 | Power | DC24V/1.6A |
| 9 | Working Pressure of Releasing Device |
Container Valve: 19±0.95MPa; Manifold: 15±0.75MPa |
| 10 | Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | Temperature: 0~50℃ |
Application
Library and archives room, electronic computer room, electrical substation, telecommunication room, hangar, garage, cargo, paint-spraying room, boiler room, control center, etc.
It is suitable for putting out all kinds of the fires of flammable liquid and solid matter; gas fire in which power can be cut off before extinguishing the fire.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
