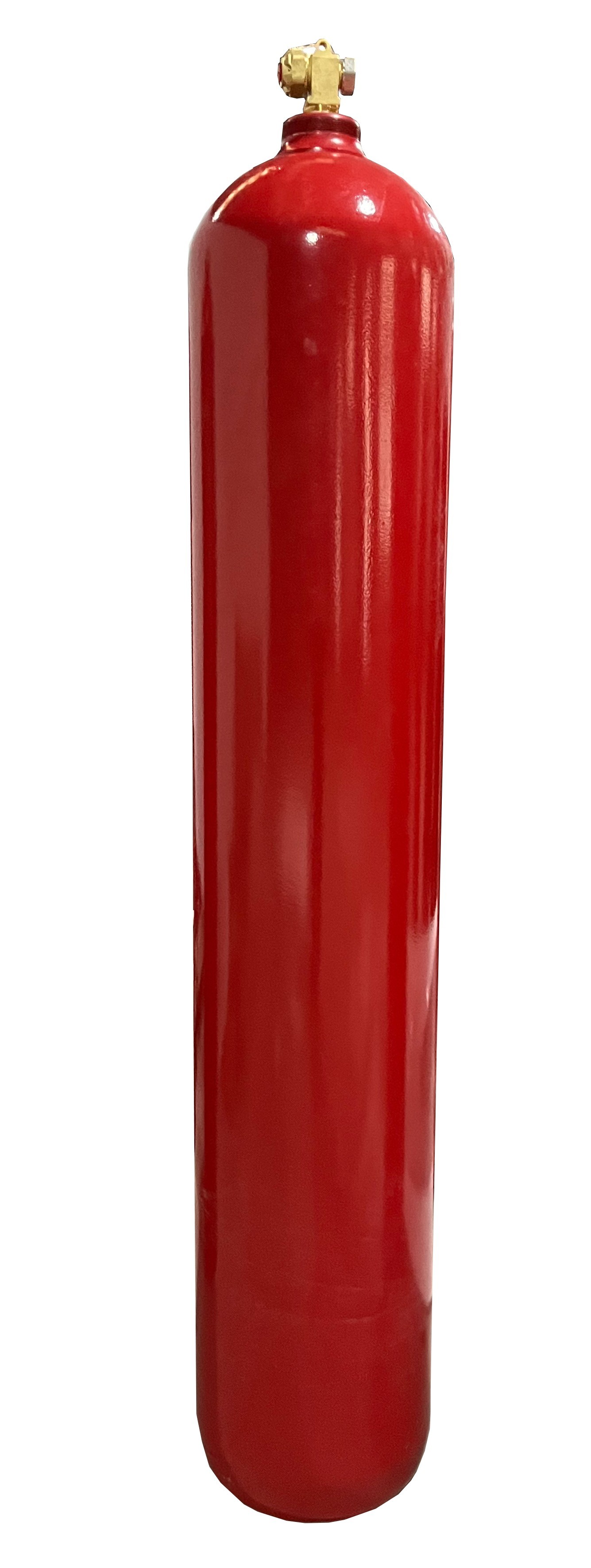

Cylinder For Environment-Friendly CO2 Fire Extinguishing System In Server Room
Carbon dioxide or CO2 is a colorless, odorless, electrically non-conductive gas that is highly efficient as a fire suppression agent. Air Giant Carbon Dioxide fire protection systems use intelligent, reliable and fast-acting control panels to quickly sense a fire before it can cause damage to property. Carbon dioxide gas has a high rate of expansion, which allows a Air Giant CO2 fire protection system to work fast.
When applied to a fire, CO2 provides a heavy blanket of gas that reduces the oxygen level to a point where combustion cannot occur. Since carbon dioxide is a gas, there is no clean-up associated with CO2 fire suppression system discharge. That means minimal interruption to your business. In fact, the cost of clean-up and peripheral damage associated with water sprinkler systems, foam systems and dry chemical agents can exceed the costs associated with the actual fire damage. With a Carbon Dioxide system, clean-up costs and downtime associated with a CO2 discharge are negligible.
Air Giant CO2 fire suppression system is extremely versatile and effective on a wide range of flammable and combustible materials and approved for Class A, B and C hazards.
Air Giant Carbon Dioxide fire protection systems are available for use in total flooding or local fire protection applications – making it an effective fire protection system for a wide variety of hazards.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Device Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Filling Volume of Gas | 42kg |
| 4 | Working Pressure | 5.7MPa |
| 5 | Max Working Pressure | 12.4MPa |
| 6 | Spraying Time | ≤60s |
| 7 | Max Filling Rate | 0.6kg/L |
| 8 | Power | DC24V/1.6A |
| 9 | Working Pressure of Releasing Device |
Container Valve: 19±0.95MPa; Manifold: 15±0.75MPa |
| 10 | Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | Temperature: 0~50℃ |
Application
Library and archives room, electronic computer room, electrical substation, telecommunication room, hangar, garage, cargo, paint-spraying room, boiler room, control center, etc.
It is suitable for putting out all kinds of the fires of flammable liquid and solid matter; gas fire in which power can be cut off before extinguishing the fire.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
