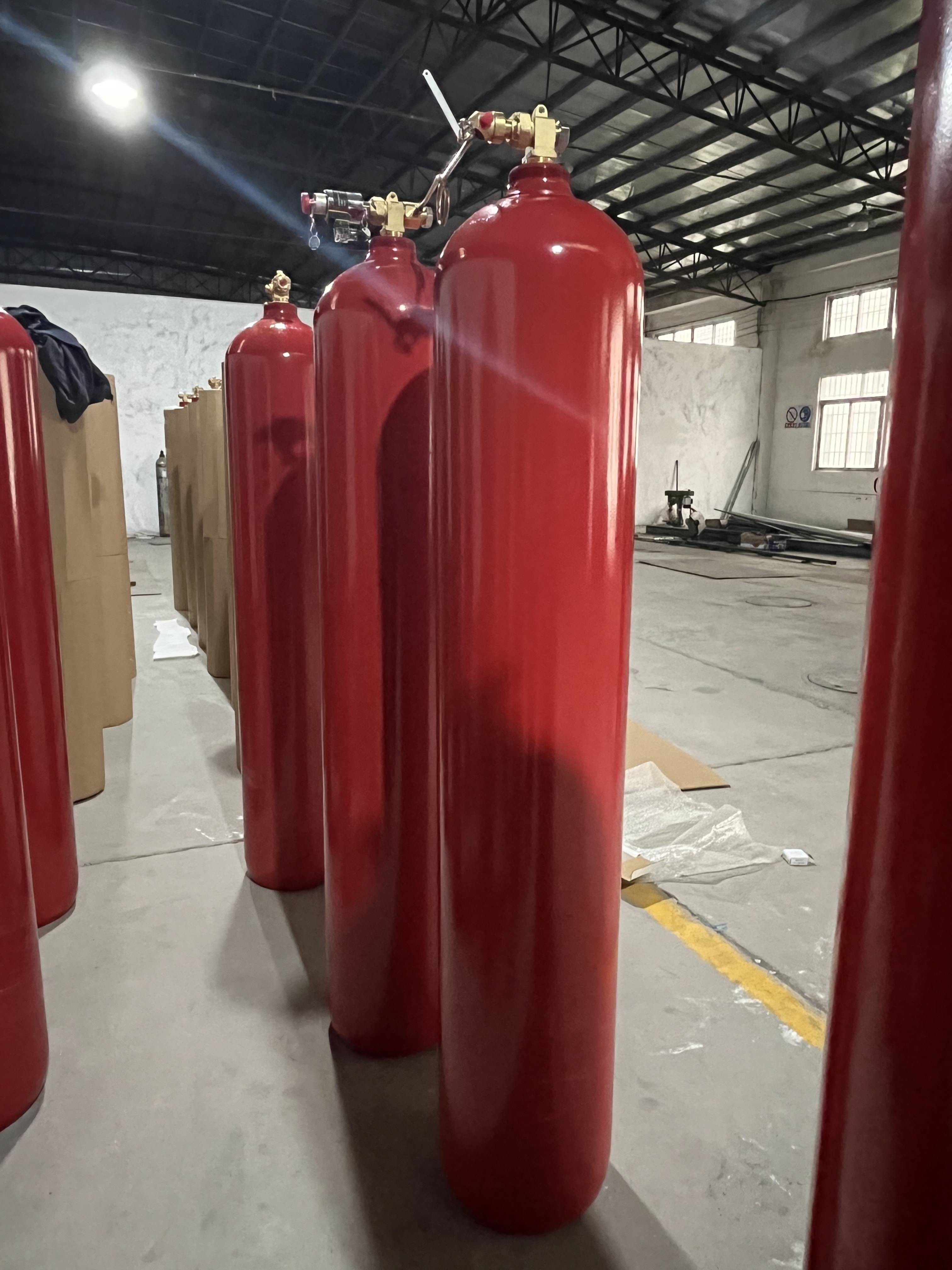

Cylinder For High-Quality CO2 Fire Extinguishing System In Battery Room
Pressurized CO2 fire suppression system is a kind of intelligent automatic fire extinguishing equipment, which uses pressurized CO2 as extinguishing agent. Pressurized CO2 extinguishing agent won’t cause damage for most things, because of its no residue and non-toxic after extinguishing. This agent still have many advantages: insulating, no water damage and good extinguishing effect.
Depend on different requirements of protection zone, pressurized CO2 fire suppression system can be designed as two kinds of the systems: unit system for single zone; combined distribution system for multiple zones. Adopts enclosed flooding extinguishing to realize the fire protection for single protected zone or multiple protected zones. Our system has three mode of starting: automatic, manual and machine emergency control. The system is advanced technology, high extinguishing efficiency and convenient maintenance.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Device Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Filling Volume of Gas | 42kg |
| 4 | Working Pressure | 5.7MPa |
| 5 | Max Working Pressure | 12.4MPa |
| 6 | Spraying Time | ≤60s |
| 7 | Max Filling Rate | 0.6kg/L |
| 8 | Power | DC24V/1.6A |
| 9 | Working Pressure of Releasing Device |
Container Valve: 19±0.95MPa; Manifold: 15±0.75MPa |
| 10 | Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | Temperature: 0~50℃ |
Application
-It is suitable for putting out all kinds of the fires of flammable liquid and solid matter; gas fire in which power can be cut off before extinguishing the fire.
-paint-spraying room
-electronic computer room
-telecommunication room
-archives room
-boiler room
-control center
-hangar
-garage
-Library
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
