Description

The fire extinguishing effect of FM200 is less affected by environmental factors, mainly due to its fast response time and efficient fire extinguishing ability. However, it is important to note that FM200 has a high global warming potential (GWP), so although it is not harmful to the ozone layer, its environmental impact is of concern. To reduce the environmental impact, steps are being taken to promote the responsible use of FM200 and to explore alternative fire extinguishing agents with lower GWP.

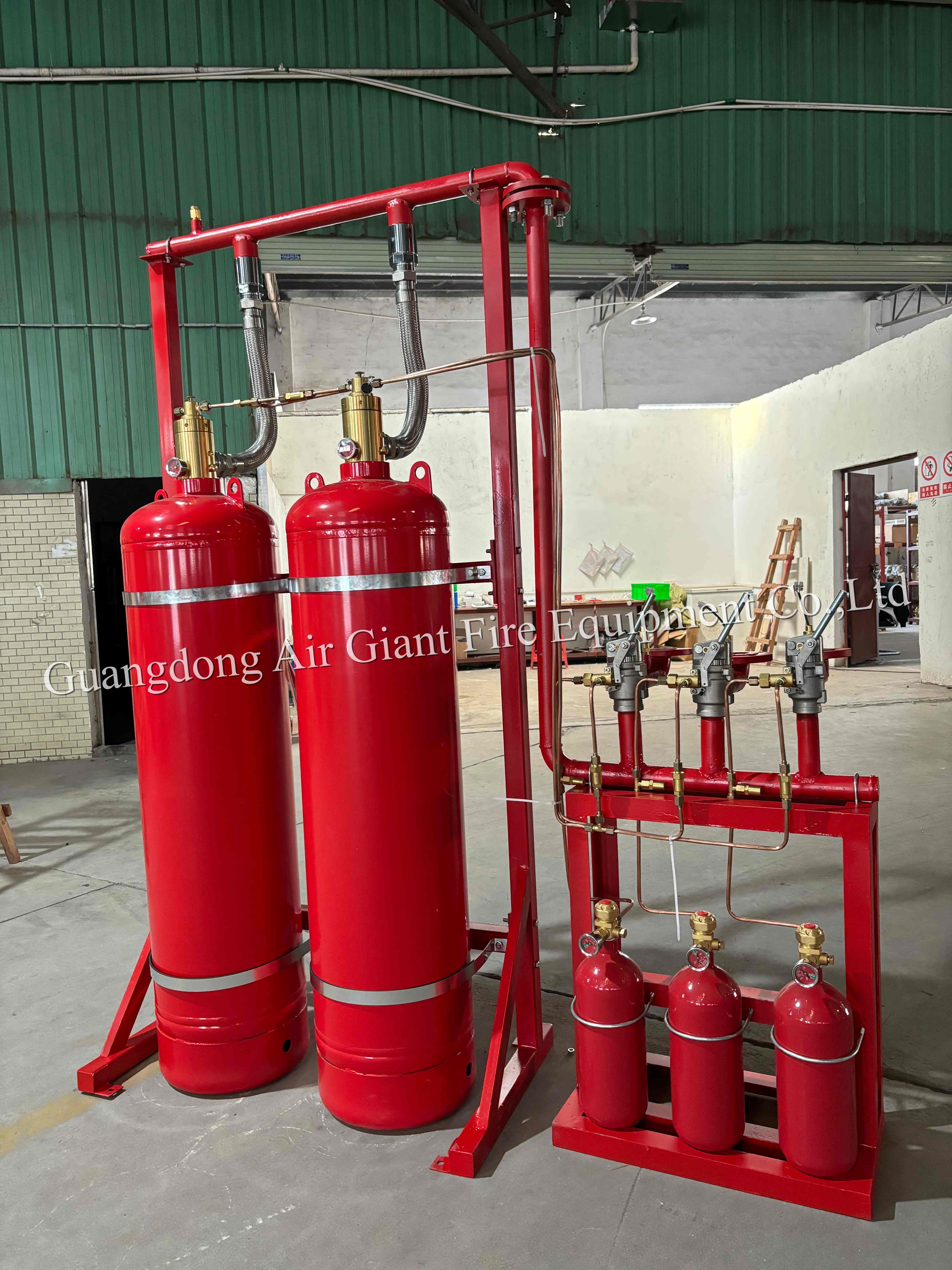

Components

A complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on electrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:

 1/ Fm200 cylinder

 2/ Container valve

 3/ Solenoid actuator

 4/ Flexible hose

 5/ Liquid flow check valve

 6/ Cylinder frame

 7/ Manifold

 8/ Safety valve

 9/ Pressure switch

Working Principle:

The FM200 Fire Suppression System is also highly effective at extinguishing fires. It works by interrupting the chemical chain reaction that occurs during a fire, preventing the fire from spreading and extinguishing it quickly. The system can extinguish fires within 10 seconds, providing a rapid response that can help to minimize damage and downtime.

Here is the illustration of working principle to whole system:

Application:

The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:

- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories

Advantages

The FM200 Fire Suppression System is a popular choice for protecting sensitive and valuable equipment and materials in a variety of settings. Here are some of its advantages:

1.Environmentally Friendly: FM200 is an environmentally friendly fire suppression agent that does not harm the ozone layer and has a low global warming potential. It is a sustainable choice that can help companies reduce their carbon footprint and meet environmental regulations.

2.Cost-Effective: FM200 systems are cost-effective compared to other fire suppression systems, such as water-based systems. They require less space for installation and maintenance and have lower cleaning and restoration costs after a fire.

3.Flexible Design: FM200 systems can be customized to meet the specific needs of different facilities and industries. They can be configured to protect large or small areas, and the agent can be stored in tanks or cylinders depending on the space and application.

Packages

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
