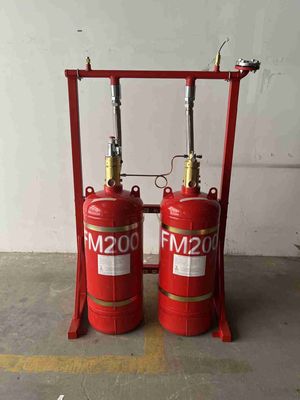

Non Corrosive Fm200 Gas Suppression System Without Pollution DC 24V 1.6A

1 set
MOQ
negotiation
Price
Non Corrosive Fm200 Gas Suppression System Without Pollution DC 24V 1.6A
Features Gallery Product Description Request A Quote
Features
Specifications
Storage Pressure: 4.2 MPa
Spraying Time: ≤10s
Filling Density: ≤950kg/m3
Nominal Pressure: 5.3MPa
Test Pressure: 8.4MPa
Working Power: DC 24V 1.6A
Working Temperature: 0℃~50℃
Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³
Starting Mode: Automatic, Electrical Manual, Mechanical Manual
Cylinder Volume: 40L、70L、100L、120L、150L、180L
High Light:

Non Corrosive Fm200 Gas System

,

Fm200 Gas System DC 24V 1.6A

,

Non Corrosive fm200 gas suppression system

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

Non Corrosive Fm200 Gas System Without Pollution for Library



HFC-227ea (also known as Fm200) gas is a kind of colorless, odorless and clean fire agent used widely all around the world.Compared to other kinds of fire agents like CO2 and halon, HFC-227ea is more environmentally friendly for it will not hurt the zone layer but others will. HFC-277ea gas has ozone depleting possibility of zero.



What’s more, HFC-227ea has all advantages that other fire agents have, like nontoxic, noncorrosive and electrical insulated so that HFC-227ea gas is considered as the optimum substitute to halon series.



HFC-227ea can put out fire efficiently in 10s without leaving any residues, so users do not need more money and time to clean up the places after this HFC-227ea system is activated.



Parameters

NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate ≤0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2MPa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start





Components



Pipe network fm200 fire suppression device is composed of the follow-up components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.

Non Corrosive Fm200 Gas Suppression System Without Pollution DC 24V 1.6A 0

Application



• Computer room, communication room, power distribution room, library, archives,

Museum, etc.



• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas

source before extinguishing occur, etc.

Non Corrosive Fm200 Gas Suppression System Without Pollution DC 24V 1.6A 1



Advantages



1. Management of multiple zones

2. Efficient fire protection in big region

3. Less occupation in fire-controlled space

4. Relatively cheap price than cabinet or hanging type if zone is big and multiple





Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
