Name: Insulated FM200 Fire Extinguishing System Without Pollution For Power Room
Brand: Guangdong Air Giant Fire Equipment Co.,Ltd.
SKU: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Storage Pressure: 4.2MPa

Spraying Time: ≤10s

Filling Density: ≤950kg/m3

Nominal Pressure: 5.3MPa

Test Pressure: 8.4MPa

Working Power: DC 24V 1.6A

Working Temperature: 0℃～50℃

Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³

Starting Mode: Automatic, Electrical Manual, Mechanical Manual

Cylinder Volume: 40L、70L、100L、120L、150L、180L Or Customized

Highlight:

Insulated FM200 Fire Extinguishing System

FM200 Fire Suppression for Power Room

Pollution-free FM200 Fire Protection System

Basic Infomation

Place of Origin: China

Brand Name: Air Giant

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card

Supply Ability: 28000 sets per week

Gallery

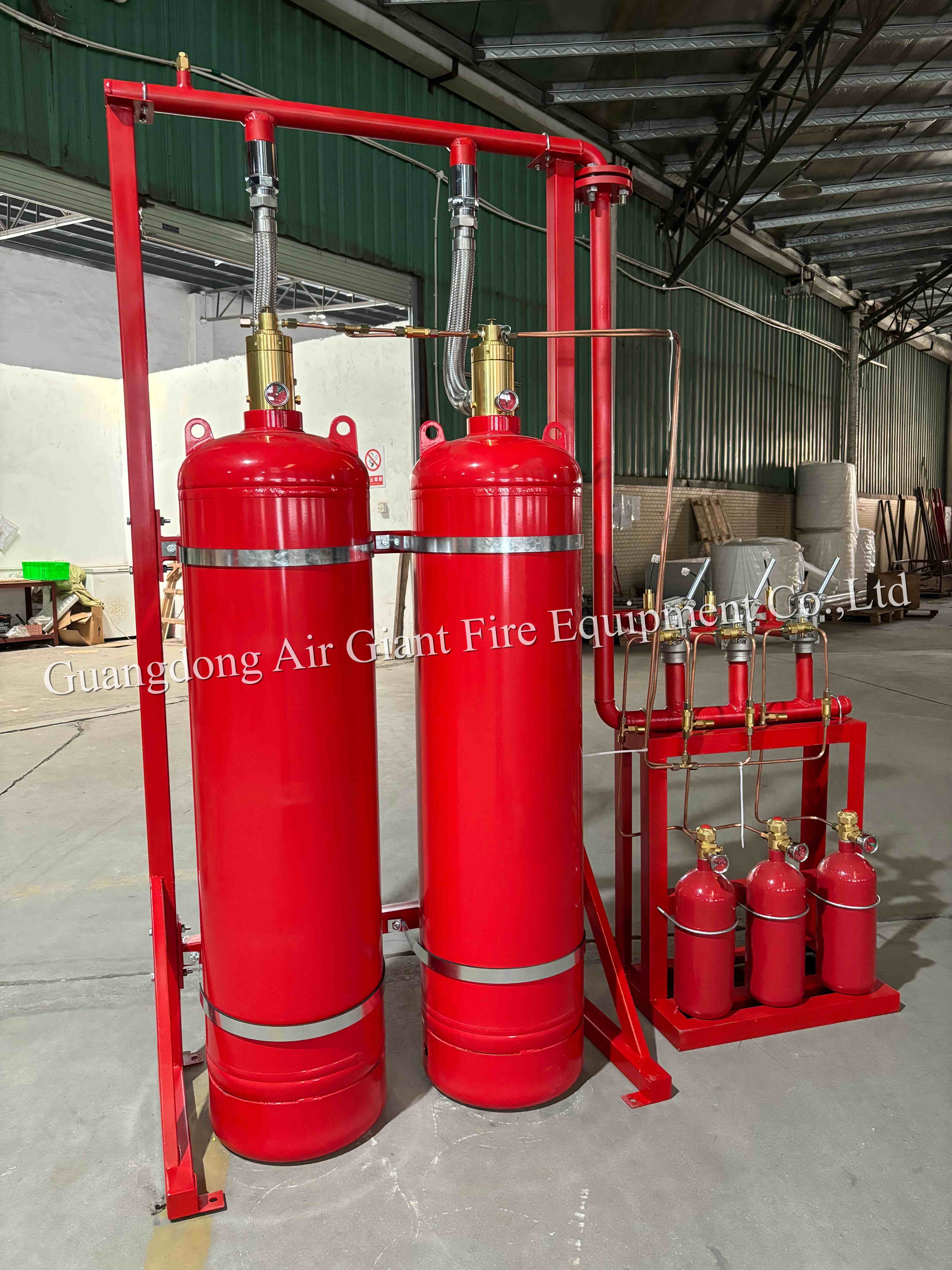

Insulated FM200 Fire Extinguishing System Without Pollution For Power Room

Product Description

Insulated FM200 Fire Extinguishing System Without Pollution For Power Room

Fire extinguishing agent FM200, also known as heptafluoropropane (HFC-227ea), is a cleaning agent that can quickly and effectively extinguish fires in different environments. It absorbs the heat of the fire source and interrupts the chemical chain reaction of the flame to extinguish the fire. It is a colorless, odorless, no residue gas, safe for electronic equipment and data, and basically harmless to the human body.

Physical and Chemical Properties

Chemical Formula: C3HF7 (Heptafluoropropane)

Colorless and Odorless: Difficult to detect without specialized equipment

Non-Corrosive: Does not react with or damage metals, plastics, or other materials

Low Toxicity: Safe for human occupancy when used according to guidelines

High Boiling Point: 16.4°C (61.5°F) - remains gaseous at room temperature

Non-Conductive: Safe for use around electrical equipment

Low Global Warming Potential: GWP of 0.02, much lower than halon

Rapid Extinguishing Action: Extinguishes fires quickly by removing heat and interrupting chemical reactions

System Components

Mechanical Parts: Cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose (primarily for storing FM200 agent)
Electrical Parts: Smoke detector, heat detector, bell
Pipe Fittings: Conduit, connector, elbow, flange

Applications

Standard Applications: Electronic computer rooms, data processing centers, telecommunications facilities, process control areas, expensive medical equipment, industrial equipment, libraries, museums, art galleries, clean rooms, anechoic chambers, emergency power facilities, flammable liquid storage areas.

High-Risk Environments: Paint-spraying production lines, aging electrical equipment, rolling machines, printing machines, oil switches, oil immersed transformers, melt impregnating tanks, large generators, drying equipment, cement production processes of pulverized coal, ship's engine rooms, cargo holds.

Key Advantages

Quick and Effective Suppression: Extinguishes fires in as little as 10 seconds, preventing significant damage and downtime
Safe for Human Occupancy: Clean agent with no residue, low toxicity levels, and does not displace oxygen in confined spaces
Non-Conductive: Safe for use in areas with electrical equipment such as data centers and server rooms

Packaging

We always pack components with polyfoam first and then place them in wooden cases. When required by customer specifications or safety regulations, we will prepare pallets for the goods.
