Name: Enclosed Flooding HFC227ea Fire Suppression System Without Residue For Library
Brand: Guangdong Air Giant Fire Equipment Co.,Ltd.
SKU: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Storage Pressure: 4.2MPa

Spraying Time: ≤10s

Filling Density: ≤950kg/m3

Nominal Pressure: 5.3MPa

Test Pressure: 8.4MPa

Working Power: DC 24V 1.6A

Working Temperature: 0℃～50℃

Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³

Starting Mode: Automatic, Electrical Manual, Mechanical Manual

Cylinder Volume: 40L、70L、100L、120L、150L、180L Or Customized

Highlight:

HFC227ea fire suppression system for library

FM200 fire suppression system without residue

enclosed flooding fire suppression system

Basic Infomation

Place of Origin: China

Brand Name: Air Giant

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card

Supply Ability: 28000 sets per week

Gallery

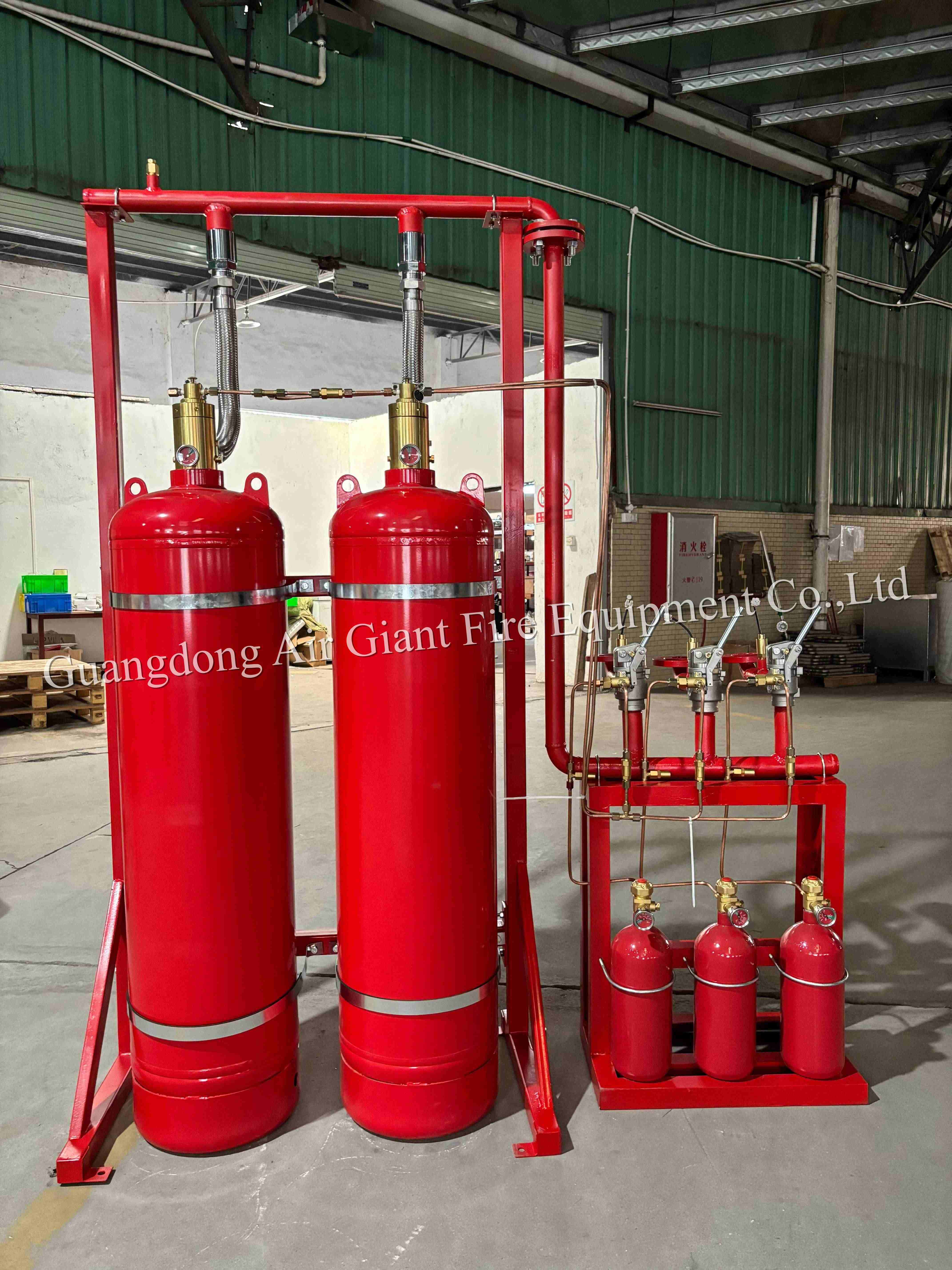

Enclosed Flooding HFC227ea Fire Suppression System Without Residue For Library

Product Description

Enclosed Flooding HFC227ea Fire Suppression System Without Residue For Library

System Overview

The FM200 Fire Suppression System is a state-of-the-art fire suppression system that uses a clean and safe chemical agent, HFC-227ea (1,1,1,2,3,3,3-Heptafluoropropane), to extinguish fires quickly and effectively. The system is designed to provide rapid response to fire emergencies while minimizing damage to critical assets and preserving the safety of people and the environment.

The system works by interrupting the chemical chain reaction that occurs during a fire, preventing the fire from spreading and extinguishing it quickly. Using a combination of chemical and physical mechanisms, it provides a highly effective and reliable solution for fire protection in critical areas and equipment.

System Components

The FM200 fire suppression device pipe network consists of the following components:

FM200 agent
FM200 cylinders
Container valves
Flexible hoses
Liquid flow check valves
Manifold assembly
Safety valve
Pressure switch
Nitrogen driving device(s)
Driving device frame
Gas control pipe
Gas flow check valves (as required)
Selective valves (as required)
Elbows and flanges
Nozzles

For single protected zone systems, gas flow check valves and selective valves are excluded from the configuration.

Working Principle

The FM200 Fire Suppression System effectively extinguishes fires by interrupting the chemical chain reaction that occurs during combustion, preventing fire spread and achieving rapid extinguishment. The system can extinguish fires within 10 seconds, providing immediate response that helps minimize damage and operational downtime.

Applications

Ideal for protecting sensitive environments where traditional water-based systems could cause damage:

Computer rooms
Telecommunication centers
Underground facilities
Offshore oil extraction facilities
Libraries
Data and paper archives
Valuable article storage
Power generator storage rooms

System Advantages

Minimal Damage: Leaves no residue or oily deposits after use, reducing cleanup requirements and minimizing equipment damage
Versatile: Suitable for applications ranging from small server rooms to large data centers and industrial facilities, with customizable configurations
Easy to Install and Maintain: Requires less space and fewer components than other suppression systems, making it cost-effective for fire protection

Packaging

Components are packed with polyfoam for protection and then placed in wooden cases. When required by customer specifications or safety regulations, pallets are provided for secure transportation.
