UL Automatic Fire Suppression System In The Data Center Without Pollution Of NOVEC1230
Description of UL NOVEC1230 contianer
-- Attributes of Seamless Steel TPED series cylinders(40-60L)
|
Material
|
37Mn
|
|
Carbon:
|
0.31-0.38%
|
|
Mn:
|
1.40-1.70%
|
|
Si:
|
0.17-0.35%
|
|
Cr:
|
≤ 0.3%
|
|
Ni:
|
≤ 0.2%
|
|
S:
|
≤0.01%
|
|
P:
|
≤0.02%
|
|
S+P:
|
≤0.025%
|
|
V+Nb+Ti+B+Zr:
|
≤0.15%
|
|
Nominal Working Pressure
|
60 bar
|
|
Hydrostatic Test Pressure
|
90 bar
|
|
Work Temperature
|
-50 °C ~ 65 °C
|
|
Paint Specification
|
Red Polyester Powder Coated
|
|
Certification
|
TPED
|
-- Attributes of Seamless Steel TPED series cylinders(80-180L)
|
Material
|
30CrMo
|
|
Carbon:
|
0.26-0.34%
|
|
Mn:
|
0.40-0.70%
|
|
Si:
|
0.17-0.37%
|
|
Cr:
|
0.8-1.1%
|
|
Mo:
|
0.15-0.25%
|
|
S:
|
≤0.01%
|
|
P:
|
≤0.02%
|
|
S+P:
|
≤0.025%
|
|
V+Nb+Ti+B+Zr:
|
≤0.15%
|
|
Nominal Working Pressure
|
60 bar
|
|
Hydrostatic Test Pressure
|
90 bar
|
|
Work Temperature
|
-40 °C ~ 65 °C
|
|
Paint Specification
|
Red Polyester Powder Coated
|
|
Certification
|
TPED
|
-- FK-5-1-12 Seamless Steel Container Assembly Details (TPED Container)
|
Cylinder with
Valve Assembly
Part No.
|
Container
Assembly
Type
|
Nominal
Working
Pressure
(bar)
|
Nominal
Cylinder
Volume
(L)
|
Fill Capacity
(kg)
|
Outlet
Size
(mm)
|
Empty
Weight
(kg)
|
|
Min.
|
Max.
|
|
813.101.1006
|
MS5112SPA-25-20W
|
25
|
20
|
9.6
|
22.2
|
33
|
34
|
|
813.101.1016
|
MS5112SPA-25-30W
|
30
|
14.4
|
33.3
|
33
|
42
|
|
813.101.1026
|
MS5112SPA-25-40W
|
40
|
19.2
|
44.4
|
33
|
51
|
|
813.101.1036
|
MS5112SPA-25-50W
|
50
|
24.0
|
55.5
|
33
|
60
|
|
813.101.0906
|
MS5112SPA-25-40U
|
40
|
19.2
|
44.4
|
33
|
51
|
|
813.101.0916
|
MS5112SPA-25-50U
|
50
|
24.0
|
55.5
|
33
|
60
|
|
813.101.0926
|
MS5112SPA-25-60U
|
60
|
28.8
|
66.6
|
33
|
68
|
|
813.101.0936
|
MS5112SPA-25-80U
|
80
|
60
|
88.8
|
49
|
82
|
|
813.101.0956
|
MS5112SPA-25-100U
|
100
|
60
|
111
|
49
|
93
|
|
813.101.0966
|
MS5112SPA-25-120U
|
120
|
60
|
133.2
|
49
|
104
|
|
813.101.0976
|
MS5112SPA-25-140U
|
140
|
67.2
|
155.4
|
49
|
115
|
|
813.101.0996
|
MS5112SPA-25-180U
|
180
|
86.4
|
199.8
|
49
|
137
|
|
813.101.1008
|
MS5112SPA-42-20X
|
42
|
20
|
9.6
|
22.2
|
33
|
34
|
|
813.101.1018
|
MS5112SPA-42-30X
|
30
|
14.4
|
33.3
|
33
|
42
|
|
813.101.1028
|
MS5112SPA-42-40X
|
40
|
19.2
|
44.4
|
33
|
51
|
|
813.101.1038
|
MS5112SPA-42-50X
|
50
|
24.0
|
55.5
|
33
|
60
|
|
813.101.0908
|
MS5112SPA-42-40V
|
40
|
19.2
|
44.4
|
33
|
51
|
|
813.101.0918
|
MS5112SPA-42-50V
|
50
|
24.0
|
55.5
|
33
|
60
|
|
813.101.0928
|
MS5112SPA-42-60V
|
60
|
28.8
|
66.6
|
33
|
68
|
|
813.101.0938
|
MS5112SPA-42-80V
|
80
|
60
|
88.8
|
49
|
82
|
|
813.101.0958
|
MS5112SPA-42-100V
|
100
|
60
|
111
|
49
|
90
|
|
813.101.0968
|
MS5112SPA-42-120V
|
120
|
60
|
133.2
|
49
|
98
|
|
813.101.0978
|
MS5112SPA-42-140V
|
140
|
67.2
|
155.4
|
49
|
106
|
|
813.101.0998
|
MS5112SPA-42-180V
|
180
|
86.4
|
199.8
|
49
|
137
|
Description of UL NOVEC1230 Fire Suppression System
The noise created by the FK-5-1-12 agent discharging can be loud enough to startle people in the vicinity, but is unlikely to cause any permanent injury. Turbulence caused by the high velocity discharge can dislodge substantial objects directly in its path, and cause enough general turbulence within the protected area to move paper and light objects.
Direct contact with the vaporizing liquid discharged from an FK-5-1-12 nozzle has a chilling effect on objects and in extreme cases can cause frostbite to the skin. The liquid phase vaporises when mixed with air and therefore limits the risk to the immediate vicinity of the nozzle. Minor reduction in visibility may occur for a brief period due to the condensation of water vapour.

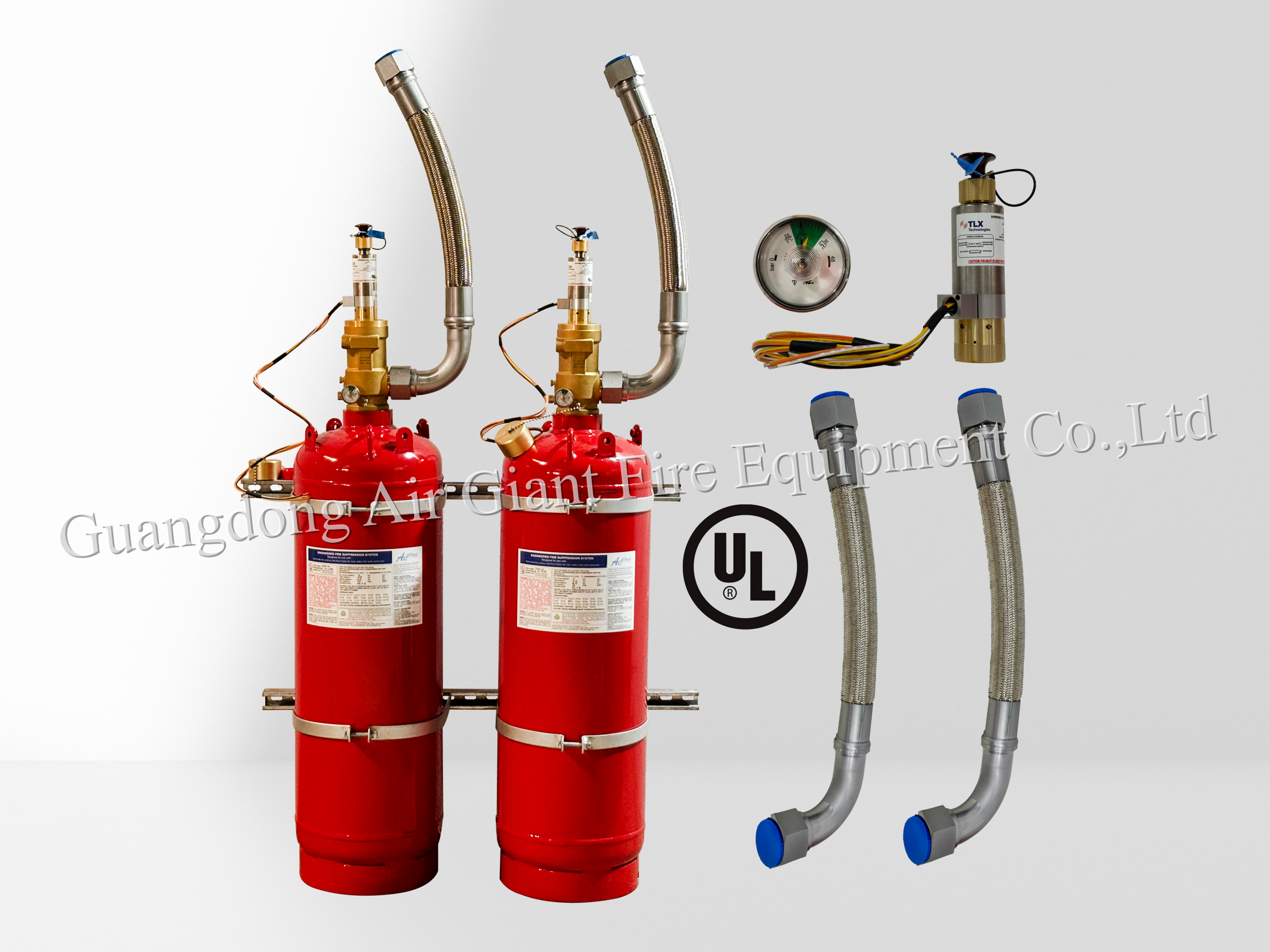

Components of UL NOVEC1230 Fire Suppression System
|
No.
|
Part Name
|
No.
|
Part Name
|
|
1
|
Cylinder
|
8
|
Manifold Check Valve
|
|
2
|
Mounting Bracket
|
9
|
Manifold
|
|
3
|
Fix Steel Channel
|
10
|
Pilot Hose
|
|
4
|
Container Valve
|
11
|
Manifold Safety Valve
|
|
5
|
Bleed Valve
|
12
|
Discharge Pressure Switch
|
|
6
|
Pneumatic Actuator
|
13
|
Electrical Actuator
|
|
7
|
Discharge Hose
|
14
|
Nozzle
|
Features of UL NOVEC1230 Fire Suppression System
1. Environmental protection: Novec1230 / FK-5-1-12 is a non-toxic, colorless, tasteless, non-corrosive, non-conductive and non-explosive fire extinguishing agent, which can protect equipment and environment from damage.
2. High efficiency: the PFH automatic fire extinguishing system can extinguish the fire quickly in a short time without any damage to the protected equipment.
3. High safety: Novec1230 / FK-5-1-12 fire extinguishing agent has high stability, is not easy to burn, and will not produce harmful substances. Therefore, the use of this fire extinguishing system can effectively ensure the safety of personnel and equipment.
4. Strong flexibility: PFH automatic fire extinguishing system can flexibly adapt to different fire extinguishing requirements, and is applicable to various sizes and types of places.
Application of UL NOVEC1230 Fire Suppression System
- Computer rooms
- Telecommunication center
- Facilities underground
- Offshore oil extraction
- Library
- Data and paper archives
- Valuable article storage
- Power generator storage room
Packages of UL NOVEC1230 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
