Automatic Novec1230 Fire Suppression System Without Pollution For Storage Room
The molecular formula of perfluorohexanone Novec1230 is CE3CF2C (O) CF (CE3) 2, and the relative molecular weight is 316.04. It is a clear, colorless, slightly odorous, and easily gasified liquid fire extinguishing agent at room temperature, which is not a dry hazardous substance and does not leave residue after release. The fire extinguishing agent is neither dry HFC nor inert gas. It is a new halon substitute and has made breakthrough progress in halon substitute field.
Novec1230 gas fire extinguishing agent does not contain bromine and chlorine elements, and does not damage the body oxygen layer after fire extinguishing, and its body oxygen consumption potential value is zero. At the same time, more importantly, unlike hydrofluorocarbon fire extinguishing agent, Novec1230 has a very low greenhouse effect potential value, GWP=1 is equivalent to CO2, and Novec1230 has a short life in the atmosphere, only 3-5 days, so it fundamentally solves the environmental pollution caused by halon fire extinguishing agent and hydrofluorocarbon fire extinguishing agent
Starting Mode: Automatic, Electrical Manual, Mechanical Manual | Cylinder Volume: 40L,70L,100L,120L,150L,180L |
Storage Pressure: 4.2 MPa | Spraying Time: ≤10s |
Working Temperature: 0℃~50℃ | Protected Zone Range:: Proportion: ≤800m² Volume: ≤3600m³ |
Components
The pipe network model of Novec1230 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

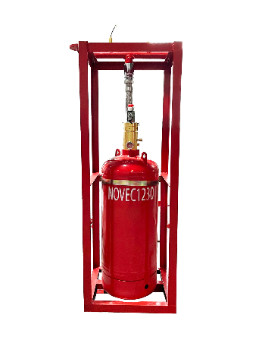

The main part of the system is fire fighting equipment. It is formed by several components: Novec1230 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
Application
The pipe network type Novec1230 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Advantages
There are a lot of advantages of the single zone Novec1230 fire suppression system compared to other fire suppression system.
1/ It is the single zone Novec1230 fire suppression system that can protect the largest volume among the Novec1230 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.
2/ Using single zone Novec1230 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.
3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.
4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
