UL Automatic Fire Suppression System In The Data Center Without Pollution Of NOVEC1230
Description of UL NOVEC1230 contianer
-- Attributes of Welded Steel TPED series container
|
Material
|
P355M
|
|
Carbon:
|
≤0.14%
|
|
Manganese:
|
≤1.60%
|
|
Silicon:
|
≤0.50%
|
|
Phosphorus:
|
≤0.025%
|
|
Sulphur:
|
≤0.010%
|
|
Nominal Working Pressure
|
42 bar ( 609 psi )
|
|
Pneumatic Test Pressure
|
63 bar ( 914 psi )
|
|
Burst Test Pressure
|
≥ 126 bar ( 1827 psi )
|
|
Work Temperature
|
-20 °C ~ 65 °C
|
|
Paint Specification
|
Red Polyester Powder Coated
|
|
Certification
|
TPED
|
-- FK-5-1-12 (NOVEC1230) Welded Container Assembly Details :TPED Container
|
Cylinder with
Valve Assembly
Part No.
|
Container
Assembly
Type
|
Nominal
Working
Pressure
(bar)
|
Nominal
Cylinder
Volume
(L)
|
Fill Capacity
(kg)
|
Outlet
Size
(mm)
|
Empty
Weight
(kg)
|
|
Min.
|
Max.
|
|
813.101.0135
|
AG5112SPA-16.6
|
25
|
16.6
|
8.0
|
18.4
|
33
|
21
|
|
813.101.0145
|
AG5112SPA-28.3
|
28.3
|
13.6
|
31.4
|
33
|
29
|
|
813.101.0215
|
AG5112SPA-30
|
30
|
14.4
|
33.3
|
33
|
26.3
|
|
813.101.0155
|
AG5112SPA-40
|
40
|
19.2
|
44.4
|
33
|
37
|
|
813.101.0165
|
AG5112SPA-50
|
50
|
24.0
|
55.5
|
33
|
42
|
|
813.101.0175
|
AG5112SPA-60
|
60
|
28.8
|
66.6
|
33
|
47
|
|
813.101.0185
|
AG5112SPA-70
|
70
|
60
|
77.7
|
49
|
59
|
|
813.101.0195
|
AG5112SPA-80
|
80
|
60
|
88.8
|
49
|
64
|
|
813.101.0196
|
AG5112SPA-90
|
90
|
60
|
99.9
|
49
|
73
|
|
813.101.0216
|
AG5112SPA-100
|
100
|
60
|
111
|
49
|
78
|
|
813.101.0226
|
AG5112SPA-120
|
120
|
60
|
133.2
|
49
|
89
|
|
813.101.0296
|
AG5112SPA-142
|
142
|
68.2
|
157.6
|
49
|
108
|
|
813.101.0236
|
AG5112SPA-150
|
150
|
72.0
|
166.5
|
49
|
105
|
|
813.101.0246
|
AG5112SPA-160
|
160
|
76.8
|
177.6
|
49
|
104
|
|
813.101.0256
|
AG5112SPA-170
|
170
|
81.6
|
188.7
|
49
|
139
|
|
813.101.0266
|
AG5112SPA-180
|
180
|
86.4
|
199.8
|
49
|
144
|
|
813.101.0137
|
AG5112SPA-16.6
|
42
|
16.6
|
8.0
|
18.4
|
33
|
21
|
|
813.101.0147
|
AG5112SPA-28.3
|
28.3
|
13.6
|
31.4
|
33
|
29
|
|
813.101.0157
|
AG5112SPA-40
|
40
|
19.2
|
44.4
|
33
|
37
|
|
813.101.0167
|
AG5112SPA-50
|
50
|
24.0
|
55.5
|
33
|
42
|
|
813.101.0177
|
AG5112SPA-60
|
60
|
28.8
|
66.6
|
33
|
47
|
|
813.101.0187
|
AG5112SPA-70
|
70
|
60
|
77.7
|
49
|
59
|
|
813.101.0197
|
AG5112SPA-80
|
80
|
60
|
88.8
|
49
|
64
|
|
813.101.0198
|
AG5112SPA-90
|
90
|
60
|
99.9
|
49
|
73
|
|
813.101.0218
|
AG5112SPA-100
|
100
|
60
|
111
|
49
|
78
|
|
813.101.0228
|
AG5112SPA-120
|
120
|
60
|
133.2
|
49
|
89
|
|
813.101.0298
|
AG5112SPA-142
|
142
|
68.2
|
157.6
|
49
|
108
|
|
813.101.0238
|
AG5112SPA-150
|
150
|
72.0
|
166.5
|
49
|
105
|
|
813.101.0248
|
AG5112SPA-160
|
160
|
76.8
|
177.6
|
49
|
104
|
|
813.101.0258
|
AG5112SPA-170
|
170
|
81.6
|
188.7
|
49
|
108
|
|
813.101.0268
|
AG5112SPA-180
|
180
|
86.4
|
199.8
|
49
|
144
|
Description of UL NOVEC1230 Fire Suppression System
FK-5-1-12 is a clean, safe fire fighting agent for use in total flooding automatic extinguishing systems. It is intended as a long term replacement for Halons, HFCs, and HCFCs, whilst maintaining the excellent fire suppression properties of them, has none of the environmental problems. Storage and distribution requirements are similar to Halon and the majority of system components are identical. However, FK-5-1-12 is not a direct replacement for existing Halon 1301, HFCs and HCFCs installations due to the difference in agent quantity and discharge characteristics. The minimum FK-5-1-12 design concentration for Class A hazard is 4.5%, for Class B hazard is 5.85%, and for Class C hazard is 4.5%.

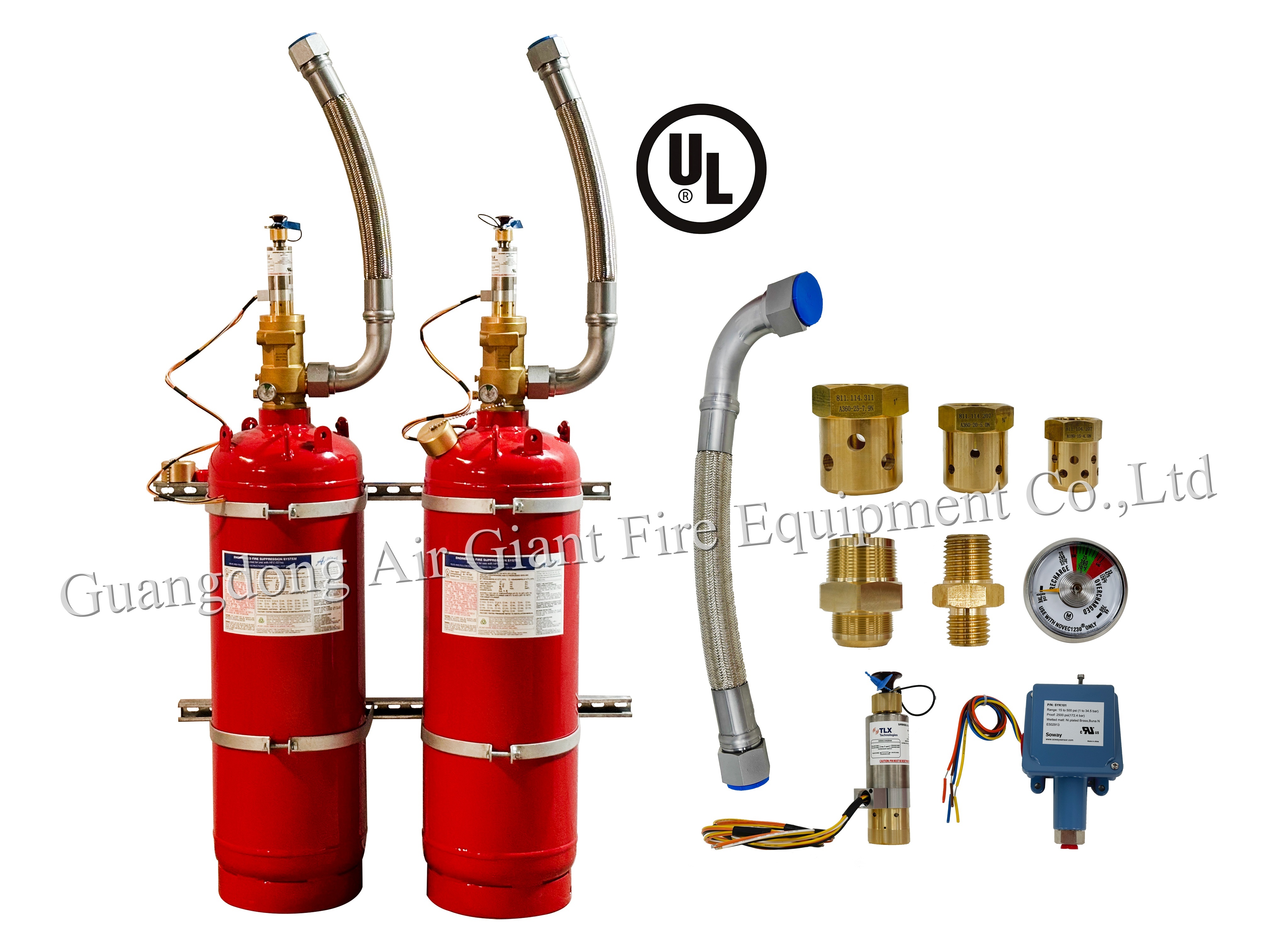

Components of UL NOVEC1230 Fire Suppression System
|
No.
|
Part Name
|
No.
|
Part Name
|
|
1
|
Cylinder
|
8
|
Manifold Check Valve
|
|
2
|
Mounting Bracket
|
9
|
Manifold
|
|
3
|
Fix Steel Channel
|
10
|
Pilot Hose
|
|
4
|
Container Valve
|
11
|
Manifold Safety Valve
|
|
5
|
Bleed Valve
|
12
|
Discharge Pressure Switch
|
|
6
|
Pneumatic Actuator
|
13
|
Electrical Actuator
|
|
7
|
Discharge Hose
|
14
|
Nozzle
|
Features of UL NOVEC1230 Fire Suppression System
1.The low concentration of FK-5-1-12 required means less visual obscurity and minimal risk to personnel.
2.Maximum safety for personnel due to low toxicity.
3.Most effective when used with automatic detection to introduce FK-5-1-12 rapidly.
4.The ability to prevent re-ignition as long as concentration levels are maintained.
5.Colorless, with low odor with no particulate or oily residue allowing for minimal business disruption after a discharge.
6.Space saving, quantity of FK-5-1-12 fluid needed to suppress fires typically required minimal cylinders, thus minimal space required.
Application of UL NOVEC1230 Fire Suppression System
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packages of UL NOVEC1230 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
