Enclosed Flooding Novec1230 Fire Suppression System Without Pollution For Archive

Enclosed Flooding Novec1230 Fire Suppression System Without Pollution For Archive

Description

Perfluorohexanone (Novec1230) is stored in liquid form, but vaporized immediately after being ejected, completely submerged in the protected space. Novec 1230 is a clear, colorless and tasteless detergent and an effective substitute for halon gas. The area where electronic equipment works and irreplaceable high-value assets are located. For example, museums, banks, clean rooms, hospitals, etc., using water as fire extinguishing agent will have the same destructive effect as the fire itself. But Novec 1230 did it.

The ozone depletion potential (ODP) of Novec 1230 is zero, the global warming potential (GWP) is one, and its life in the atmosphere is only five days, which makes Novec 1230 the cleanest and most environmentally friendly chemical fire extinguishing agent at present.

Components

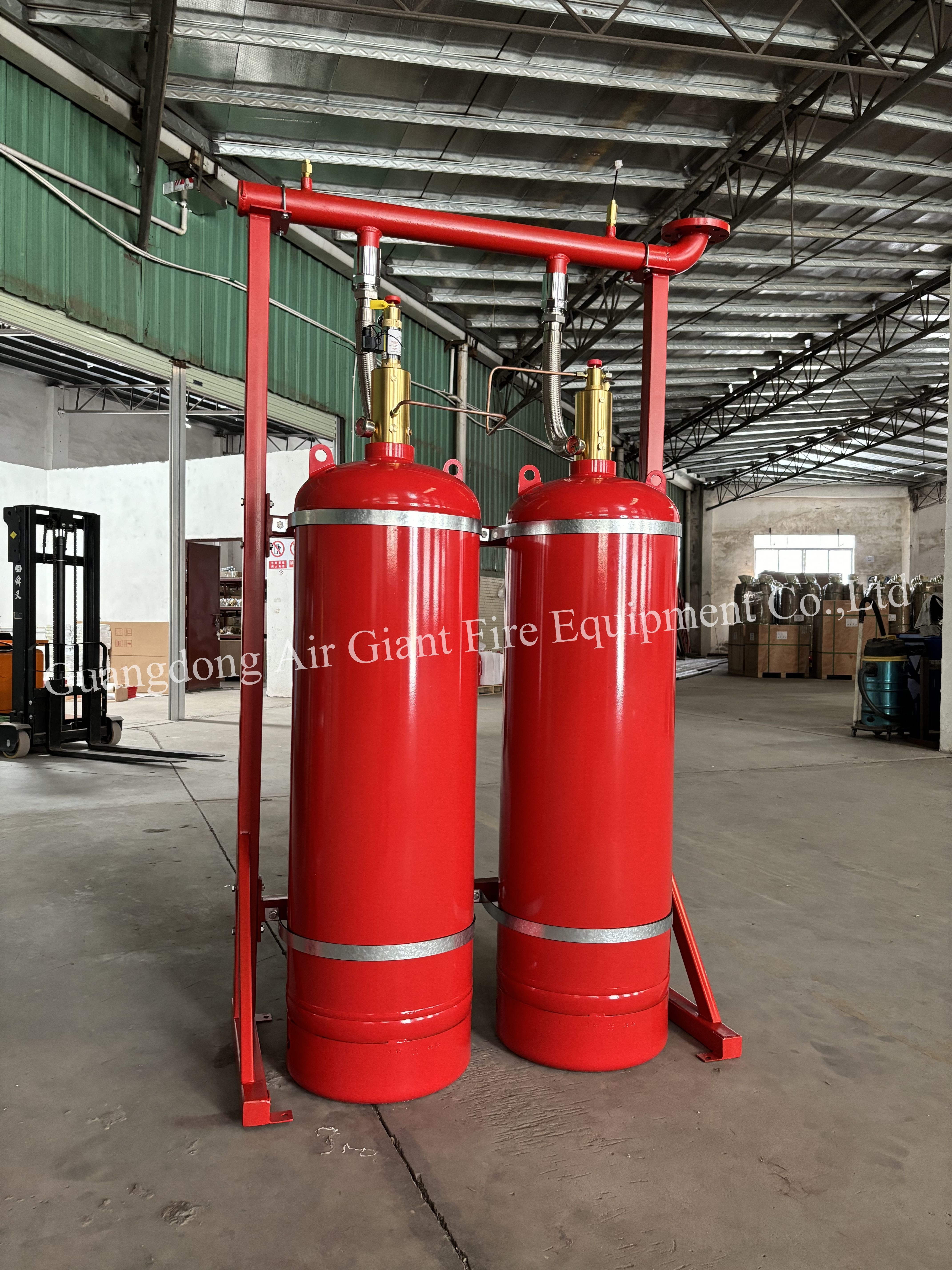

Pipe network Novec1230 fire suppression device is composed of the follow-up components: Novec1230 agent, Novec1230 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.

Working Principle


Here is the illustration of working principle to whole system.



Application


The pipe network type Novec1230 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:

- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories


Advantages

This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type Novec1230 fire suppression system. Besides, here is going to list out the advantages of this system.

1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.

2/ Easy installation. A few components and an easy structure make the system install easily.

3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.


Packages

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
