Automatic Novec1230 Gas System Without Pollution For Storage Room

Automatic Novec1230 Gas System Without Pollution For Storage Room

Description

The molecular formula of perfluorohexanone Novec1230 is CE3CF2C (O) CF (CE3) 2, and the relative molecular weight is 316.04. It is a clear, colorless, slightly odorous, and easily gasified liquid fire extinguishing agent at room temperature, which is not a dry hazardous substance and does not leave residue after release. The fire extinguishing agent is neither dry HFC nor inert gas. It is a new halon substitute and has made breakthrough progress in halon substitute field.

Novec1230 gas fire extinguishing agent does not contain bromine and chlorine elements, and does not damage the body oxygen layer after fire extinguishing, and its body oxygen consumption potential value is zero. At the same time, more importantly, unlike hydrofluorocarbon fire extinguishing agent, Novec1230 has a very low greenhouse effect potential value, GWP=1 is equivalent to CO2, and Novec1230 has a short life in the atmosphere, only 3-5 days, so it fundamentally solves the environmental pollution caused by halon fire extinguishing agent and hydrofluorocarbon fire extinguishing agent.

Novec1230 is environmentally friendly, safe for personnel, non-conductive, does not leave residue after fire extinguishing, does not damage equipment, and has excellent fire extinguishing performance. Therefore, it is a green environmental protection fire extinguishing agent designated by its name and its application range is wide.

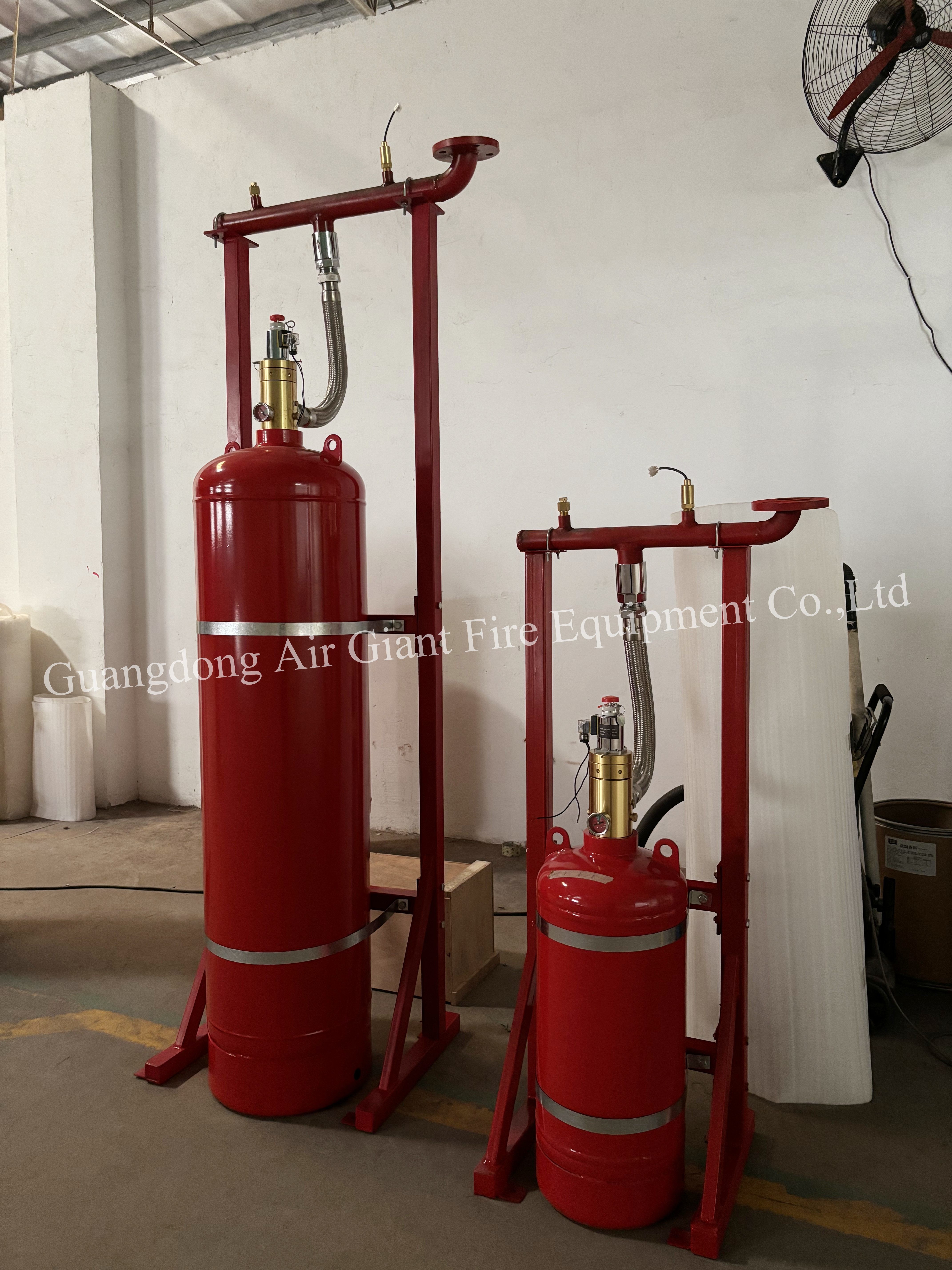

Components

Actually, a complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:

1/ Novec1230 cylinder

2/ Container valve

3/ Solenoid actuator

4/ Flexible hose

5/ Liquid flow check valve

6/ Cylinder frame

7/ Manifold

8/ Safety valve

9/ Pressure switch

Working Principle


Here is the illustration of working principle to whole system.



Application


Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.


Advantages

There are a lot of advantages of the single zone Novec1230 fire suppression system compared to other fire suppression system.

1/ It is the single zone Novec1230 fire suppression system that can protect the largest volume among the Novec1230 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.

2/ Using single zone Novec1230 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.

3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.

4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.


Packages

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
