UL Certification Automatic FM200 Fire Suppression System Without Pollution
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: AG227SP-16.6;AG227SP-28.3;AG227SP-40;AG227SP-49;AG227SP-52;AG227SP-50;AG227SP-60;AG227SP-70;AG227SP-80;AG227SP-90;AG227SP-100;AG227SP-120;AG227SP-150;AG227SP-103;AG227SP-147;AG227SP-153;AG227SP-160;AG227SP-170
Volumn(L): 16.6;28.3;40;49;52;50;60;70;80;90;100;103;120;147;150;153;160;170
Working Pressure: 2.5Mpa;4.2Mpa
Start Mode: Manual And Electromagnetic Start
Color: Red
System Type: Single Bottle And Single Area; Multi Bottle Single Zone And Multi Bottle Multi Zone
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: UL(Urldorwri1er Laboratories Irlc);TPED;GB;DOT
Model Number: AG227SP-16.6;AG227SP-28.3;AG227SP-40;AG227SP-49;AG227SP-52;AG227SP-50;AG227SP-60;AG227SP-70;AG227SP-80;AG227SP-90;AG227SP-100;AG227SP-120;AG227SP-150;AG227SP-103;AG227SP-147;AG227SP-153;AG227SP-160;AG227SP-170
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

UL Certification Automatic FM200 Fire Suppression System Without Pollution



Description of UL FM200 Fire Suppression System



HFC-227ea (FM200) is a clean gas fire extinguishing agent that does not contain particulate matter or oily residue. It is used on precision electronic equipment and has no residue or oily sediment. It can be removed from protected spaces through ventilation.

HFC-227ea (FM200) has thermal and chemical stability, and its atmospheric retention time is about 36.5 years. It is not a substance that will persist for a long time after release.

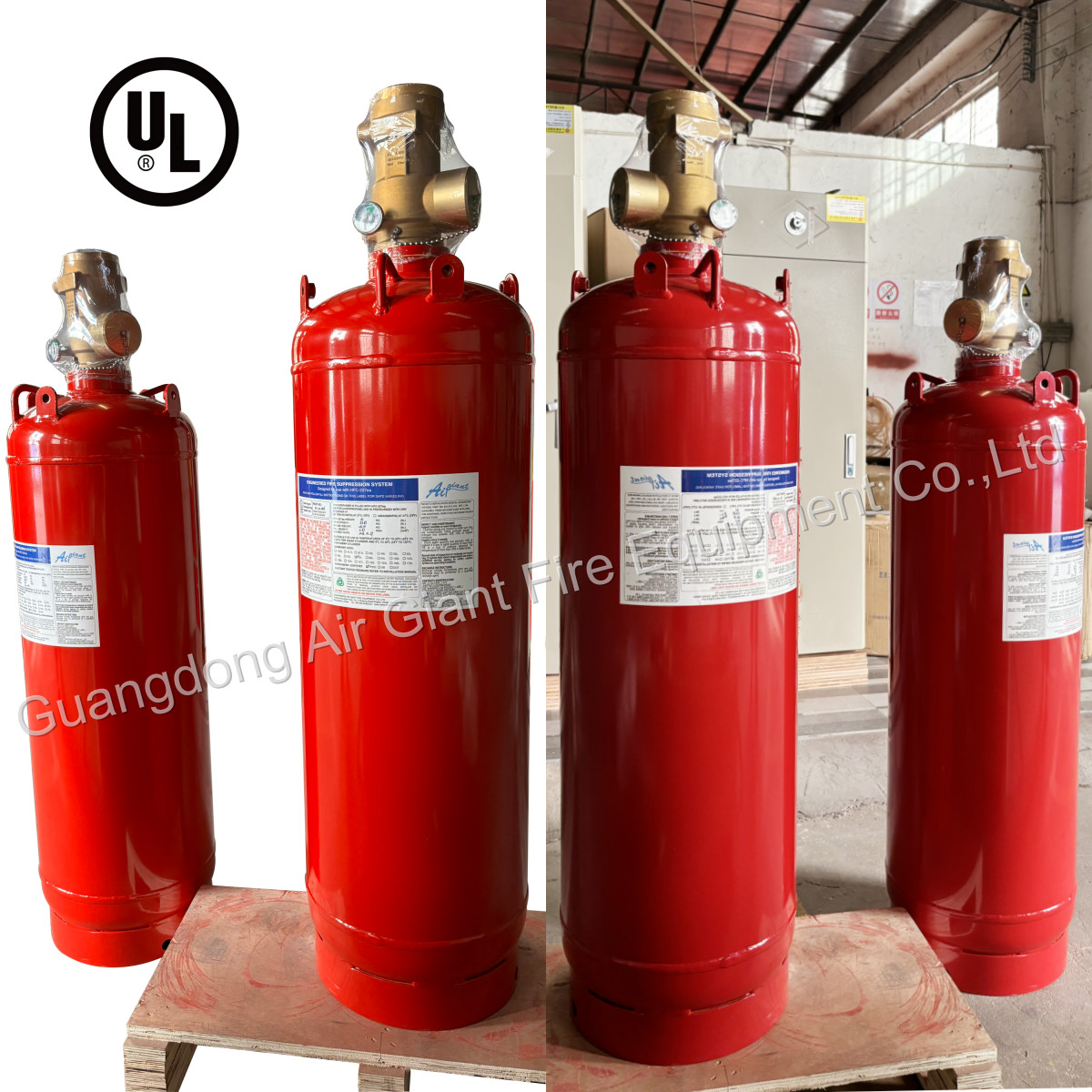

UL Certification Automatic FM200 Fire Suppression System Without Pollution 0



Attributes of UL GB series cylinders





Material

HP345

C: ≤0.20%

Mn: ≤1.50%

Si: ≤0.35%

P: ≤0.025%

S: ≤0.015%

Al((Acid solubility)): ≥0.015

Working pressure 53 bar
Air tightness test pressure 80 bar
Working temperature range 0 °C ~ 50 °C
Operating temperature range Red polyester powder spraying
Surface Paint GB







Features of UL FM200 Fire Suppression System



1. The required concentration is low, which has little visual impact on on-site personnel and reduces personnel risk.

2. The system has a relatively low usage, which can minimize over-voltage in the protection zone and maintain the structural safety of the protection zone.

3. Low toxicity and relatively safe for personnel.

4. Short spraying time and fast extinguishing speed are beneficial for reducing fire losses.

5. As long as the concentration level is maintained, it can effectively prevent re-ignition.



UL Certification Automatic FM200 Fire Suppression System Without Pollution 1





Application of UL FM200 Fire Suppression System



Fire suppression system HFC-227ea can be used in normal commercial and industrial settings.

Typical areas that can be protected by this system include:

  • Bank vault
  • Laboratory
  • Rare Book Library
  • Electronic data room
  • Telecom switching room
  • Studio
  • Communication Center
  • Transformer room and distribution room
  • Electrical control room
  • Auxiliary power room
  • Combustible liquid storage room
  • Computer room



Packages of UL FM200 Fire Suppression System



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



UL Certification Automatic FM200 Fire Suppression System Without Pollution 2
