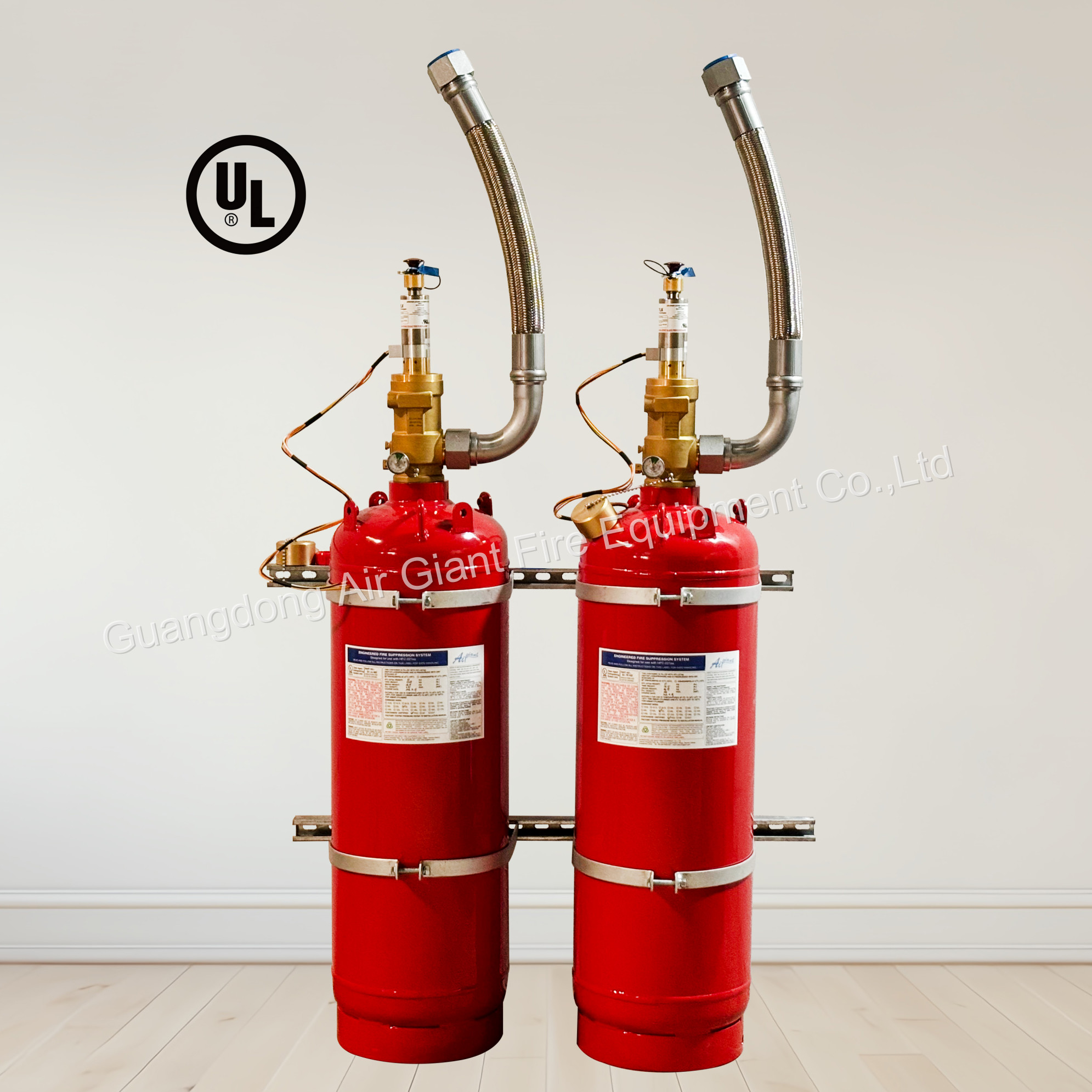

High-Quality Automatic FM200 Fire Suppression System Supplier With UL Certification
Description of UL FM200 Fire Suppression System
HFC-227ea (FM200) gas fire extinguishing device usually includes components such as fire extinguishing agent cylinder group (fire extinguishing agent steel cylinder, cylinder head valve), starter (gas starter, electromagnetic starter, manual starter), release hose, one-way valve, low discharge high seal valve, manifold, manifold safety valve, selection valve, drive cylinder group, release pressure switch, nozzle, fire extinguishing agent delivery pipeline, etc. HFC-227ea (FM200) gas fire extinguishing devices can be divided into single zone systems and multi zone systems based on the number of protected areas, namely unit independent systems and combined distribution systems.
For a single zone system, after receiving a command from the gas fire extinguishing control panel, the electromagnetic starter opens the bottle head valve (i.e. the active bottle), and the active bottle starts to spray. The gas from the active bottle passes through the starting hose, and opens the bottle head valves (i.e. the driven bottle) of other connected fire extinguishing agent bottle groups, and all gas cylinders start to spray. The extinguishing agent is transported along the pipeline to the protected area and sprayed through nozzles.
Attributes of UL TPED series cylinders
|
Material |
P355M C: ≤0.14% Mn: ≤1.60% Si: ≤0.50% P: ≤0.025% S: ≤0.010% |
| Working pressure | 42 bar ( 609 psi ) |
| Air tightness test pressure | 63 bar ( 914 psi ) |
| Burst pressure | ≥ 126 bar ( 1827 psi ) |
| Operating temperature range | -20 °C ~ 65 °C |
| Surface Paint | Red polyester powder spraying |
| Certification | TPED |
Features of UL FM200 Fire Suppression System
1. Good fire extinguishing effect: Heptafluoropropane gas has efficient fire extinguishing performance, which can quickly suppress the fire and effectively control the fire.
2. Environmentally friendly: Heptafluoropropane gas will not cause toxicity or irritation to the human body, and will not cause damage to equipment and the environment.
3. Easy to operate: The heptafluoropropane gas fire extinguishing system can achieve automatic control and is simple and convenient to operate.
4. Wide fire extinguishing range: Heptafluoropropane gas can cover the entire fire extinguishing area in a short period of time and can be used for extinguishing large equipment and buildings.
Application of UL FM200 Fire Suppression System
Fire suppression system HFC-227ea can be used in normal commercial and industrial settings.
Typical areas that can be protected by this system include:
Packages of UL FM200 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
