Enclosed Flooding HFC227ea Fire Extinguishing System Without Pollution For Power Room
HFC-227ea (also known as Fm200) gas is a kind of colorless, odorless and clean fire agent used widely all around the world.Compared to other kinds of fire agents like CO2 and halon, HFC-227ea is more environmentally friendly for it will not hurt the zone layer but others will. HFC-277ea gas has ozone depleting possibility of zero.
What’s more, HFC-227ea has all advantages that other fire agents have, like nontoxic, noncorrosive and electrical insulated so that HFC-227ea gas is considered as the optimum substitute to halon series.
HFC-227ea can put out fire efficiently in 10s without leaving any residues, so users do not need more money and time to clean up the places after this HFC-227ea system is activated.

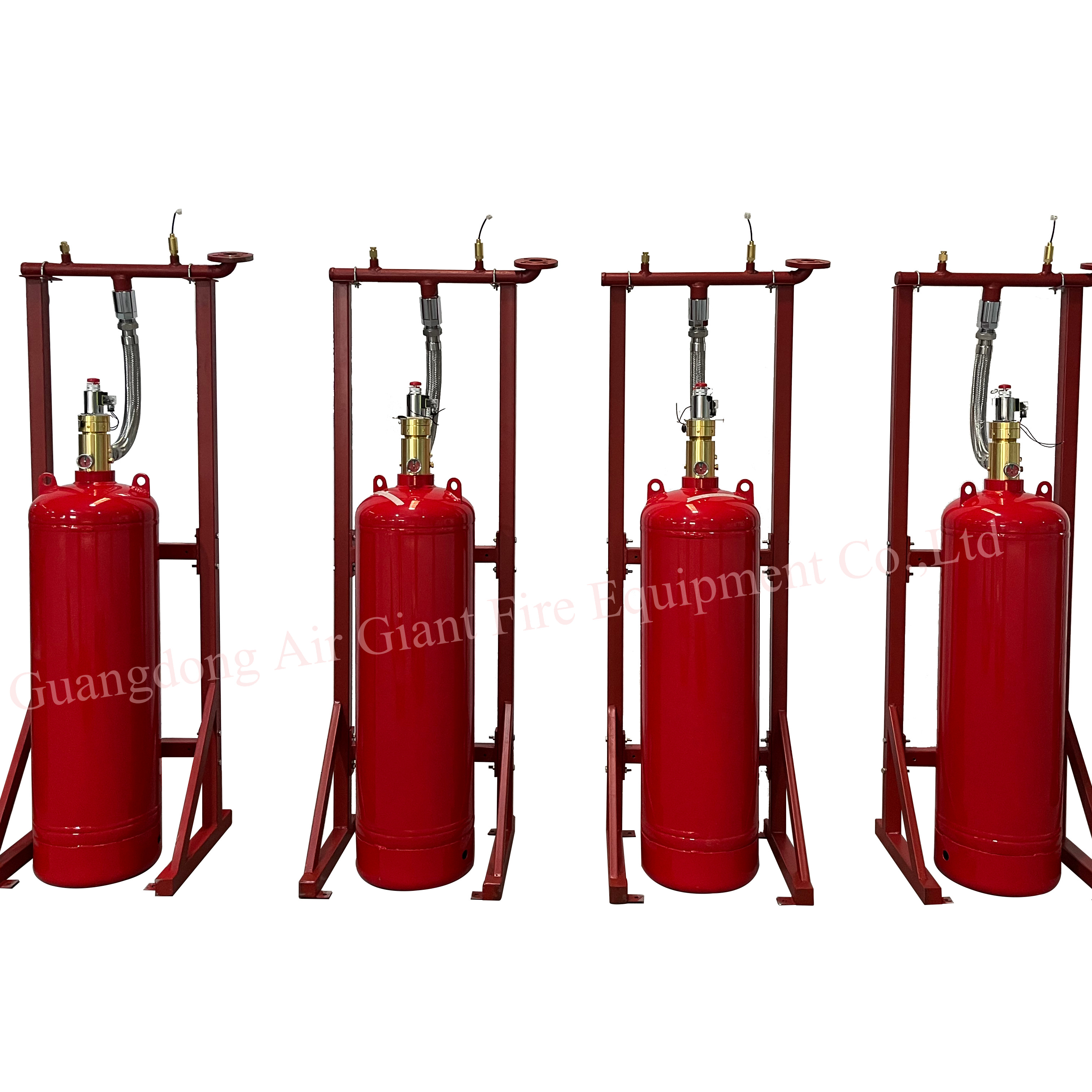

Components
A complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:
1/ HFC227ea cylinder
2/ Container valve
3/ Solenoid actuator
4/ Flexible hose
5/ Liquid flow check valve
6/ Cylinder frame
7/ Manifold
8/ Safety valve
9/ Pressure switch
Working principle:
The HFC227ea Fire Suppression System is also highly effective at extinguishing fires. It works by interrupting the chemical chain reaction that occurs during a fire, preventing the fire from spreading and extinguishing it quickly. The system can extinguish fires within 10 seconds, providing a rapid response that can help to minimize damage and downtime.
Here is the illustration of working principle to whole system
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Advantages
The HFC227ea Fire Suppression System is one of the most advanced fire suppression systems available today. It is designed to provide a fast and effective response to fire emergencies while minimizing damage to critical assets and preserving the safety of people and the environment.
One of the key advantages of the HFC227ea Fire Suppression System is its chemical and physical properties. The chemical agent, HFC-227ea, is a colorless, odorless, and electrically non-conductive gas that is safe for use in occupied spaces. It is also non-corrosive, non-toxic, and does not leave any residue or oily deposits after use. This makes it an ideal choice for use in sensitive areas such as data centers and museums.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
