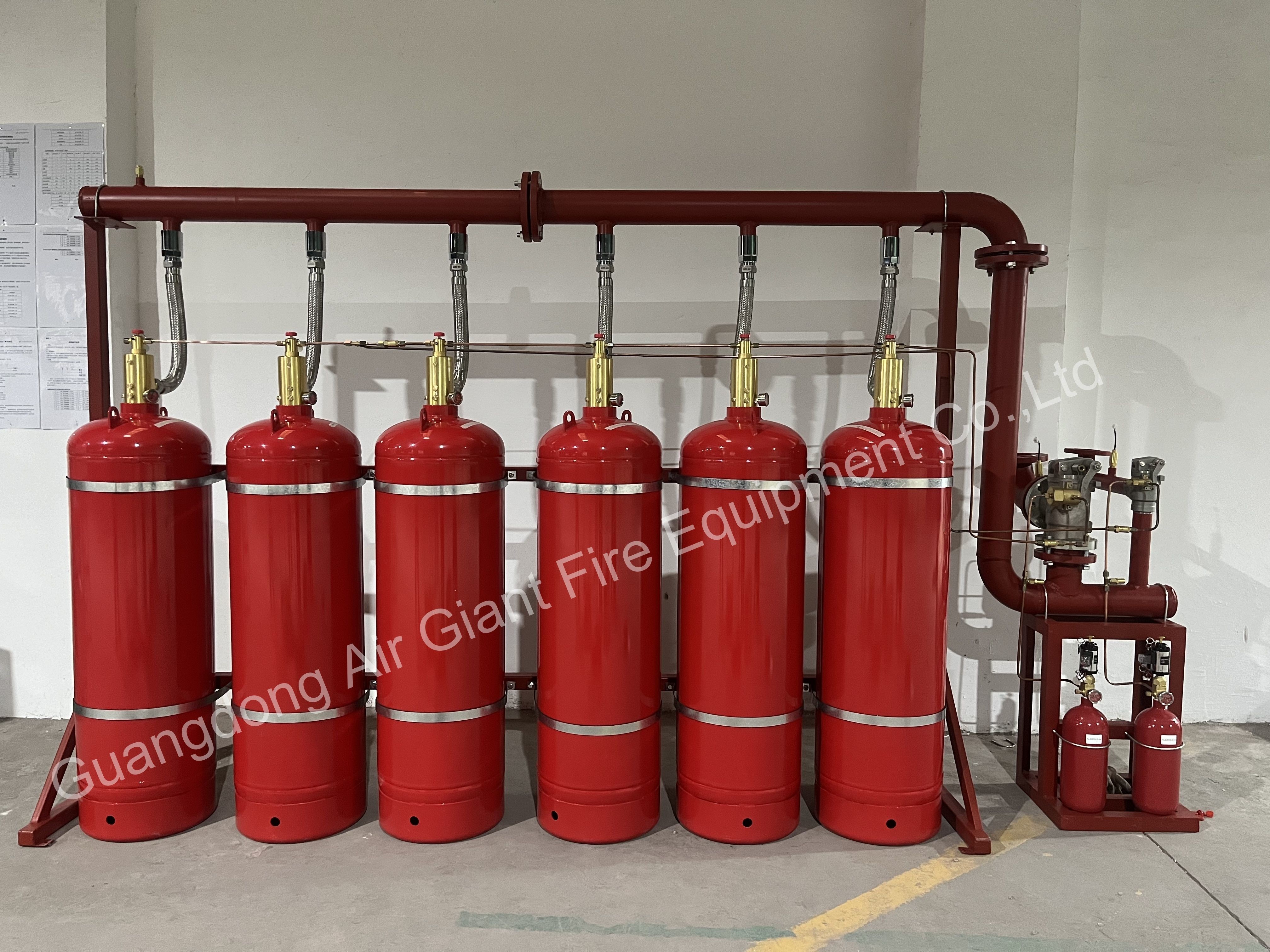

Non-Conductive HFC227ea Fire Suppression System For Battery Room
HFC-227ea (also known as Fm200) gas is a kind of colorless, odorless and clean fire agent used widely all around the world.Compared to other kinds of fire agents like CO2 and halon, HFC-227ea is more environmentally friendly for it will not hurt the zone layer but others will. HFC-277ea gas has ozone depleting possibility of zero.
What’s more, HFC-227ea has all advantages that other fire agents have, like nontoxic, noncorrosive and electrical insulated so that HFC-227ea gas is considered as the optimum substitute to halon series.
HFC-227ea can put out fire efficiently in 10s without leaving any residues, so users do not need more money and time to clean up the places after this HFC-227ea system is activated.
Components
The components of an FM200 (Heptafluoropropane, HFC-227ea) Fire Suppression System can vary depending on the specific application and design, but generally include the following:
1.FM200 (Heptafluoropropane, HFC-227ea) Storage Containers
2.Distribution Piping:
3.Nozzles
4.Detection and Control System
5.Alarms and Warning Devices
6.Ventilation
Working principle
The FM200 Fire Suppression System is also highly effective at extinguishing fires. It works by interrupting the chemical chain reaction that occurs during a fire, preventing the fire from spreading and extinguishing it quickly. The system can extinguish fires within 10 seconds, providing a rapid response that can help to minimize damage and downtime.
Here is the illustration of working principle to whole system.
Application
As its name says, the single zone pipe network FM200 (Heptafluoropropane, HFC-227ea) fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network FM200 (Heptafluoropropane, HFC-227ea) fire suppression system can be used to protect some large and also significant places, such as the followings:
- Computer rooms
- Telecommunication center
- Facilities underground
- Offshore oil extraction
- Library
- Data and paper archives
- Valuable article storage
- Power generator storage room
Advantages
The FM200 Fire Suppression System is a highly advanced fire suppression system that offers a range of advantages over other types of fire suppression systems. Here are some of the key advantages of the FM200 Fire Suppression System:
1.Fast and Effective: The FM200 Fire Suppression System is designed to extinguish fires quickly and effectively. It can suppress fires within 10 seconds, providing a rapid response that can help to minimize damage and downtime.
2.Safe for Occupied Spaces: The HFC-227ea agent used in the FM200 Fire Suppression System is safe for use in occupied spaces. It is non-toxic and does not leave any residue or oily deposits after use. This makes it an ideal choice for use in sensitive areas such as data centers, museums, and hospitals.
3.Environmentally Friendly: The HFC-227ea agent used in the FM200 Fire Suppression System is a clean and safe alternative to traditional fire suppression agents such as halon and CO2. It has a low global warming potential and ozone depletion potential, making it an environmentally-friendly choice for fire protection.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
