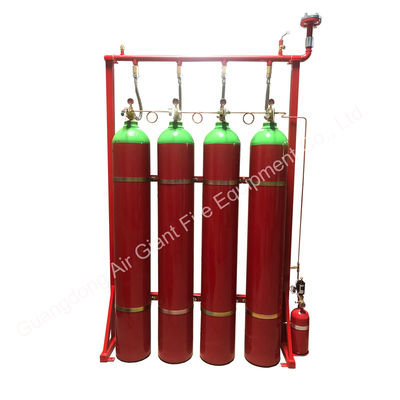

Argonite IG100 Inert Gas Fire Suppression System With Flame Detection 200-300 Bar 10-50°C

Argonite IG100 Inert Gas Fire Suppression System With Flame Detection 200-300 Bar 10-50°C

IG-100 uses Nitrogen for a clean, safe and 100% ecological extinguishing. This gas is widely used in variety of extinguishing systems due to its excellent pressurization conditions.

In this case it complies with equal smothering efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a percentage of oxygen suitable for occupied areas. Because of this feature, people can be protected where there is the possibility if they are in the enclosure area at the time of the fire, ensuring their safe evacuation both in terms of the level of oxygen in the room, and the absence of chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during the evacuation.

It is highly recommended for class A, B and C fires. The system operates by total flooding of the room, ensuring discharge in or less than 10 seconds with the safety conditions mentioned above. this makes it possible to adapt the quantity of extinguishing agent required, to the storage space available for the cylinders.

The system is optimized for the worst case conditions, all components are certified to ensure the strictest performance. These are necessary for the storage, detection, release and discharge of the agent at the right moment.

Parameters

Components

• Storage cylinder
• Frame
• Clamp
• Gas driving actuator
• Container valve
• Flexible hose
• Safety valve
• Liquid flow check valve
• Manifold
• Reducing devise
• Pilot tube
• Driving cylinder
• Container valve for driving cylinder
• Solenoid actuator
• Relief valve
• Gas flow check valve
• Select valve
• Pressure switch
• Nozzle
