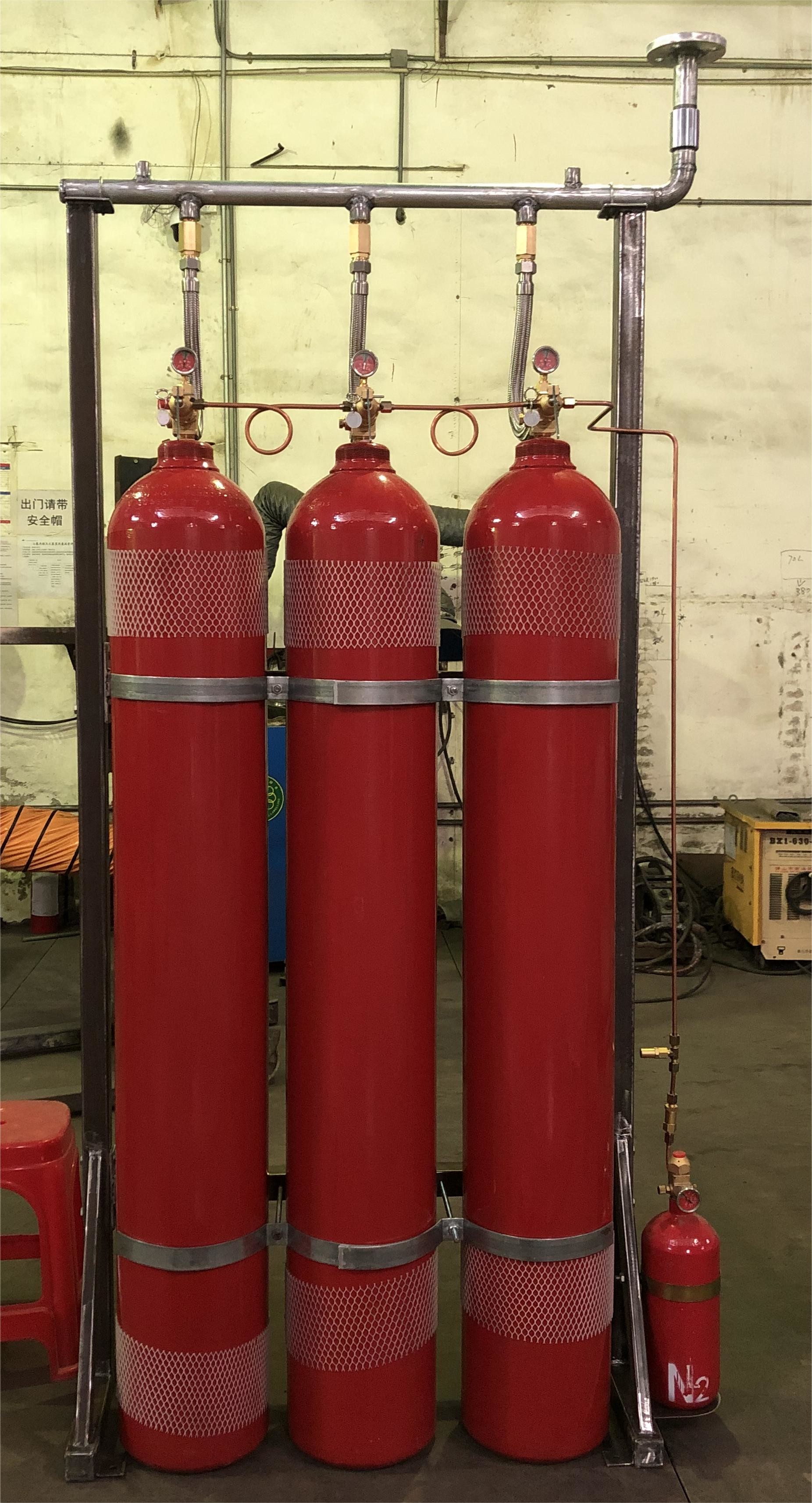

Insulated Inert Gas Inergen IG541 Fire Extinguishing System Without Residue
IG-541 Inergen gaseous is an environmentally friendly extinguishing agent, consisting of gases which are already present naturally in the earth's atmosphere. IG-541 is an inert gas, which means that it takes no part in the combustion process. IG-541 contains no liquid, is non-toxic and non-flammable.
IG-541 Inergen is a composite gas (52% Nitrogen, 40% Argon, 8% CO2) which is mixed and stored at a pressure of 300 bar. It is electrically non-conductive, which leaves no residue. At the correct design concentration, it is suitable for the protection of occupied areas.
IG-541 is a very effective fire extinguishing agent that can be used to protect a wide range of applications. It is suitable for class A, B, C, D and E fires, including risks with live electrical equipment. IG-541 extinguishing method is based on oxygen depletion.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMH20/80 | QMH30/80 |
| 3 | Capacity | 80Ltr | 80Ltr |
| 4 | Filling Capacity of Gas | 23.9kg | 33.2kg |
| 5 | Outside Diameter of Cylinder | Φ286mm | Φ286mm |
| 6 | Height of Cylinder | 1910mm | 1910mm |
| 7 | Spraying Time | ≤120s | ≤120s |
| 8 | Filling Rate | 0.299kg/L | 0.415kg/L |
| 9 | Power | DC24V/1.6A | DC24V/1.6A |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | temperature: -20~50℃ | temperature: -20~50℃ |
| 12 | Max Working Pressure | 23.2MPa | 36.6MPa |
| 13 | Min Working Pressure | 18MPa | 27MPa |
Features and benefits
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
