100L FM200 fire suppression system
FM200(HFC-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Parameters
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity |
40L, 70L, 90L, 100L, 120L, 150L, 180L 70L×2,90L×2,100L×2,120L×2,150L×2 |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
GQQ70×2/2.5, GQQ90×2/2.5, GQQ100×2/2.5, GQQ120×2/2.5, GQQ150×2/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | ≤0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Cabinet Size
| Model | Filling capacity(kg) | Storage pressure(MPa, 20℃) | Injection time (s) | Temperature(℃) | Dimension(mm) |
| GQQ40/ 2.5 | 40 | 2.5 | <10 | 0～50 | 500×450×1450 |
| GQQ70/ 2.5 | 70 | 2.5 | <10 | 0～50 | 500×450×1450 |
| GQQ90/ 2.5 | 90 | 2.5 | <10 | 0～50 | 500×450×1650 |
| GQQ100/ 2.5 | 100 | 2.5 | <10 | 0～50 | 500×450×1650 |
| GQQ120/ 2.5 | 120 | 2.5 | <10 | 0～50 | 550×550×1900 |
| GQQ150/ 2.5 | 150 | 2.5 | <10 | 0～50 | 550×550×1900 |
| GQQ180/ 2.5 | 180 | 2.5 | <10 | 0～50 | 600×550×2150 |
| GQQ70×2/ 2.5 | 140 | 2.5 | <10 | 0～50 | 1100×450×1450 |
| GQQ90×2/ 2.5 | 180 | 2.5 | <10 | 0～50 | 1100×450×1650 |
| GQQ100×2/ 2.5 | 200 | 2.5 | <10 | 0～50 | 1100×450×1650 |
| GQQ120×2/ 2.5 | 240 | 2.5 | <10 | 0～50 | 1100×550×1900 |
| GQQ150×2/ 2.5 | 300 | 2.5 | <10 | 0～50 | 1100×550×1900 |
Compositions:
The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.

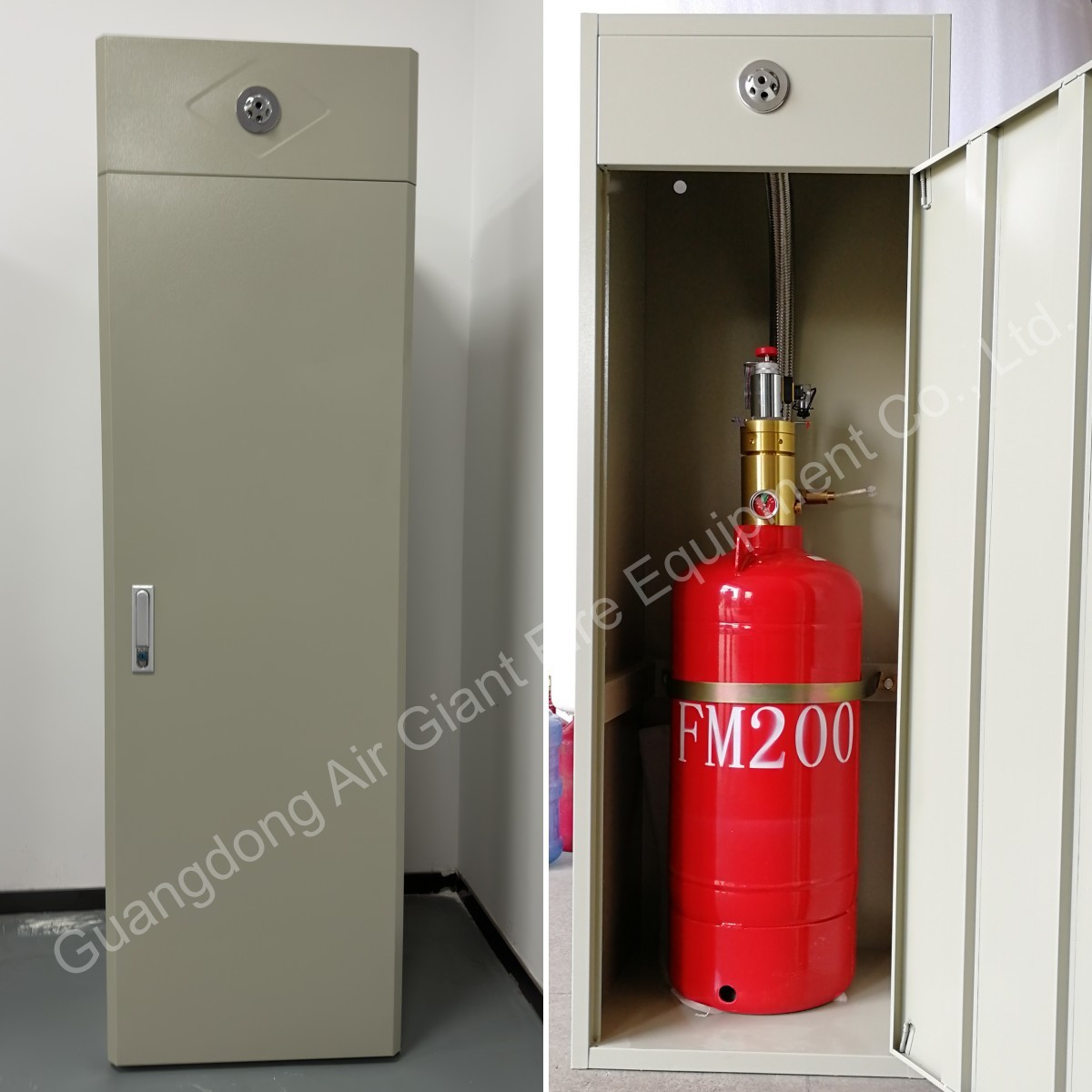

The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.
Working principle
Here is the illustration of working principle to whole system
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room,
generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room,
control center, library, archives, treasure trove of cultural relics, etc.
Competitive Advantage
Cabinet fm200 system: management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.
1. Effective firefighting in relatively small region
2. Simple assembly of device without pipeline
No extra space to store device
Packages
We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
