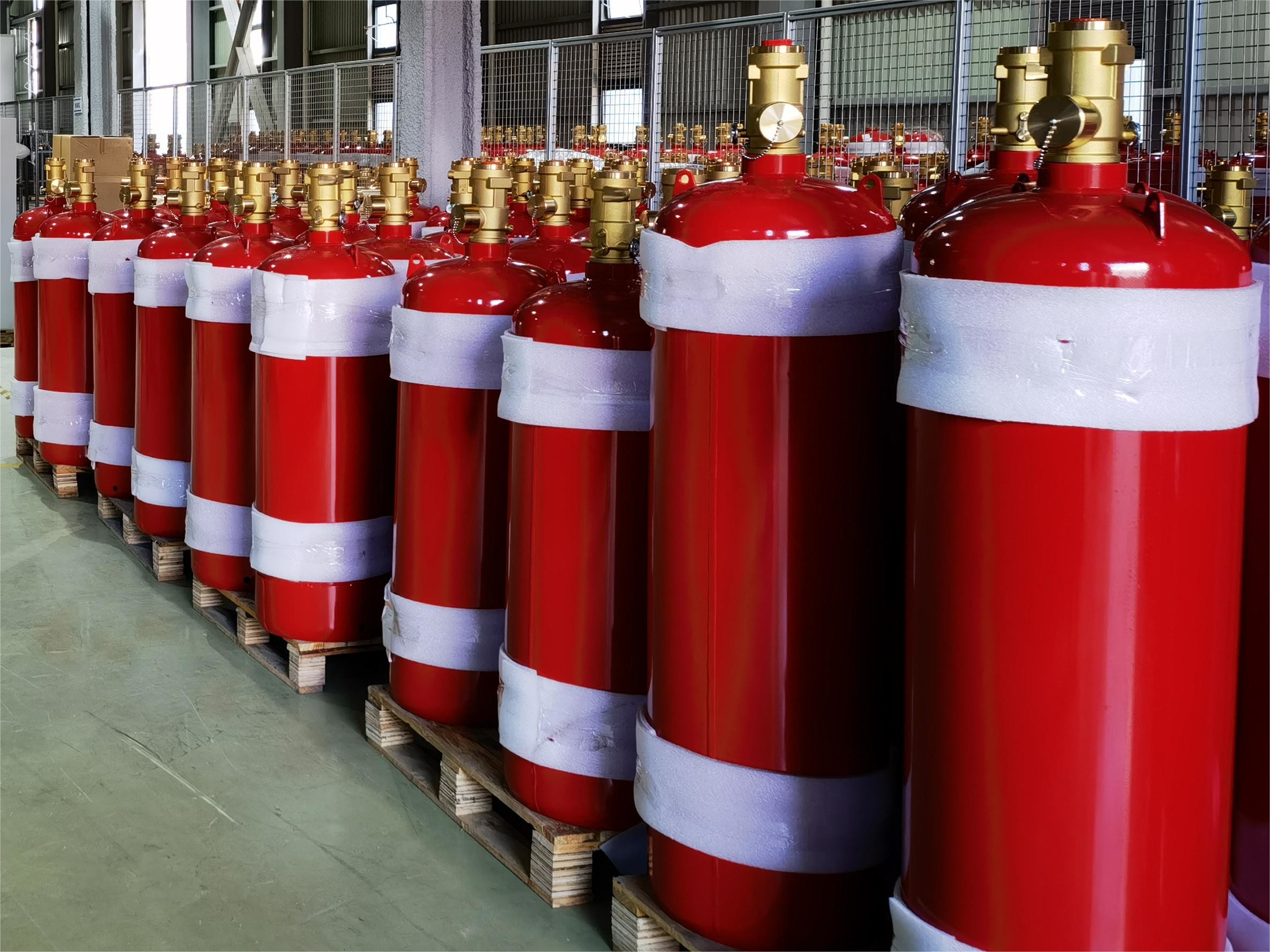

UL Environment Friendly HFC227ea Fire Extinguisher System Without Residue In UPS Room
Description of UL FM200 Fire Suppression System
The HFC-227EA automatic fire extinguishing system is an excellent fire extinguishing system because it responds quickly and does not produce any toxic consequences. Its design purpose is to extinguish Class A, B, and C fires. This type of system is very safe and can be discharged around humans without worrying about harmful chemicals in the discharge agent.
Attributes of UL DOT series cylinders
Model No. | Nominal pressure (bar) | Nominal volume(L) | Filling volume (kg) |
Caliber (mm) |
Weight (kg) |
|
Min. | Max. | |||||
AG227SP-25-49S | 25 | 49 | 23.5 | 54.9 | 49 | 48 |
AG227SP-25-52S | 25 | 52 | 25.0 | 58.2 | 49 | 56 |
AG227SP-25-62S | 25 | 62 | 29.8 | 69.4 | 49 | 53 |
AG227SP-25-80S | 25 | 80 | 38.4 | 89.6 | 49 | 65 |
AG227SP-25-103S | 25 | 103 | 49.4 | 115.4 | 49 | 82 |
AG227SP-25-106S | 25 | 106 | 50.9 | 118.7 | 49 | 84 |
AG227SP-25-147S | 25 | 147 | 70.6 | 164.6 | 49 | 105 |
AG227SP-25-153S | 25 | 153 | 73.4 | 171.4 | 49 | 108 |
AG227SP-25-16.7R | 25 | 16.7 | 8.0 | 18.7 | 33 | 21 |
AG227SP-25-28.3R | 25 | 28.3 | 13.6 | 31.7 | 33 | 29 |
AG227SP-25-49R | 25 | 49 | 23.5 | 54.9 | 33 | 42 |
AG227SP-25-52R | 25 | 52 | 25.0 | 58.2 | 33 | 50 |
AG227SP-25-62R | 25 | 62 | 29.8 | 69.4 | 33 | 47 |
Features of UL FM200 Fire Suppression System
Application of UL FM200 Fire Suppression System
Packages of UL FM200 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
