100L FM200 Fire Suppression System Sustainable And Effective Fire Protection

1 set
MOQ
negotiation
Price

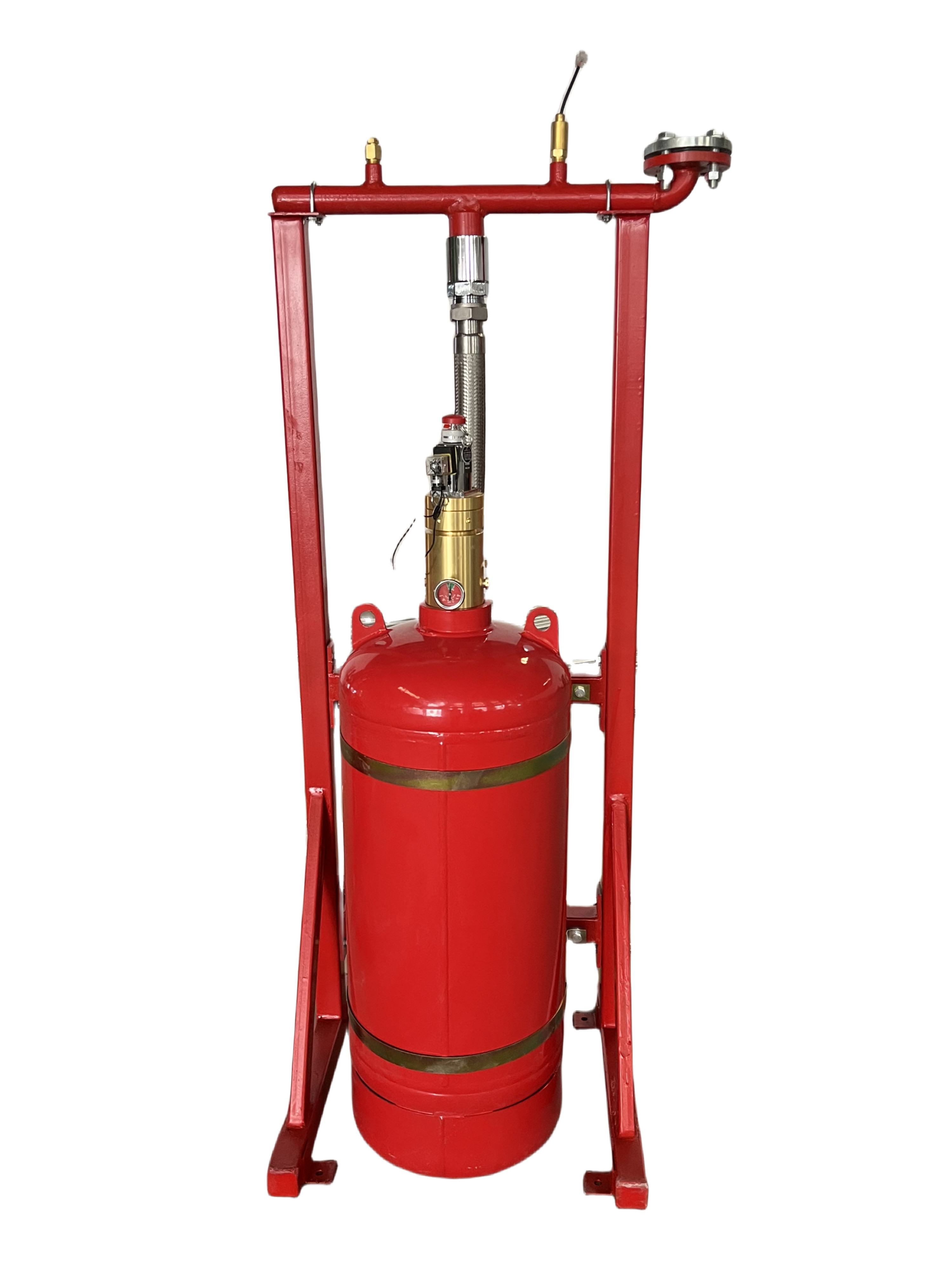

100L FM200 Fire Suppression System Sustainable And Effective Fire Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Storage Pressure: 4.2MPa
Spraying Time: ≤10s
Filling Density: ≤950kg/m3
Nominal Pressure: 5.6MPa
Test Pressure: 8.4MPa
Working Power: DC 24V 1.6A
Working Temperature: 0℃~50℃
Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³
Starting Mode: Automatic, Electrical Manual, Mechanical Manual
Cylinder Volume: 40L、70L、100L、120L、150L、180L
High Light:

100L FM200 Fire Suppression System

,

Sustainable FM200 Fire Suppression System

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

Sustainable and Effective Fire Protection with FM200 Fire Suppression System



Introduction



The FM200 Fire Suppression System is a state-of-the-art fire suppression system that uses a clean and safe chemical agent, HFC-227ea (1,1,1,2,3,3,3-Heptafluoropropane), to extinguish fires quickly and effectively. The system is designed to provide a rapid response to fire emergencies while minimizing damage to critical assets and preserving the safety of people and the environment.



The FM200 Fire Suppression System works by interrupting the chemical chain reaction that occurs during a fire, preventing the fire from spreading and extinguishing it quickly. The system uses a combination of chemical and physical mechanisms to extinguish fires, providing a highly effective and reliable solution for fire protection in critical areas and equipment.





Physical and chemical properties



Chemical Formula: The FM200 Fire Suppression System uses a synthetic, organic compound called heptafluoropropane (HFP) as its active agent. The chemical formula for HFP is C3HF7.



1.Colorless and Odorless: FM200 is a colorless, odorless gas that is difficult to detect without specialized equipment.



2.Non-Corrosive: FM200 is non-corrosive, meaning it does not react with or damage metals, plastics, or other materials commonly found in buildings and equipment.



3.Low Toxicity: FM200 has a low toxicity level, which means it is safe for human occupancy when used in accordance with design and installation guidelines.



4.High Boiling Point: FM200 has a high boiling point of 16.4 °C (61.5 °F), which means it remains in a gaseous state at room temperature and pressure. This property allows it to quickly disperse and distribute throughout an enclosed space to suppress a fire.



5.Non-Conductive: FM200 is non-conductive, which means it does not conduct electricity. This property makes it safe to use in areas where electrical equipment is present.



6.Low Global Warming Potential: FM200 has a low global warming potential (GWP) of 0.02, which is much lower than other commonly used fire suppression agents such as halon.



7.Rapid Extinguishing Action: FM200 can extinguish fires quickly by removing heat from the fire triangle, interrupting the chemical chain reaction, and reducing the concentration of oxygen in the protected space.





Components



The components of an FM200 Fire Suppression System can vary depending on the specific application and design, but generally include the following:



1.FM200 Storage Containers



2.Distribution Piping:



3.Nozzles



4.Detection and Control System



5.Alarms and Warning Devices



6.Ventilation

100L FM200 Fire Suppression System Sustainable And Effective Fire Protection 0





Application



The FM200 Fire Suppression System is suitable for a wide range of applications, from small server rooms to large data centers and industrial facilities. It is also easy to install, maintain, and recharge, making it a cost-effective choice for those seeking a reliable and efficient fire suppression system.



100L FM200 Fire Suppression System Sustainable And Effective Fire Protection 1





Advantages



The FM200 Fire Suppression System is a highly advanced fire suppression system that offers a range of advantages over other types of fire suppression systems. Here are some of the key advantages of the FM200 Fire Suppression System:



1.Fast and Effective: The FM200 Fire Suppression System is designed to extinguish fires quickly and effectively. It can suppress fires within 10 seconds, providing a rapid response that can help to minimize damage and downtime.



2.Safe for Occupied Spaces: The HFC-227ea agent used in the FM200 Fire Suppression System is safe for use in occupied spaces. It is non-toxic and does not leave any residue or oily deposits after use. This makes it an ideal choice for use in sensitive areas such as data centers, museums, and hospitals.



3.Environmentally Friendly: The HFC-227ea agent used in the FM200 Fire Suppression System is a clean and safe alternative to traditional fire suppression agents such as halon and CO2. It has a low global warming potential and ozone depletion potential, making it an environmentally-friendly choice for fire protection.





Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



100L FM200 Fire Suppression System Sustainable And Effective Fire Protection 2
