Name: 800m2 10s Clean Agent Fire Suppression System Fm200 Fire Extinguisher
Brand: Guangdong Air Giant Fire Equipment Co.,Ltd.
SKU: QMQ5.6/90W, QMQ5.6/120W, QMQ5.6/150W, QMQ5.6/180W, QMQ4.2/245W
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Cylinder Volume: 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr

Filling Pressure: 5.6 MPa, 4.2 MPa

Filling Density: ≤1250kg/m³

Pressure Of Adding Pressure: 13.5MPa

Discharge Time: ≤10s

Driving Device Pressure: 6.0MPa(20℃)

Power: DC24V/1.6A

Highlight:

Fire Suppression System Fm200 Fire Extinguisher

10s clean agent fire suppression system fm200

800m2 fm200 fire extinguisher

Basic Infomation

Place of Origin: China

Brand Name: Air Giant

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMQ5.6/90W, QMQ5.6/120W, QMQ5.6/150W, QMQ5.6/180W, QMQ4.2/245W

Payment & Shipping Terms

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 3000 sets per month

Gallery

800m2 10s Clean Agent Fire Suppression System Fm200 Fire Extinguisher

Product Description

800㎡ 10s Automatic FM200 Piston Flow System Without Pollution

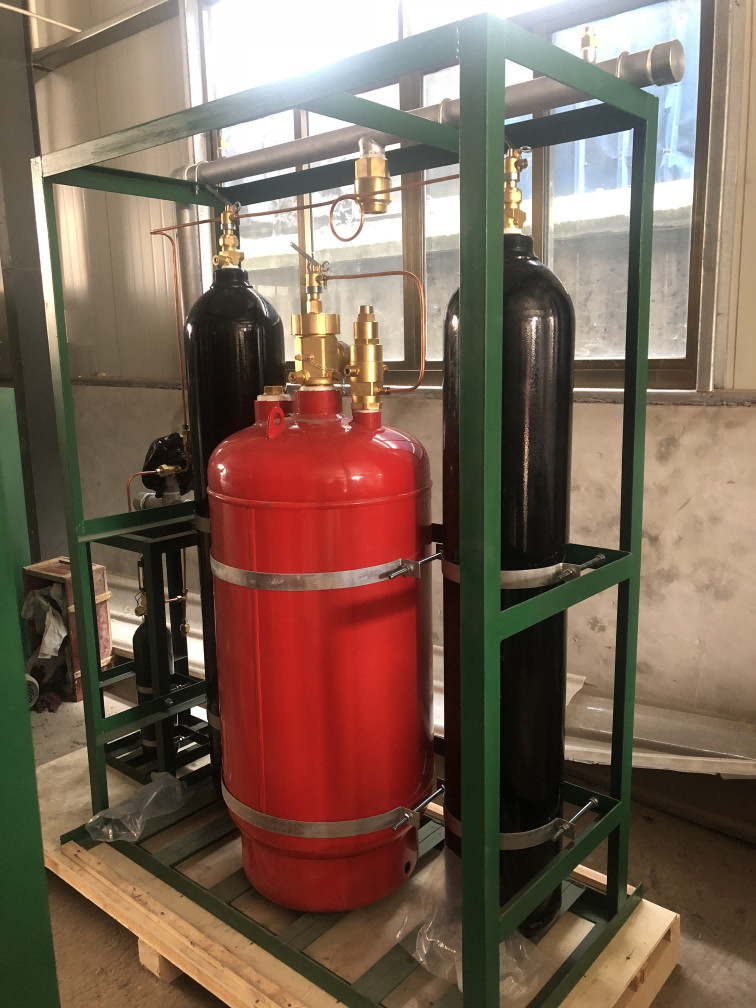

The FM-200 Piston Flow Clean Agent Fire Suppression System is designed to deliver FM-200 agent, which is a safe and environmentally friendly clean agent that has a proven track record for the helping in the protection of people and high value assets. The FM-200 Piston Flow Clean Agent Fire Suppression System is a new technology intended to allow extension of the pipe length in the fire extinguishing system. The system consists of a FM-200 container with agent and a supporting nitrogen container to enhance the discharge of the agent.

Parameters

No.	Name	Specification
1	Device Model	QMQ5.6/90W, QMQ5.6/120W, QMQ5.6/150W, QMQ5.6/180W, QMQ4.2/245W
2	Cylinder Volume	90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3	Filling Capacity of Gas	112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4	Max Working Pressure	8MPa, 5.3MPa
5	Max protected area	Single zone: 800m2
6	Max protected volume	Single zone: 3600m3
7	Spraying Time	≤10s
8	Agent Filling Density	≤1250kg/m3
9	Power	DC24V/1A
10	Pressure of Adding Pressure Cylinder	13.5MPa
11	Pressure of Driving Device	6.0MPa(20℃)
12	Condition of Reserving Room for Container	Temperature: 0~50℃

Competitive Advantage

Proven Technology
Clean, leaves behind no residue
Safe for discharge into occupied spaces
Cost effective engineered system, providing maximum protection
Sustainable technology providing an environmentally-conscientious solution

Application

The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:

- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories

Packages

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
