90Ltr 120Ltr 245Ltr Piston Flow Type Clean Agent Fire Suppression System FM200

1 set
MOQ
negotiation
Price
90Ltr 120Ltr 245Ltr Piston Flow Type Clean Agent Fire Suppression System FM200
Features Gallery Product Description Request A Quote
Features
Specifications
Cylinder Volume: 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
Filling Pressure: 5.6 MPa, 4.2 MPa
Filling Density: ≤1250kg/m³
Pressure Of Adding Pressure: 13.5MPa
Discharge Time: ≤10s
Driving Device Pressure: 6.0MPa(20℃)
Power: DC24V/1.6A
High Light:

90Ltr Clean Agent Fire Suppression System

,

Piston Flow Type clean agent system fm200

,

120Ltr fm 200 clean agent fire suppression system

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMQ5.6/90W, QMQ5.6/120W, QMQ5.6/150W, QMQ5.6/180W, QMQ4.2/245W
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
Product Description

Piston Flow Type FM200 Gas Suppression System



The use of FM200 fire extinguishing agent as a fire suppressant is not prohibited by the montreal protocol. It is a clean agent that belongs to a class of compounds that was introduced specifically to facilitate the phase-out of ozone depleting gases, such as Halon 1301. It is the most widely used of the chemical replacements for Halon 1301. It is an agent that has been used successfully to help protect tens of thousands of high technology facilities in 70 countries around the world.



FM200 gas piston flow type fire suppression systems can be ideal for use in occupied areas. Independent toxicity studies have established that the agent is low in both acute and chronic toxicity with high safety margins between its normal use concentrations and the no observable adverse effect level (NOAEL).





Parameters



No. Name Specification
1 Device Model QMQ5.6/90W, QMQ5.6/120W, QMQ5.6/150W, QMQ5.6/180W, QMQ4.2/245W
2 Cylinder Volume 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3 Filling Capacity of Gas 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4 Max Working Pressure 8MPa, 5.3MPa
5 Max protected area Single zone: 800m2
6 Max protected volume Single zone: 3600m3
7 Spraying Time ≤10s
8 Agent Filling Density ≤1250kg/m3
9 Power DC24V/1A
10 Pressure of Adding Pressure Cylinder 13.5MPa
11 Pressure of Driving Device 6.0MPa(20℃)
12 Condition of Reserving Room for Container Temperature: 0~50℃




System Composition



This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.



Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.



Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

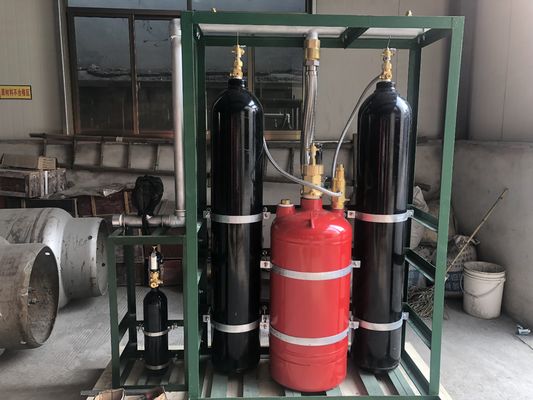

90Ltr 120Ltr 245Ltr Piston Flow Type Clean Agent Fire Suppression System FM200 0





Competitive Advantage

  • Proven Technology
  • Clean, leaves behind no residue
  • Safe for discharge into occupied spaces
  • Cost effective engineered system, providing maximum protection
  • Sustainable technology providing an environmentally-conscientious solution



Application

  1. Data centres
  2. Server rooms
  3. Comms rooms
  4. Electrical distribution rooms
  5. Control rooms
  6. Museums & archives
  7. Laboratories
  8. Anechoic chambers
  9. Marine vessels
  10. Medical records storage
  11. Military
  12. Power generation & power storage
  13. Telecommunications
  14. Transportation
  15. Paint storage
  16. Battery rooms
  17. Large manufacturing complexes
  18. Multi level sites
  19. Clean rooms



Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
