FK 5-1-12 Fire Suppression System Without Pollution For Telecommunication Room
Similar to heptafluoropropane fire extinguishing system, PFH fire extinguishing system is also divided into pipe network fire extinguishing system and prefabricated fire extinguishing system. The pipe network fire extinguishing system is mainly composed of fire extinguishing agent steel cylinder, drive cylinder, selector valve, collecting pipe, control pipeline, signal feedback device, leak detection device, pipeline, nozzle, etc. The fire extinguishing agent and high pressure nitrogen are stored in the steel cylinder. When the system starts to extinguish fire, the cylinder head valve and the selector valve are opened. The gas fire extinguishing agent is driven by high pressure gas through the pipeline, ejected from the nozzle, rapidly gasified, and extinguished through heat absorption and cooling. According to the number of protection zones, it can be divided into unit independent system and combined distribution system.
| Filling Density: ≤1420kg/m3 | Nominal Pressure: 5.3MPa |
| Test Pressure: 8.4MPa | Working Power: DC 24V 1.6A |
| Starting Mode: Automatic, Electrical Manual, Mechanical Manual | Cylinder Volume: 40L,70L,100L,120L,150L,180L |
| Storage Pressure: 4.2 MPa | Spraying Time: ≤10s |
| Working Temperature: 0℃～50℃ | Protected Zone Range:: Proportion: ≤800m² Volume: ≤3600m³ |
Working Principle
Here is the illustration of working principle to whole system
Application
As its name says, the single zone pipe network Novec1230 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network Novec1230 fire suppression system can be used to protect some large and also significant places, such as the followings:
- Computer rooms
- Telecommunication center
- Facilities underground
- Offshore oil extraction
- Library
- Data and paper archives
- Valuable article storage
- Power generator storage room
Advantages

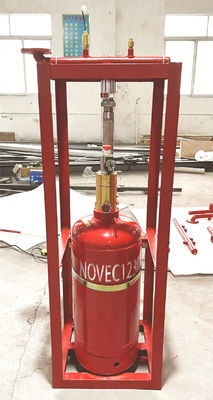

This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type Novec1230 fire suppression system. Besides, here is going to list out the advantages of this system.
1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.
2/ Easy installation. A few components and an easy structure make the system install easily.
3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
