Novec1230 Fire Suppression System Without Pollution For Storage Room
Perfluorohexadone automatic fire extinguishing system, also known as FK-5-1-12 automatic fire extinguishing system, is a gas fire extinguishing system based on perfluorocarbons, which is used to extinguish dangerous chemicals and other flammable and explosive objects.
The perfluorohexadone automatic fire extinguishing system uses the colorless and odorless perfluorocarbon FK-5-1-12 as the fire extinguishing agent, which has the following characteristics:
1. Environmental protection: FK-5-1-12 is a non-toxic, colorless, tasteless, non-corrosive, non-conductive and non-explosive fire extinguishing agent, which can protect equipment and environment from damage.
2. High efficiency: the PFH automatic fire extinguishing system can extinguish the fire quickly in a short time without any damage to the protected equipment.
3. High safety: FK-5-1-12 fire extinguishing agent has high stability, is not easy to burn, and will not produce harmful substances. Therefore, the use of this fire extinguishing system can effectively ensure the safety of personnel and equipment.
| Filling Density: ≤1420kg/m3 | Nominal Pressure: 5.3MPa |
| Test Pressure: 8.4MPa | Working Power: DC 24V 1.6A |
| Working Temperature: 0℃～50℃ | Protected Zone Range:: Proportion: ≤800m² Volume: ≤3600m³ |
| Starting Mode: Automatic, Electrical Manual, Mechanical Manual | Cylinder Volume: 40L,70L,100L,120L,150L,180L |
| Storage Pressure: 4.2 MPa | Spraying Time: ≤10s |
Components

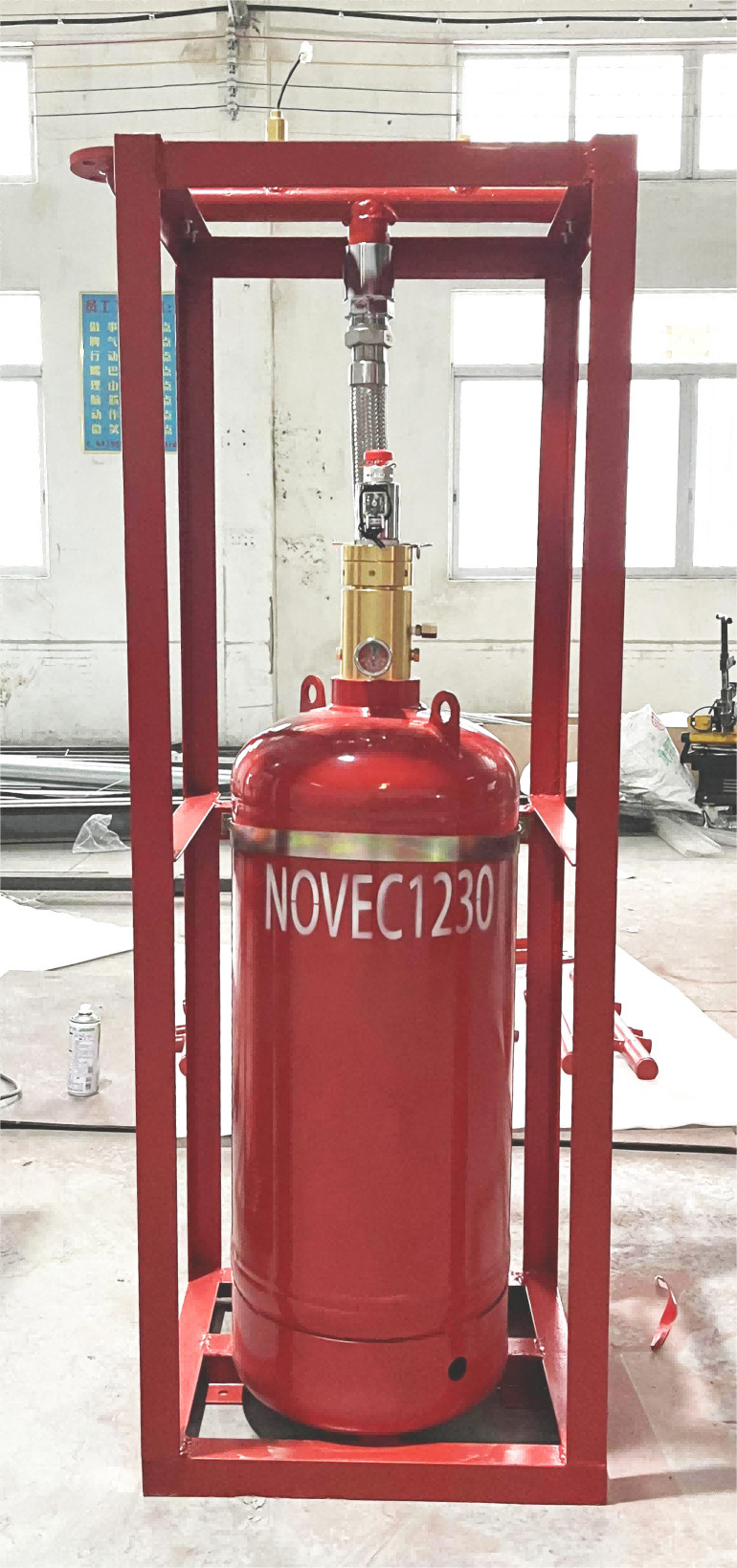

1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing Novec1230 agent
2. Electrical parts: smoke detector, heat detector, bell etc.
3. Pipe fittings: conduit, connector, elbow, flange etc.
Application
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Advantages
It is very efficient for you to protect your possession. Since it is a system, it includes extinguishing device to put out fire in a short time. It means all agent will be discharged in less than 10 seconds. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minutes. It means when a fire happens, there is enough time for people escaping the building. We have listed out two points for customer as reference.
1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.
2/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or in different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be less than 8 including 8 in accordance with our standard.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
