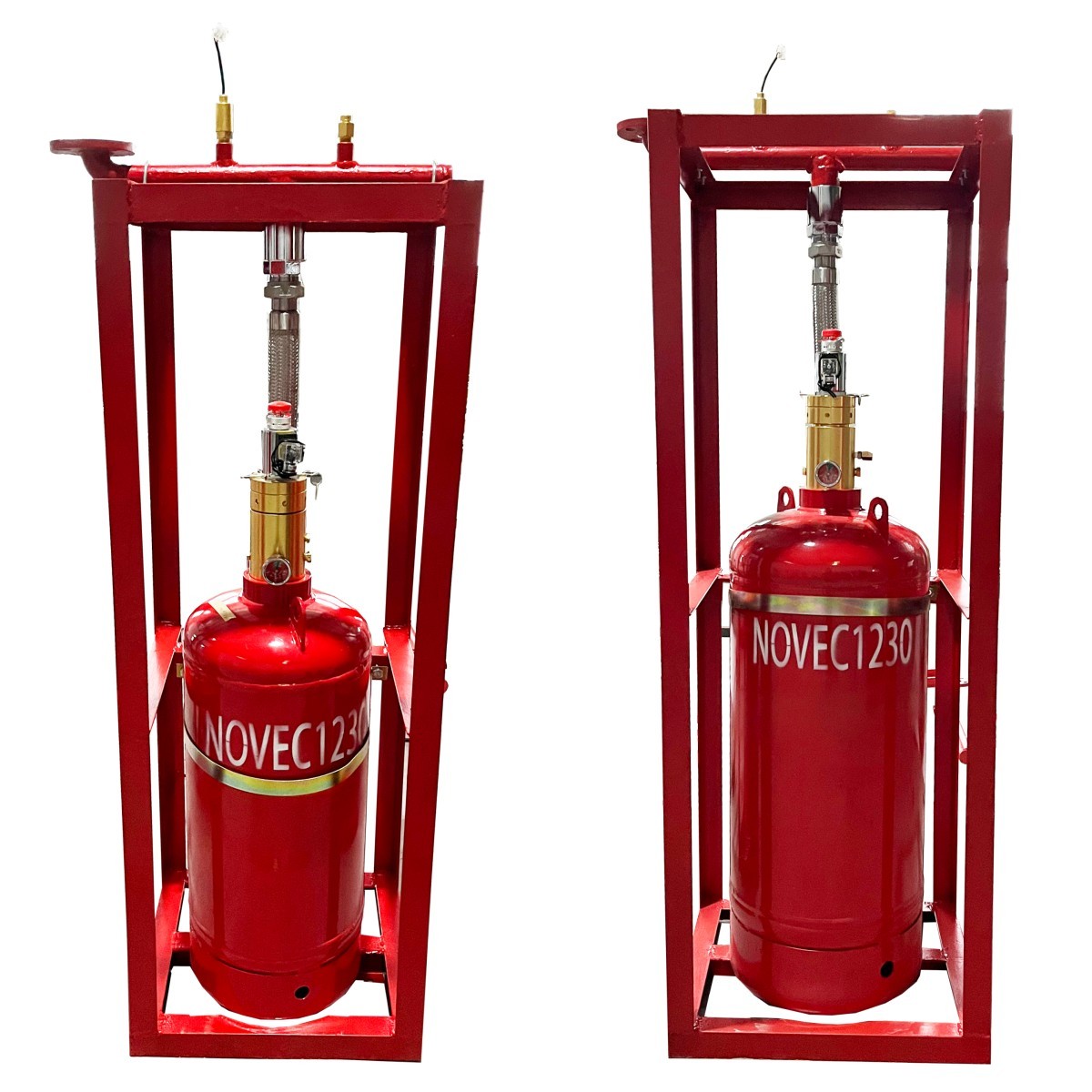

Non Corrosive Novec 1230 Suppression System Fire Extinguisher

Non Corrosive Novec1230 Fire Suppression System Without Pollution For Library

Perfluorohexadone automatic fire extinguishing system, also known as FK-5-1-12 automatic fire extinguishing system, is a gas fire extinguishing system based on perfluorocarbons, which is used to extinguish dangerous chemicals and other flammable and explosive objects.

The perfluorohexadone automatic fire extinguishing system uses the colorless and odorless perfluorocarbon FK-5-1-12 as the fire extinguishing agent, which has the following characteristics:

1. Environmental protection: FK-5-1-12 is a non-toxic, colorless, tasteless, non-corrosive, non-conductive and non-explosive fire extinguishing agent, which can protect equipment and environment from damage.

2. High efficiency: the PFH automatic fire extinguishing system can extinguish the fire quickly in a short time without any damage to the protected equipment.

3. High safety: FK-5-1-12 fire extinguishing agent has high stability, is not easy to burn, and will not produce harmful substances. Therefore, the use of this fire extinguishing system can effectively ensure the safety of personnel and equipment.

4. Strong flexibility: PFH automatic fire extinguishing system can flexibly adapt to different fire extinguishing requirements, and is applicable to various sizes and types of places.

The working principle of the PFH automatic fire extinguishing system is that when a fire occurs, the system detector detects the fire source, and the controller will automatically open the vent valve to release the FK-5-1-12 fire extinguishing agent from the pipe network and enter the fire extinguishing area to extinguish the fire. The fire extinguishing system is an ideal fire extinguishing device with simple operation, high automation and fast and effective fire extinguishing.

Components

Pipe network Novec1230 fire suppression device is composed of the follow-up components: Novec1230 agent, Novec1230 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.

Working Principle

Here is the illustration of working principle to whole system

Application

• Computer room, communication room, power distribution room, library, archives,

Museum, etc.

• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas

source before extinguishing occur, etc.

Advantages

1. Management of multiple zones

2. Efficient fire protection in big region

3. Less occupation in fire-controlled space

4. Relatively cheap price than cabinet or hanging type if zone is big and multiple

Packages

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
