Inert Gas Inergen IG541 Fire Extinguishing System Without Residue For Library
Characteristics of IG541 mixture gas fire extinguishing agent:
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMH20/80 | QMH30/80 |
| 3 | Capacity | 80Ltr | 80Ltr |
| 4 | Filling Capacity of Gas | 23.9kg | 33.2kg |
| 5 | Outside Diameter of Cylinder | Φ286mm | Φ286mm |
| 6 | Height of Cylinder | 1910mm | 1910mm |
| 7 | Spraying Time | ≤120s | ≤120s |
| 8 | Filling Rate | 0.299kg/L | 0.415kg/L |
| 9 | Power | DC24V/1.6A | DC24V/1.6A |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | temperature: -20~50℃ | temperature: -20~50℃ |
| 12 | Max Working Pressure | 23.2MPa | 36.6MPa |
| 13 | Min Working Pressure | 18MPa | 27MPa |

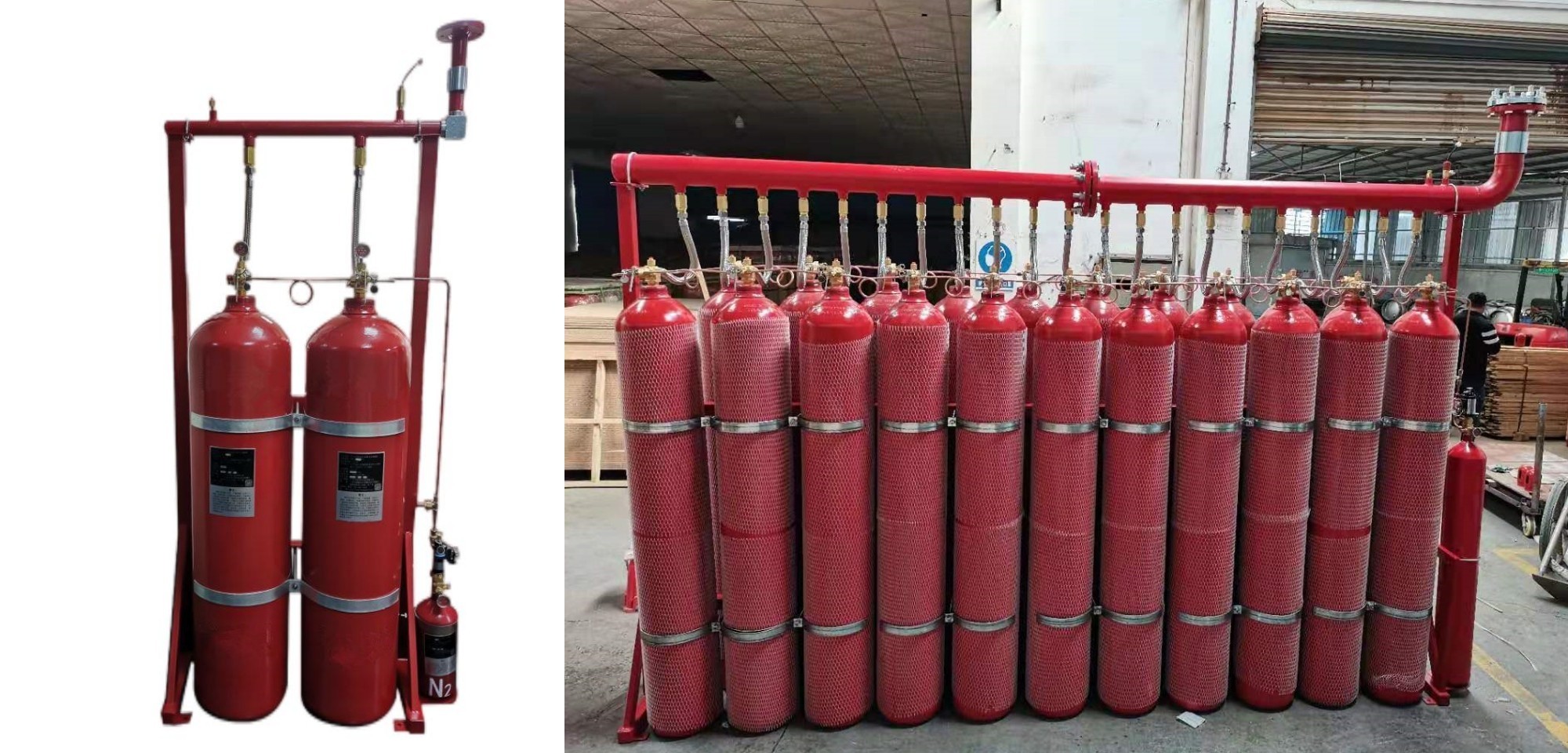

System Composition
Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
