Inert Gas Argonite IG55 Fire Extinguishing System without residue for museum
Description
IG-55 is a clean agent fire extinguishing system using an inert gas (IG-55) consisting of 50% Nitrogen and 50% Argon and is used in total flooding systems. It has become widely accepted as the best performing, cost effective, and environmentally friendly inert gas fire extinguishing agent, offering extended hold times and great flexibility in design. IG55 fire suppression system utilises a superior valve design to automatically regulate the pressure of the extinguishant at discharge, providing an ideal discharge pressure and maintaining a constant flow rate throughout the discharge.
Parameters
| No. | Specification | IG55(50% nitrogen;50% argon) | |||
| 1 | Capacity | 80Ltr | 140ltr | ||
| 2 | Working Pressure | 20MPa | 30MPa | 20MPa | 30MPa |
| 3 | Device Model | QMH20/80 | QMH30/80 | QMH20/140 | QMH30/140 |
| 4 | Filling Capacity of Gas | 22.32kg | 33.48kg | 42kg | 58.2kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ267mm | Φ406mm | Φ356mm |
| 6 | Height of Cylinder | 1710mm | 1870mm | 1460mm | 1925mm |
| 7 | Filling Rate | 0.299kg/L | 0.415kg/L | 0.300kg/L | 0.201kg/L |
| 8 | Spraying Time | ≤120s | |||
| 9 | Power | DC24V/1.6A | |||
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0MPa(20℃) | |||
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ | |||

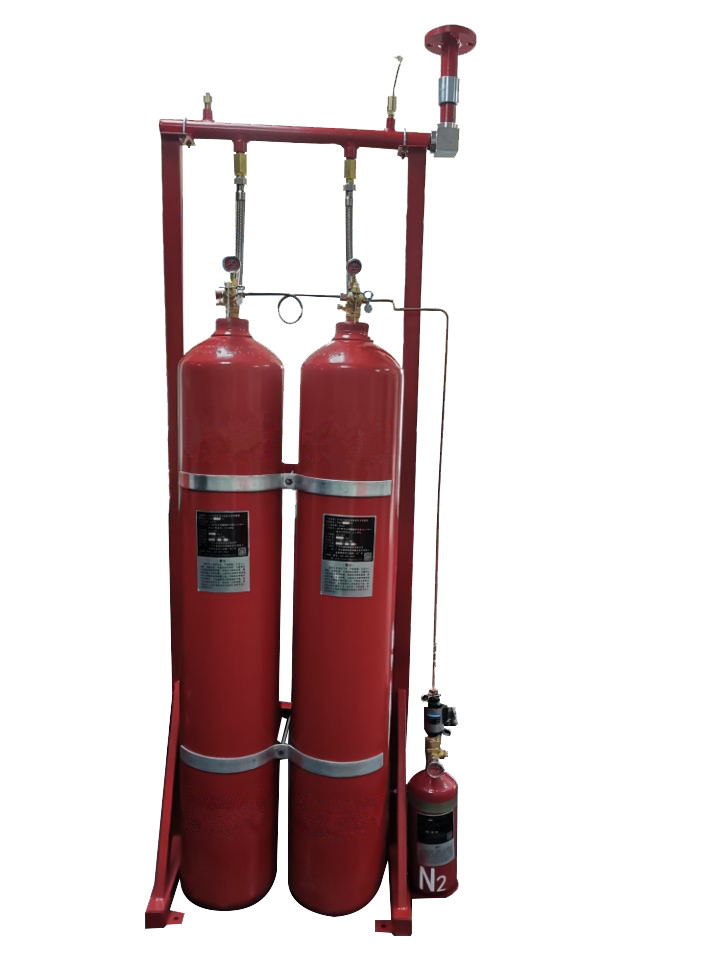

System Composition
• Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame,
the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
Features and benefits
Application
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
