2.5Mpa HFC227ea Fire Suppression System Without Residue For Data Center

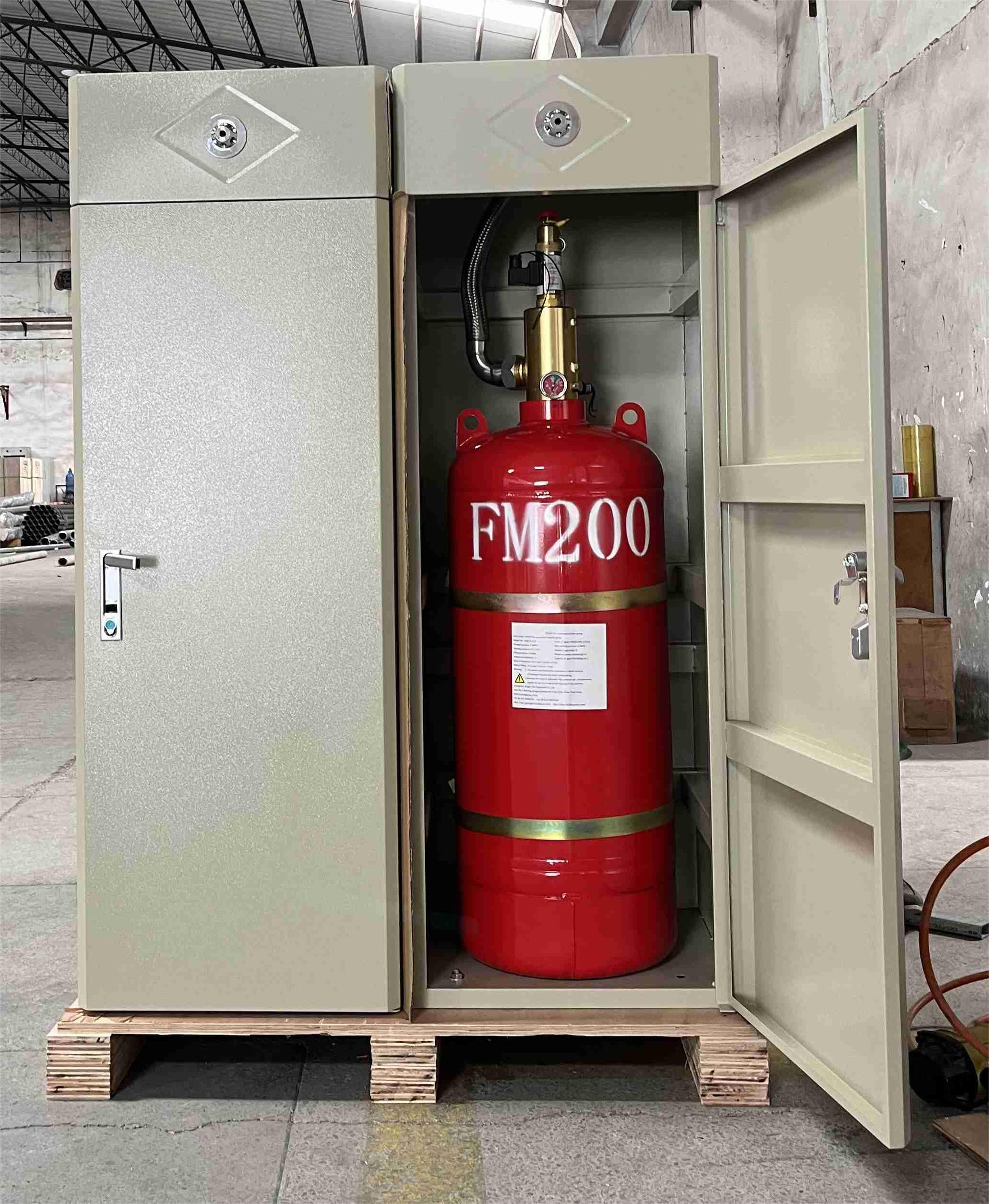

• Cabinet automatic HFC-227ea/FM200(Heptafluoropropane) fire suppression system uses the solenoid valve as the starting mode with the elegant appearance design. The cylinder is placed in the cabinet. For different protection zone, according to the different volume zone to match different size cylinder, which can reduce the occupied area.
• According to different volume size, different extinguishing agent, different starting mode to assemble.
• Independent sets, flexible installation, good appearance.
• Without cylinder room, can install in the protection zone, handy and romovable.
• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas. It belongs to a kind of clean extinguishing agent.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.
• It is currently an ideal substitute for the halon extinguishing agent.
Parameters
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr, 120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | ≤0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Cabinet Size
| Specification | Size(mm) | Volume(cbm) | Net weight (kg) |
| GQQ40/2.5 | 500×450×1450 | 0.326 | 33 |
| GQQ70/2.5 | 500×450×1450 | 0.326 | 43-50 |
| GQQ90/2.5 | 500×450×1650 | 0.371 | 43-50(46) |
| GQQ100/2.5 | 500×450×1650 | 0.371 | 55-64(54) |
| GQQ120/2.5 | 550×550×1900 | 0.575 | 60-73(60) |
| GQQ150/2.5 | 550×550×1900 | 0.575 | 80 |
| GQQ180/2.5 | 600×550×2150 | 0.71 | 80 |
Compositions:
The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.
Working principle
Here is the illustration of working principle to whole system
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Competitive Advantage
Cabinet fm200 system: management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.
1. Effective firefighting in relatively small region
2. Simple assembly of device without pipeline
No extra space to store device
Packages
We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
