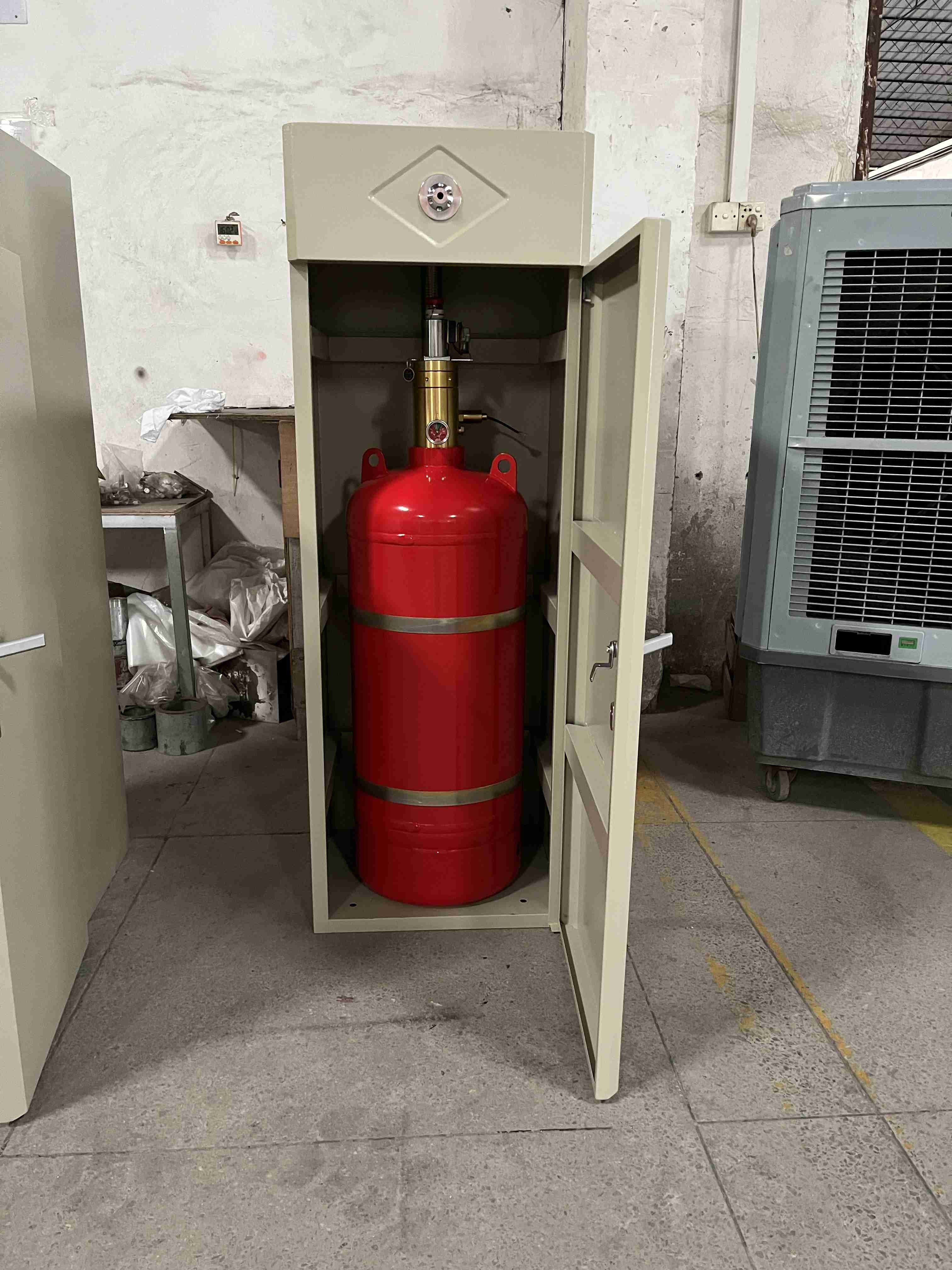

Cabinet FM200 Fire Extinguishing System Without Pollution For UPS Room
Fm200(hfc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Parameters
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr, 120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | ≤0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Cabinet Size
| Specification | Size(mm) | Volume(cbm) | Net weight (kg) |
| GQQ40/2.5 | 500×450×1450 | 0.326 | 33 |
| GQQ70/2.5 | 500×450×1450 | 0.326 | 43-50 |
| GQQ90/2.5 | 500×450×1650 | 0.371 | 43-50(46) |
| GQQ100/2.5 | 500×450×1650 | 0.371 | 55-64(54) |
| GQQ120/2.5 | 550×550×1900 | 0.575 | 60-73(60) |
| GQQ150/2.5 | 550×550×1900 | 0.575 | 80 |
| GQQ180/2.5 | 600×550×2150 | 0.71 | 80 |
Compositions:
The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Competitive Advantage
Cabinet fm200 fire suppression system has a large number of advantages, and here is going to have a brief explanation:
1/ Swift response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.
2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.
3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.
Packages
We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
