FM200 Gas System Without Pollution For Computer Room

1 set
MOQ
negotiation
Price
FM200 Gas System Without Pollution For Computer Room
Features Gallery Product Description Request A Quote
Features
Specifications
Storage Pressure: 4.2 MPa
Spraying Time: ≤10s
Filling Density: ≤950kg/m3
Nominal Pressure: 5.3MPa
Test Pressure: 8.4MPa
Working Power: DC 24V 1.6A
Working Temperature: 0℃~50℃
Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³
Starting Mode: Automatic, Electrical Manual, Mechanical Manual
Cylinder Volume: 40L、70L、100L、120L、150L、180L
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

FM200 gas system without pollution for computer room



1. Multiple management in the control of the whole system

2. Agent quantity for biggest zone is enough to protect all zones through selector valves

3. Direct target to expensive machine or delicate device

4. Short time discharge of extinguishing agent

5. Preparation for storage room

6. Space confirmation of placement for cylinder group





Components



Actually, a complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:

1/ Fm200 cylinder

2/ Container valve

3/ Solenoid actuator

4/ Flexible hose

5/ Liquid flow check valve

6/ Cylinder frame

7/ Manifold

8/ Safety valve

9/ Pressure switch

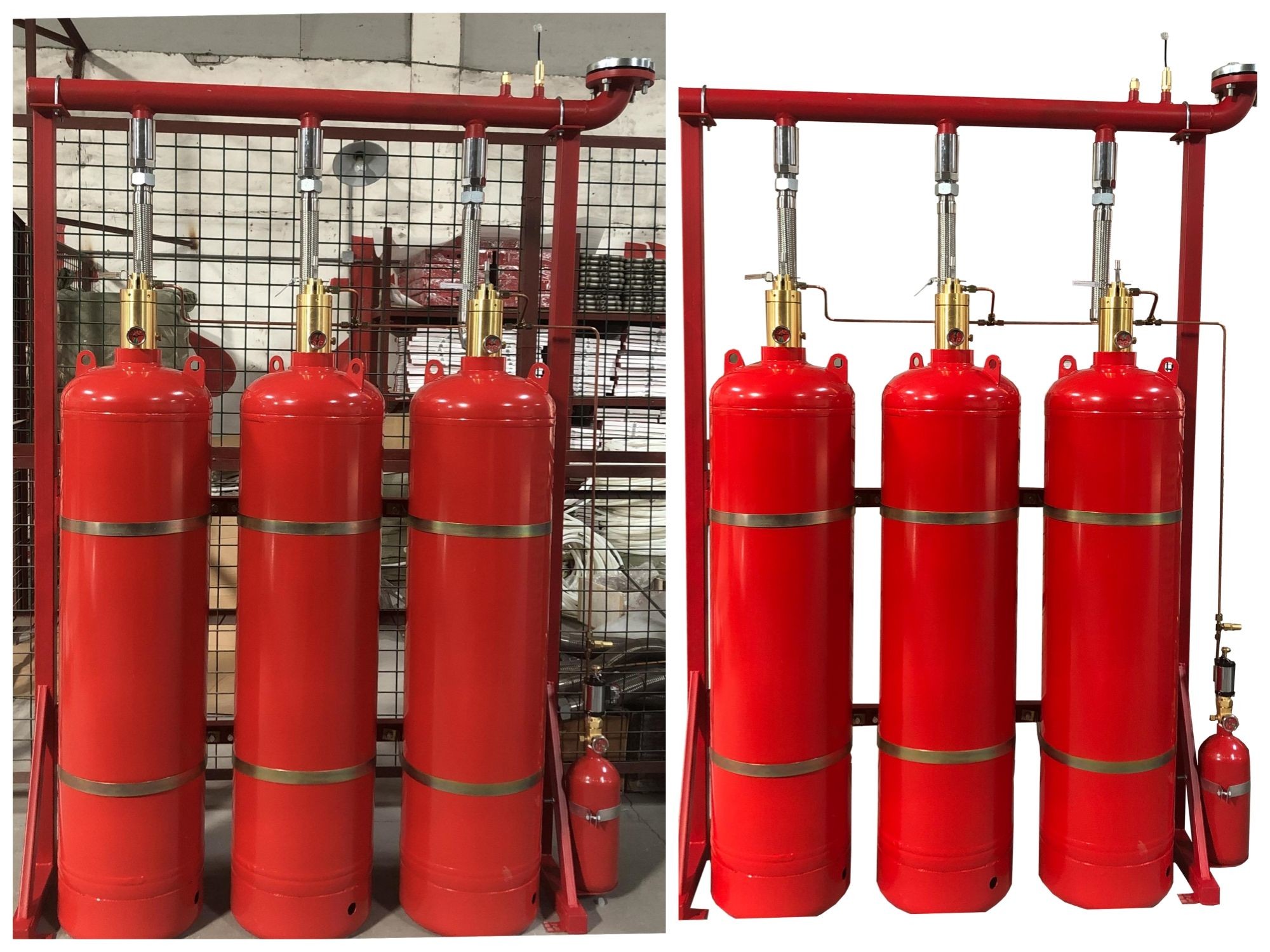

FM200 Gas System Without Pollution For Computer Room 0



Working principle



Here is the illustration of working principle to whole system



FM200 Gas System Without Pollution For Computer Room 1





Application



As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:



- Computer rooms



- Telecommunication center



- Facilities underground



- Offshore oil extraction



- Library



- Data and paper archives



- Valuable article storage



- Power generator storage room





Advantages



This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type fm200 fire suppression system. Besides, here is going to list out the advantages of this system.



1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.



2/ Easy installation. A few components and an easy structure make the system install easily.



3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.





Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

FM200 Gas System Without Pollution For Computer Room 2
