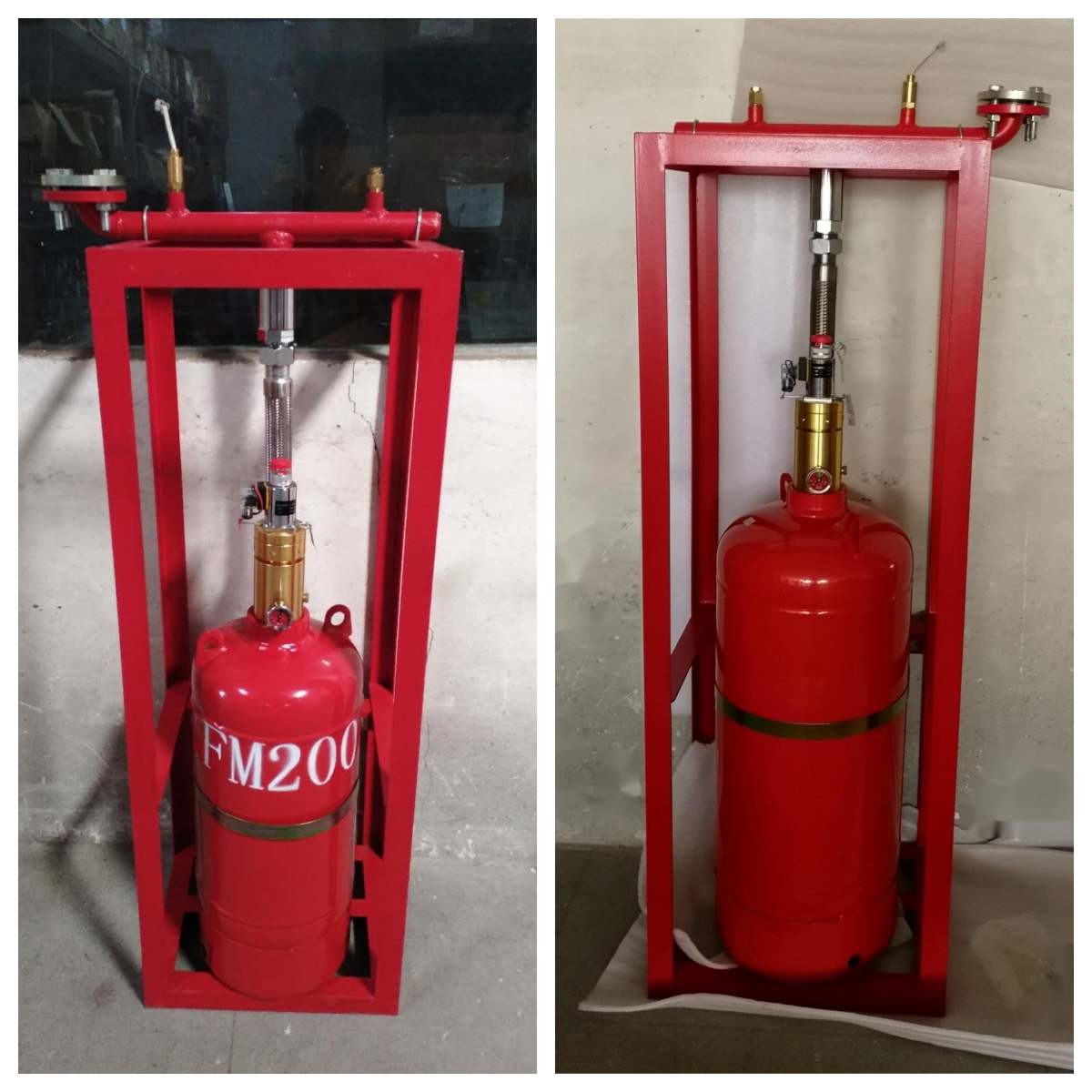

Automatic FM200 Fire Suppression System Without Pollution For Server Room
HFC-227ea(FM200) clean agent automatic fire suppression system is widely used in China and all over the world. Its most strong point is that this system meets the world’s requirement of environmental protection. It will not hurt the ozone layer even for 1% possibility. The other strong point is that such as the clean, odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people’s mind.
Fm200 gas fire suppression system works more efficient when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. This system also distinguishes itself by the fast spraying time with less than 10s.
Parameters
| No | Specifications | Parameters |
| 1 | Tank size | 16L , 20L , 30L |
| 2 | Device model | XQQC16/1.6, XQQC20/1.6, XQQC30/1.6 |
| 3 | Storage pressure | 1.6MPa |
| 4 | Maximum working pressure | 2.5MPa |
| 5 | Discharge time | ≤8s |
| 6 | Maximum filling rate | 1kg/L |
| 7 | Device starting power | DC24V/1.6A |
| 8 | Environment temperature of protection zone | 0℃～50℃ |
Components
Pipe network fm200 fire suppression device is composed of the follow-up components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.
Working principle
Here is the illustration of working principle to whole system
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Advantages
1. Management of multiple zones
2. Efficient fire protection in big region
3. Less occupation in fire-controlled space
4. Relatively cheap price than cabinet or hanging type if zone is big and multiple
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
