Non Corrosive FM200 Fire Suppression System Without Pollution For Data Center

1 set
Non Corrosive FM200 Fire Suppression System Without Pollution For Data Center
Features Gallery Product Description Request A Quote
Storage Pressure: 4.2 MPa
Spraying Time: ≤10s
Filling Density: ≤950kg/m3
Nominal Pressure: 5.3MPa
Test Pressure: 8.4MPa
Working Power: DC 24V 1.6A
Working Temperature: 0℃~50℃
Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³
Starting Mode: Automatic, Electrical Manual, Mechanical Manual
Cylinder Volume: 40L、70L、100L、120L、150L、180L
High Light:

Data Center FM200 Fire Suppression System


FM200 Fire Suppression System Non Corrosive


FM200 Fire Suppression Non Corrosive

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

Non Corrosive Fm200 Fire Suppression System Without Pollution For Data Center


• Automatic HFC-227ea/FM200 fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.


• HFC-227ea/FM200 is a kind of colourless, odorless, tasteless,noncorrosive, electrical insulated, non-conductive fire agent.


• The ozone-depleting potential value is zero.


• It is currently an ideal substitute for the halon extinguishing agent.


• Assemble agent according to different filling pressure, different capacity, different extinguishing agent and different starting mode.


Device model Filling amount (kg) Maximum working pressure(Mpa) Storage pressure (Mpa) Maximum coverage
Starting mode
XQQC16/1.6 16 2.5 1.6 22.22

Starting power:


Solenoid actuator

XQQC20/1.6 20 2.5 1.6 27.78
XQQC30/1.6 30 2.5 1.6 41.67






The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.


The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

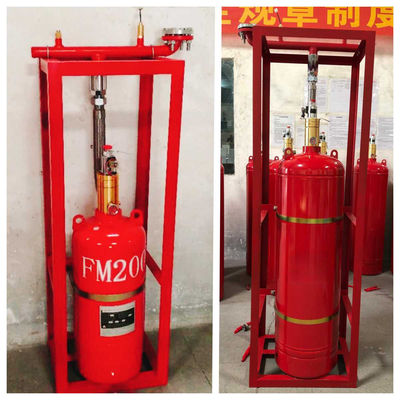

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.

Non Corrosive FM200 Fire Suppression System Without Pollution For Data Center 0


Working principle


Here is the illustration of working principle to whole system


Non Corrosive FM200 Fire Suppression System Without Pollution For Data Center 1





The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:


- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories





There are a lot of advantages of the single zone fm200 fire suppression system compared to other fire suppression system.


1/ It is the single zone fm200 fire suppression system that can protect the largest volume among the fm200 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.


2/ Using single zone fm200 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.


3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.


4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.




We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Non Corrosive FM200 Fire Suppression System Without Pollution For Data Center 2
