High-Quality Fm200 Fire Suppression System Without Pollution for Museum
1. Multiple management in the control of the whole system
2. Agent quantity for biggest zone is enough to protect all zones through selector valves
3. Direct target to expensive machine or delicate device
4. Short time discharge of extinguishing agent
5. Preparation for storage room
6. Space confirmation of placement for cylinder group
Components

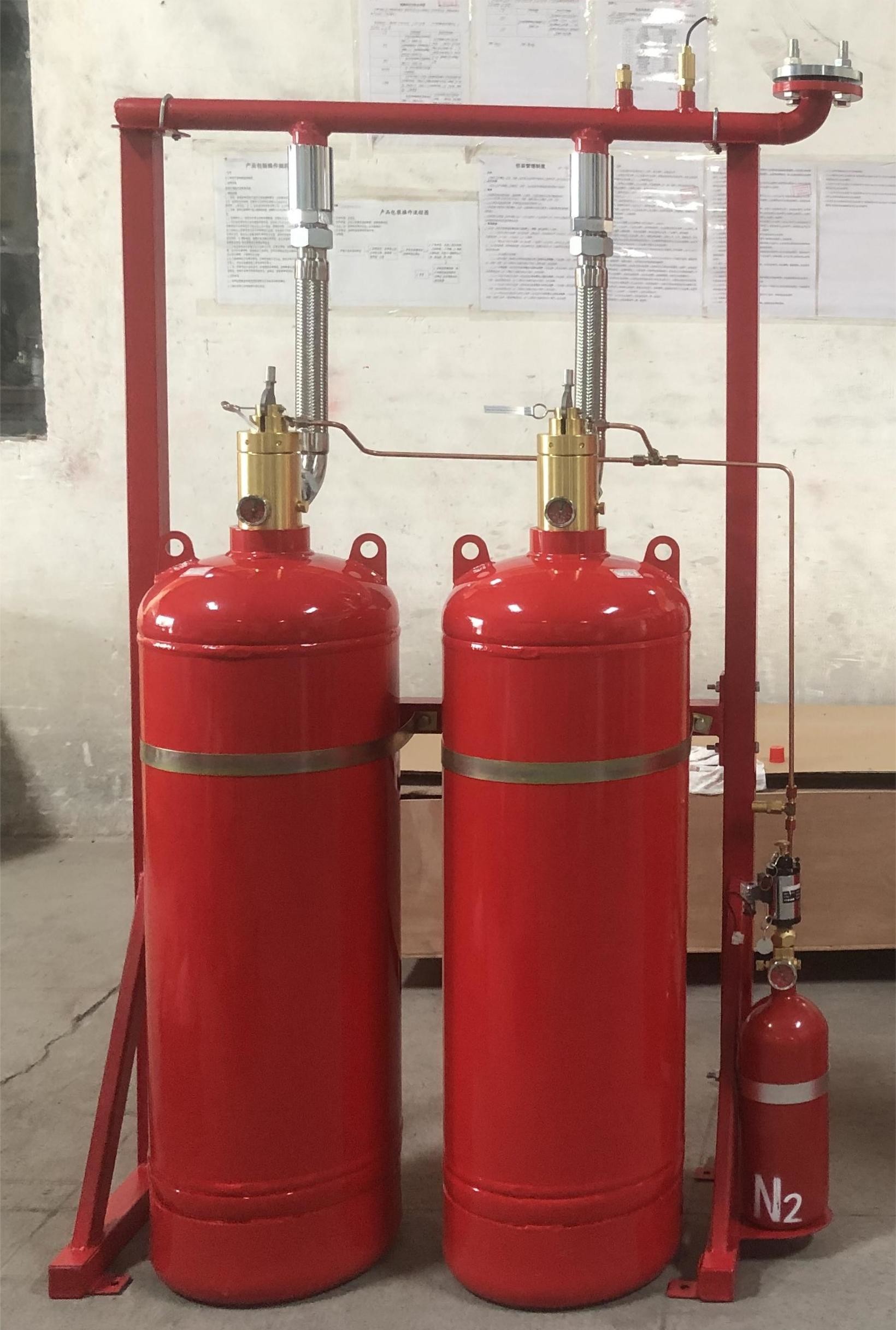

Pipe network fm200 fire suppression device is composed of the follow-up components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.
| Device model | Filling amount (kg) | Maximum working pressure(Mpa) | Storage pressure (Mpa) | Maximum coverage (m³) |
Starting mode |
| XQQC16/1.6 | 16 | 2.5 | 1.6 | 22.22 |
Starting power:
Solenoid actuator |
| XQQC20/1.6 | 20 | 2.5 | 1.6 | 27.78 | |
| XQQC30/1.6 | 30 | 2.5 | 1.6 | 41.67 |
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Advantages
1. Management of multiple zones
2. Efficient fire protection in big region
3. Less occupation in fire-controlled space
4. Relatively cheap price than cabinet or hanging type if zone is big and multiple
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
