Fm200 Fire Suppression System Without Pollution for Telecommunication Room
FM200 (Heptafluoropropane, HFC-227ea) automatic fire extinguishing system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system.
FM200 gas fire extinguishing system can be combined with physical and chemical reaction process rapidly and effectively eliminate heat, prevent the happening of the fire, the physical properties of FM200 performance in its molecule vaporizing stage can rapid cooling flame temperature; And the release of free radicals in the process of chemical reaction, will eventually stop burning a chain reaction.

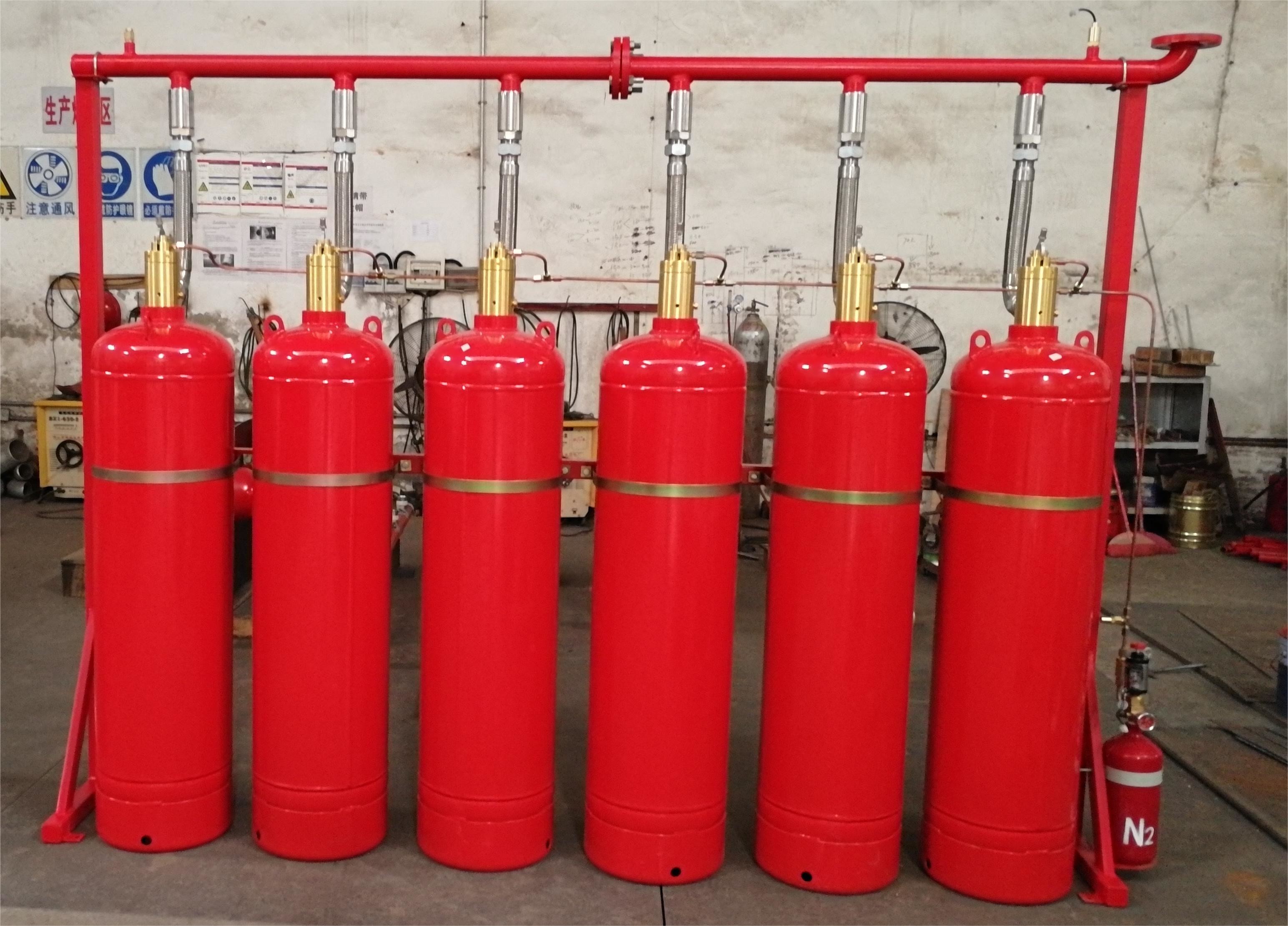

Components
Actually, a complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:
1/ Fm200 cylinder
2/ Container valve
3/ Solenoid actuator
4/ Flexible hose
5/ Liquid flow check valve
6/ Cylinder frame
7/ Manifold
8/ Safety valve
9/ Pressure switch
Application
As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:
- Computer rooms
- Telecommunication center
- Facilities underground
- Offshore oil extraction
- Library
- Data and paper archives
- Valuable article storage
- Power generator storage room
Advantages
This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type fm200 fire suppression system. Besides, here is going to list out the advantages of this system.
1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.
2/ Easy installation. A few components and an easy structure make the system install easily.
3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
