Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room

1 set
MOQ
negotiation
Price
Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Red
Volume (L): 32,40,52, 70, 100,106,120, 147,150, 180
Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Storage Pressure: 4.2MPa;2.5Mpa
Internal Diameter: 300, 350, 400
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card
Supply Ability: 28000 sets per week
Product Description

Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room


Description

Technical Specification

Nominal volume(L)

16

32

52

106

147

180

Designed thickness of cylinder(mm)

3.1

3.1

5.4

5.4

5.4

5.4

Internal diameter(mm)

250

250

400

400

400

400

Material standard

GB6653-2008

Specified value of chemical ingredients of material

C<0.20% Si<0.35% Mn<1.50%

P<0.025% S<0.015% P+SM0.04%

Test of hydraulic pressure

6.3MPa

Test of sealing pressure

4.2MPa


Technical Specification

Nominal volume(L)

40

70

100

120

150

180

Filling capacity(kg)

46.4

81.2

116

139.2

174

208.8

Designed thickness of cylinder(mm)

5.4

6.3

6.3

6.3

7.2

7.2

Designed thickness of head(mm)

4.8

5.7

5.7

5.7

6.5

6.5

Material standard

GB6653-2008

Specified value of chemical ingredients of material

C<0.20% Si<0.35% Mn<1.50%

P<0.025% S<0.015% P+SM0.04%

Test of hydraulic pressure

8.4MPa

Test of sealing pressure

5.6MPa


Components

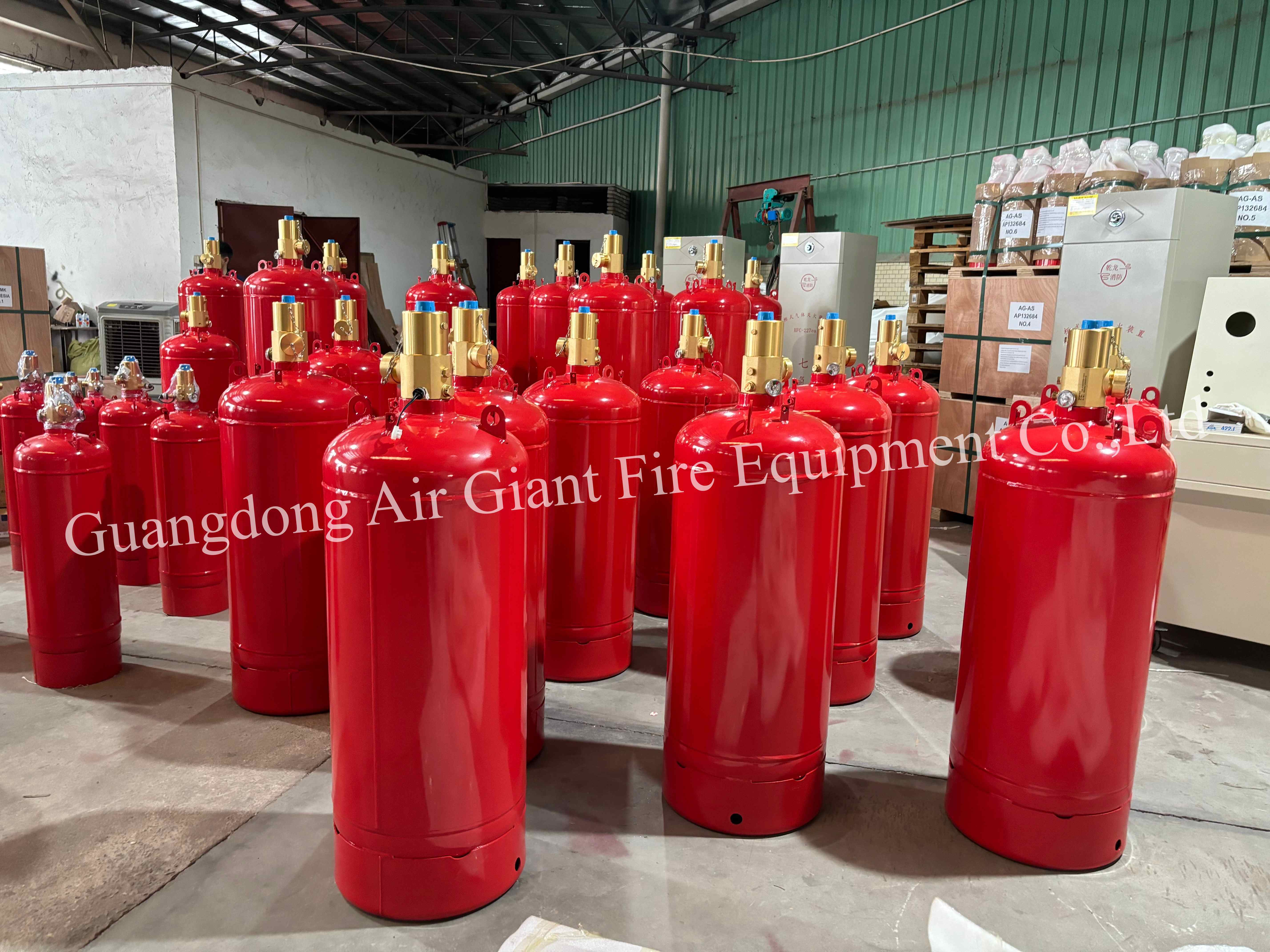

The bottle part is composed of steel cylinder and cylinder valve



       Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room     Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room     Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room


Application


Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.


Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room


Package


We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


Insulated FM200 Fire Extinguishing System Cylinder Without Residue For Telecommunication Room
