Name: Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room
Brand: Guangdong Air Giant Fire Equipment Co.,Ltd.
SKU: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Price: Negotiable USD
Availability: InStock

Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room

1 set

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Red

Volume (L): 32，40，52， 70, 100，106，120, 147，150, 180

Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2

Storage Pressure: 4.2MPa;2.5Mpa

Internal Diameter: 300, 350, 400

Basic Infomation

Place of Origin: China

Brand Name: Air Giant

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2

Payment & Shipping Terms

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card

Supply Ability: 28000 sets per week

Gallery

Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room

Product Description

Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room

Description

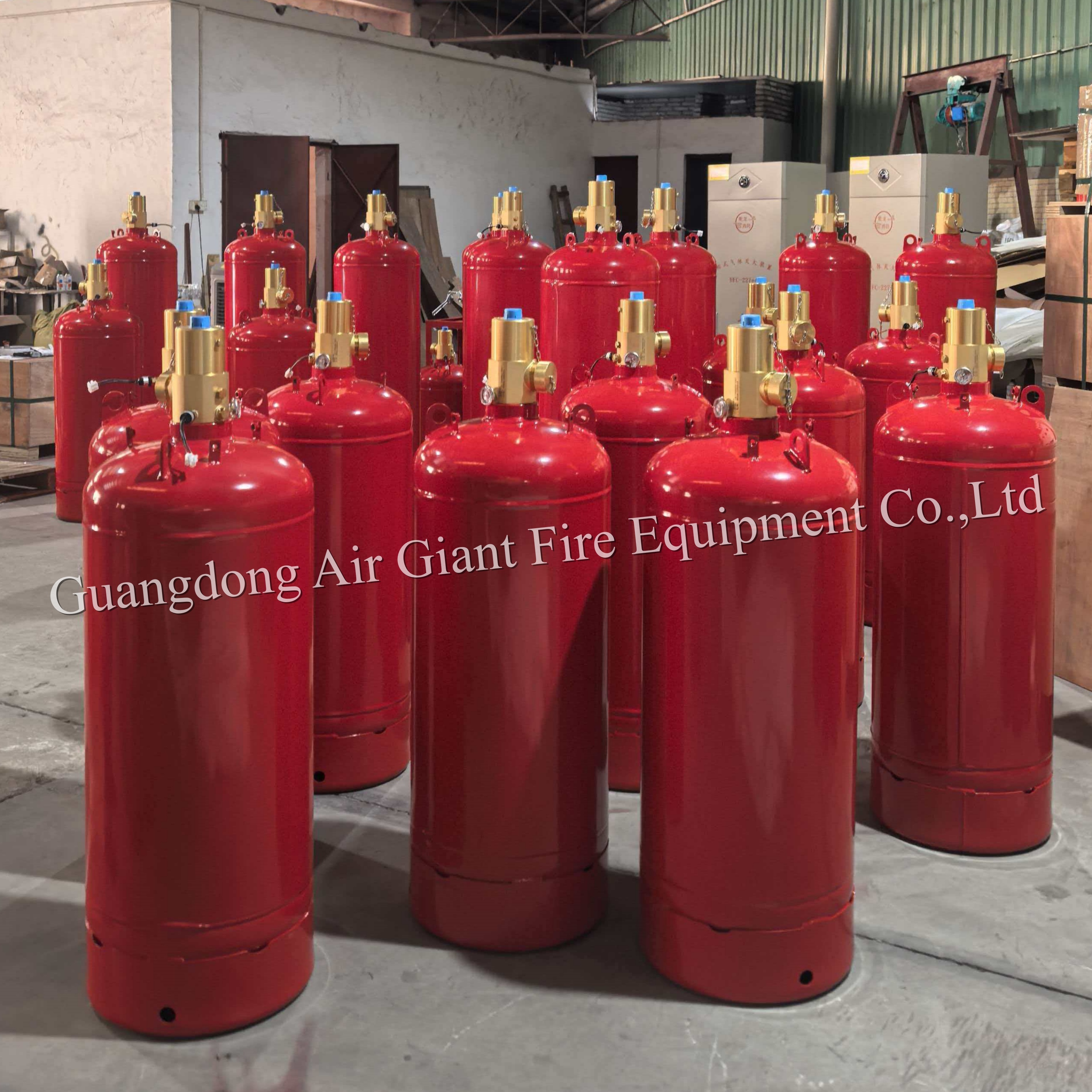

The FM200 gas cylinder is made with carbon steel and used to store the FM200 agent that is in liquid condition. This cylinder is different in size, volume as well as the storage pressure. No matter which size of cylinder, there are only two kinds of storage pressures -- 4.2MPa and 5.6MPa. Besides, all these cylinders can be used in all kinds of fire suppression system not just for FM200 fire suppression system.

The table shows the specific parameters of several conventional bottles of different sizes

Technical Specification
Nominal volume(L)	16	32	52	106	147	180
Designed thickness of cylinder(mm)	3.1	3.1	5.4	5.4	5.4	5.4
Internal diameter(mm)	250	250	400	400	400	400
Material standard	GB6653-2008
Specified value of chemical ingredients of material	C<0.20% Si<0.35% Mn<1.50% P<0.025% S<0.015% P+SM0.04%
Test of hydraulic pressure	8.4MPa
Test of sealing pressure	5.6MPa

Components

The bottle part is composed of steel cylinder and cylinder valve

Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room

Application

The Pipe network HFC227ea(FM200) fire suppression system can be used to protect some large and also significant places, such as the followings:

- Computer rooms

- Telecommunication center

- Facilities underground

- Offshore oil extraction

- Library

- Data and paper archives

- Valuable article storage

- Power generator storage room

Automatic FM200 Fire Extinguishing System Cylinder Without Residue For Server Room

Package

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
