FM200 System Cylinder Without Pollution For Archive

1 set
MOQ
negotiation
Price
FM200 System Cylinder Without Pollution For Archive
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Red
Volume (L): 32,40,52, 70, 100,106,120, 147,150, 180
Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Storage Pressure: 4.2MPa;2.5Mpa
Internal Diameter: 300, 350, 400
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card
Supply Ability: 28000 sets per week
Product Description

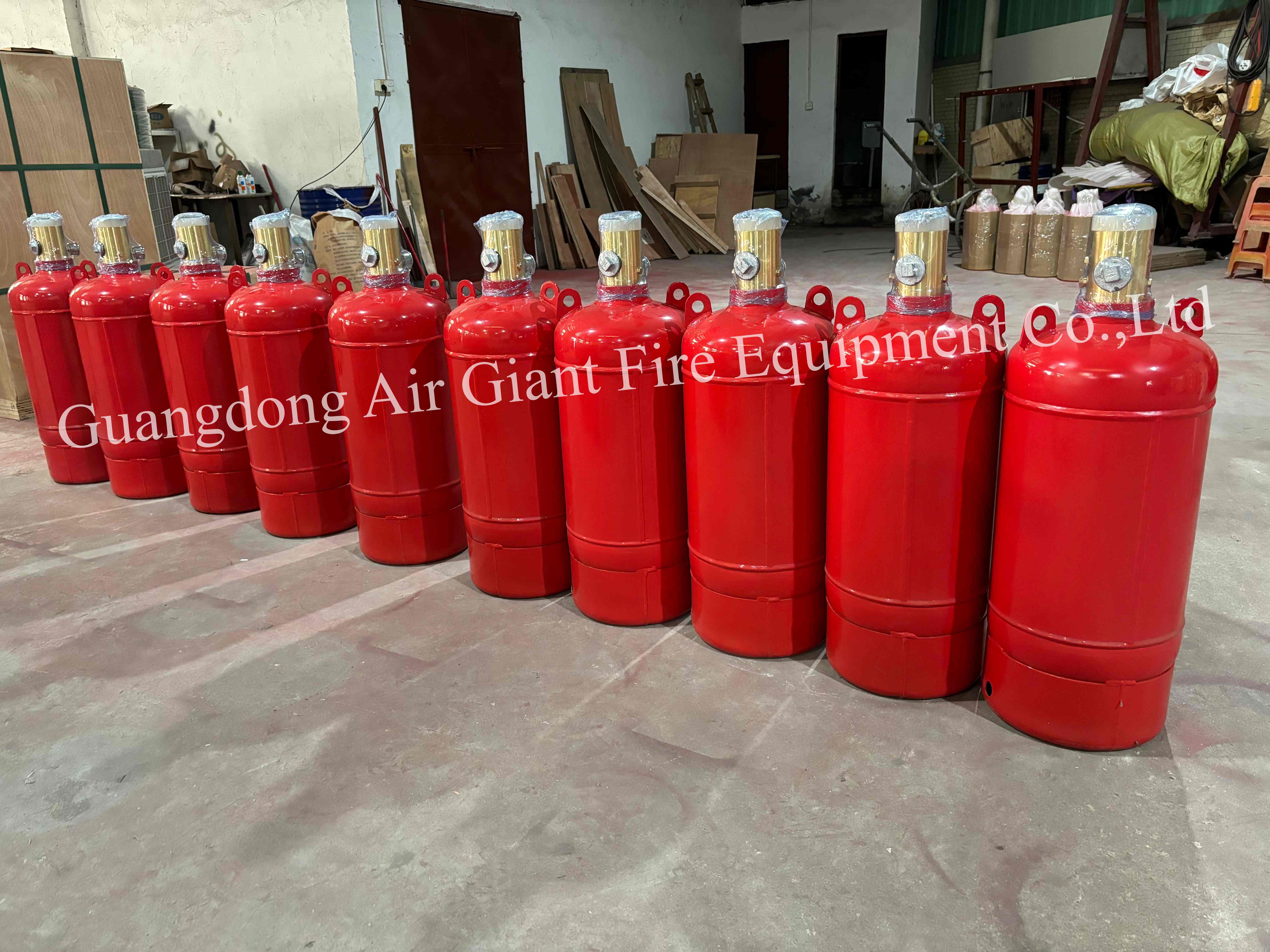

FM200 System Cylinder Without Pollution For Archive


Description


The table shows the specific parameters of several conventional bottles of different sizes

Cylinder

Nominal volume(L)

16

32

52

106

147

180

Internal diameter(mm)

250

250

400

400

400

400

Total length(mm)

(including valve)

645±15

976±15

780±20

1207±20

1541±20

1820±20

Weight of cylinder(kg)

(including valve)

20.5±1

29±1

55±2

79±2

99±2

115±2

Filling medium

FM200(HFC227ea)+Nitrogen

Test of hydraulic pressure

6.3MPa

Test of sealing pressure

4.2MPa



Components


The bottle part is composed of steel cylinder and cylinder valve



       FM200 System Cylinder Without Pollution For Archive     FM200 System Cylinder Without Pollution For Archive     FM200 System Cylinder Without Pollution For Archive


Application


Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.


FM200 System Cylinder Without Pollution For Archive


Package


We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


FM200 System Cylinder Without Pollution For Archive
