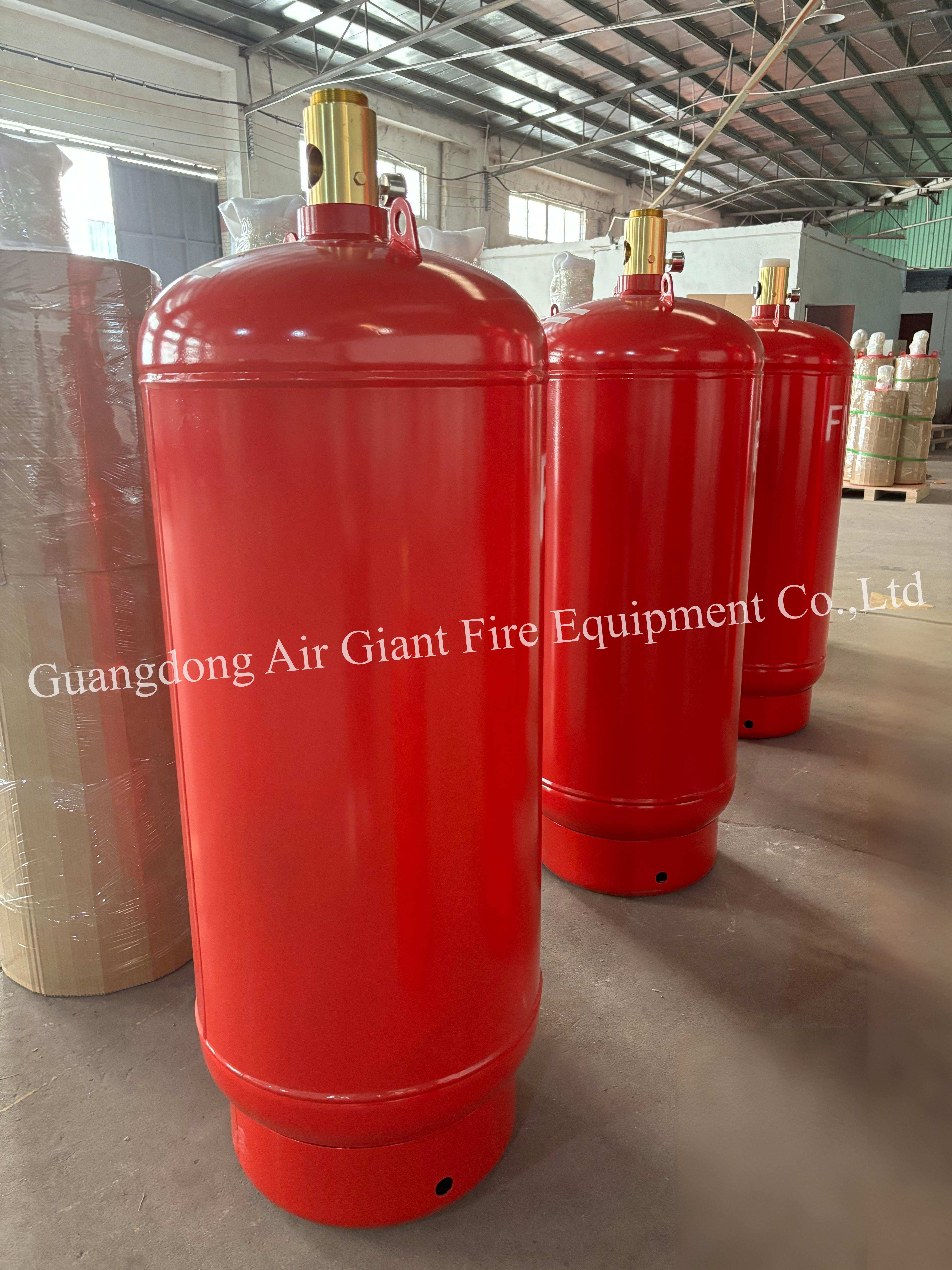

High-quality FM200 Fire Extinguishing System Cylinder Without Residue For Battery Room

1 set
MOQ
negotiation
Price
High-quality FM200 Fire Extinguishing System Cylinder Without Residue For Battery Room
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Volume (L): 32,40,52, 70, 100,106,120, 147,150, 180
Storage Pressure: 4.2MPa;2.5Mpa
Internal Diameter: 300, 350, 400
Color: Red
Highlight:

FM200 fire extinguishing cylinder for battery room

,

residue-free FM200 cylinder

,

FM200 system cylinder with warranty

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card
Supply Ability: 28000 sets per week
Product Description

High-quality FM200 Fire Extinguishing System Cylinder Without Residue For Battery Room


Description


The table shows the specific parameters of several conventional bottles of different sizes

Cylinder

Nominal volume(L)

40

70

90

100

120

150

180

Actual volume(L)

40.5

70.5

90.5

100.5

120.6

150.5

180.6

Internal diameter(mm)

300

350

350

350

350

400

400

Total length(mm)

(including valve)

890

1060

1265

1385

1578

1530

1773

Filling medium

FM200+Nitrogen

Weight of cylinder(kg)

(including valve)

38

63

74

80

94

116

133

Test of hydraulic pressure

8.4MPa

Test of sealing pressure

5.6MPa


Components


The bottle part is composed of steel cylinder and cylinder valve



                                     High-quality FM200 Fire Extinguishing System Cylinder Without Residue For Battery Room 0


Application


As its name says, the single zone pipe network HFC227ea(FM200) fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network HFC227ea(FM200) fire suppression system can be used to protect some large and also significant places, such as the followings:



- Computer rooms



- Telecommunication center



- Facilities underground



- Offshore oil extraction



- Library



- Data and paper archives



- Valuable article storage



- Power generator storage room


High-quality FM200 Fire Extinguishing System Cylinder Without Residue For Battery Room 1


Package


We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
