Name: Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center
Brand: Guangdong Air Giant Fire Equipment Co.,Ltd.
SKU: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Availability: InStock

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center

1 set

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2

Volume (L): 32，40，52， 70, 100，106，120, 147，150, 180

Storage Pressure: 4.2MPa;2.5Mpa

Internal Diameter: 300, 350, 400

Color: Red

Highlight:

HFC227ea fire suppression cylinder

FM200 data center fire system

pollution-free fire suppression cylinder

Basic Infomation

Place of Origin: China

Brand Name: Air Giant

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2

Payment & Shipping Terms

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/P,T/T,Western Union,Paypal,Credit card

Supply Ability: 28000 sets per week

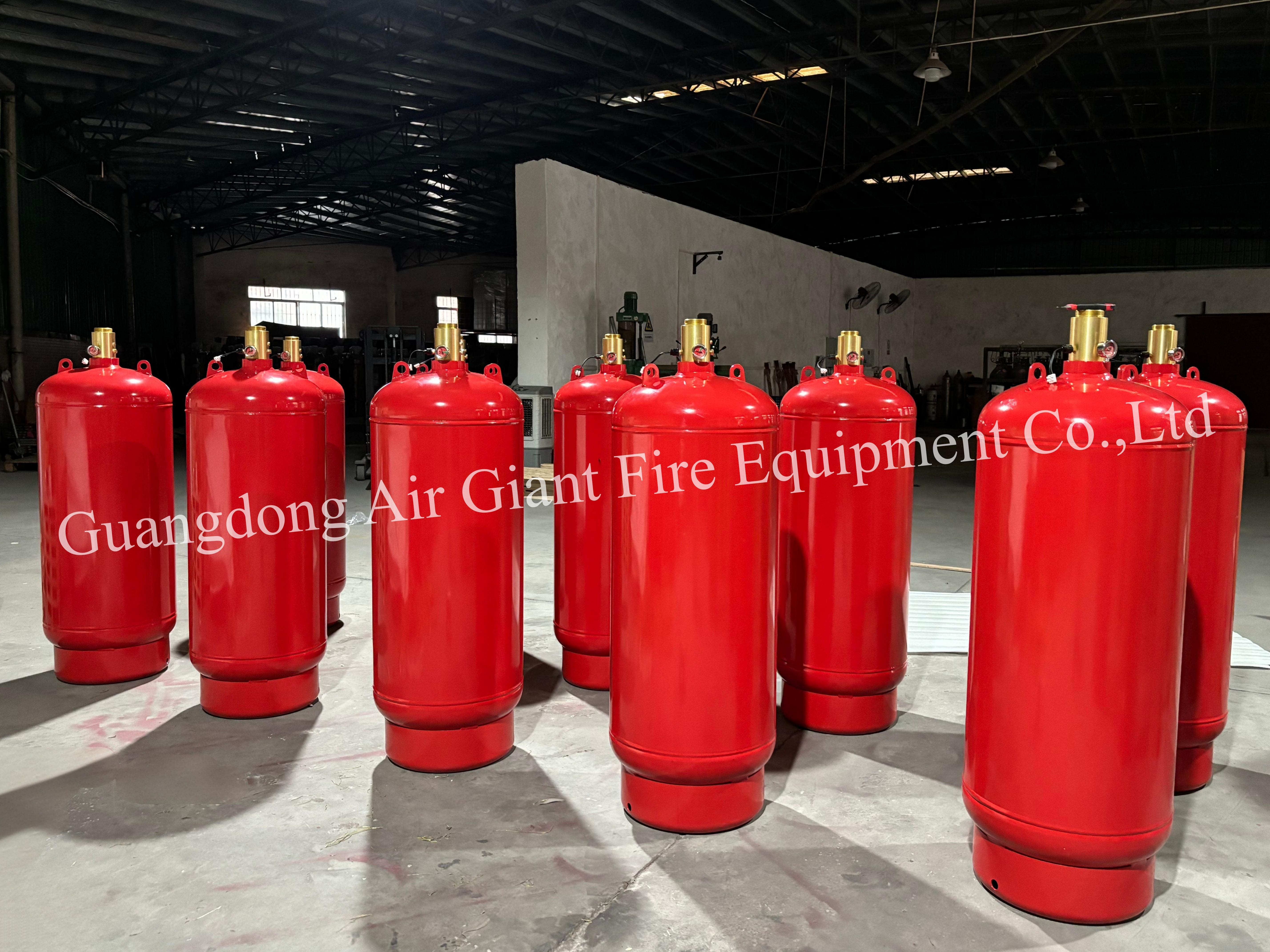

Gallery

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center

Product Description

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center

Description

The table shows the specific parameters of several conventional bottles of different sizes

Technical Specification
Nominal volume(L)	40	70	90	100	120	150	180
Filling capacity(kg)	46.4	81.2	104.4	116	139.2	174	208.8
Designed thickness of cylinder(mm)	5.4	6.3	6.3	6.3	6.3	7.2	7.2
Designed thickness of head(mm)	4.8	5.7	5.7	5.7	5.7	6.5	6.5
Material standard	GB6653-2008
Specified value of chemical ingredients of material	C<0.20% Si<0.35% Mn<1.50% P<0.025% S<0.015% P+SM0.04%
Test of hydraulic pressure	8.4MPa
Test of sealing pressure	5.6MPa

Components

The bottle part is composed of steel cylinder and cylinder valve

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center 0

Application

As its name says, the single zone pipe network HFC227ea(FM200) fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network HFC227ea(FM200) fire suppression system can be used to protect some large and also significant places, such as the followings:

- Computer rooms

- Telecommunication center

- Facilities underground

- Offshore oil extraction

- Library

- Data and paper archives

- Valuable article storage

- Power generator storage room

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center 1

Package

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Automatic HFC227ea Fire Suppression System Cylinder Without Pollution For Data Center 2
