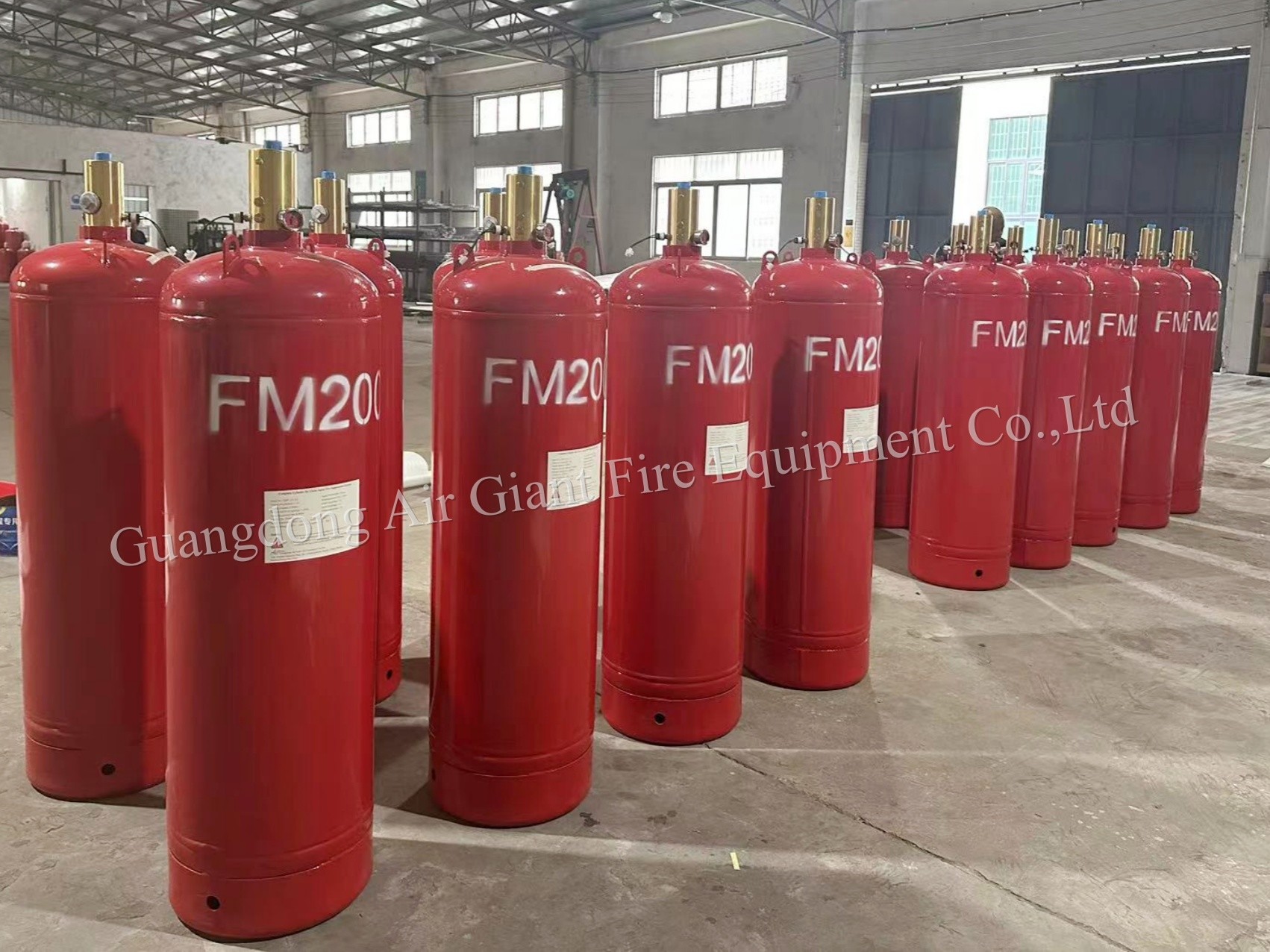

Cylinder For FM200 Fire Suppression System Without Pollution For Computer Room
Description
| Technical Specification | |||||||
| Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Filling capacity(kg) | 46.4 | 81.2 | 104.4 | 116 | 139.2 | 174 | 208.8 |
| Designed thickness of cylinder(mm) | 5.4 | 6.3 | 6.3 | 6.3 | 6.3 | 7.2 | 7.2 |
| Designed thickness of head(mm) | 4.8 | 5.7 | 5.7 | 5.7 | 5.7 | 6.5 | 6.5 |
| Material standard | GB6653-2008 | ||||||
| Specified value of chemical ingredients of material |
C<0.20% Si<0.35% Mn<1.50% P<0.025% S<0.015% P+SM0.04% |
||||||
| Test of hydraulic pressure | 8.4MPa | ||||||
| Test of sealing pressure | 5.6MPa | ||||||
Components
The bottle part is composed of steel cylinder and cylinder valve
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
