Library Fire Suppression System Cylinder Insulated Novec1230 Without Residue
The table shows the specific parameters of several conventional bottles of different sizes
| Cylinder | |||||||
| Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Actual volume(L) | 40.5 | 70.5 | 90.5 | 100.5 | 120.6 | 150.5 | 180.6 |
| Internal diameter(mm) | 300 | 350 | 350 | 350 | 350 | 400 | 400 |
|
Total length(mm) (including valve) |
890 | 1060 | 1265 | 1385 | 1578 | 1530 | 1773 |
| Filling medium | Novec1230+Nitrogen | ||||||
|
Weight of cylinder(kg) (including valve)
|
38 | 63 | 74 | 80 | 94 | 116 | 133 |
| Test of hydraulic pressure | 8.4MPa | ||||||
| Test of sealing pressure | 5.6MPa | ||||||
Components of Novec1230

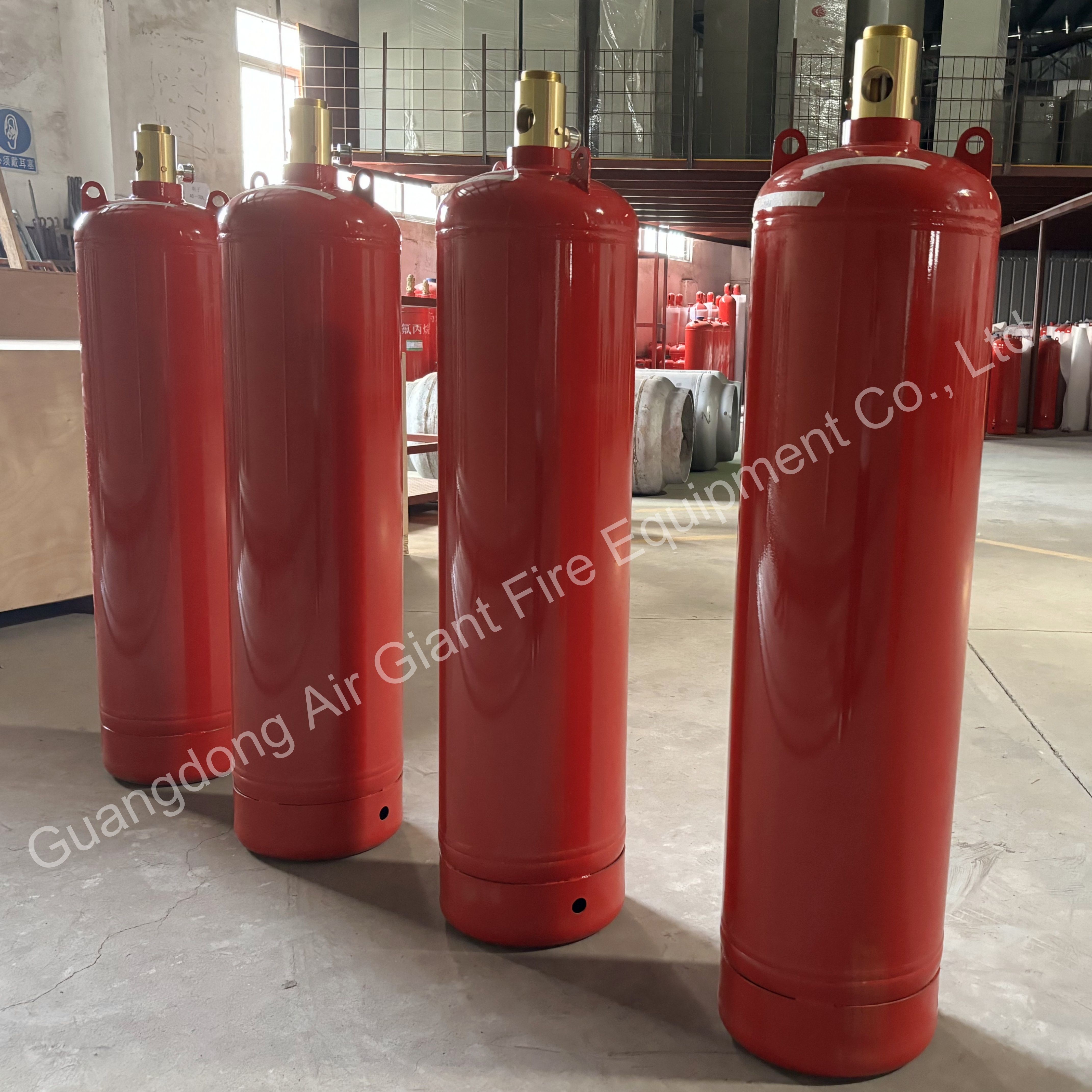

The bottle part is composed of steel cylinder and cylinder valve
Application of Novec1230
The pipe network type novec1230 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Package of Novec1230
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
