Cafss Novec1230 gas system without pollution for an-echoic chamber
The molecular formula of perfluorohexanone Novec1230 is CE3CF2C (O) CF (CE3) 2, and the relative molecular weight is 316.04. It is a clear, colorless, slightly odorous, and easily gasified liquid fire extinguishing agent at room temperature, which is not a dry hazardous substance and does not leave residue after release. The fire extinguishing agent is neither dry HFC nor inert gas. It is a new halon substitute and has made breakthrough progress in halon substitute field.
Novec1230 gas fire extinguishing agent does not contain bromine and chlorine elements, and does not damage the body oxygen layer after fire extinguishing, and its body oxygen consumption potential value is zero. At the same time, more importantly, unlike hydrofluorocarbon fire extinguishing agent, Novec1230 has a very low greenhouse effect potential value, GWP=1 is equivalent to CO2, and Novec1230 has a short life in the atmosphere, only 3-5 days, so it fundamentally solves the environmental pollution caused by halon fire extinguishing agent and hydrofluorocarbon fire extinguishing agent
Yuwang Novec1230 is environmentally friendly, safe for personnel, non-conductive, does not leave residue after fire extinguishing, does not damage equipment, and has excellent fire extinguishing performance. Therefore, it is a green environmental protection fire extinguishing agent designated by its name and its application range is wide.
Working Principle
The working principle of the PFH automatic fire extinguishing system is that when a fire occurs, the system detector detects the fire source, and the controller will automatically open the vent valve to release the Novec1230 /FK-5-1-12 fire extinguishing agent from the pipe network and enter the fire extinguishing area to extinguish the fire. The fire extinguishing system is an ideal fire extinguishing device with simple operation, high automation and fast and effective fire extinguishing.
Here is the illustration of working principle to whole system.
Components
Pipe network Novec1230 fire suppression device is composed of the follow-up components: Novec1230 agent, Novec1230 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.
Application
The pipe network type Novec1230 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Advantages
There are a lot of advantages of the single zone Novec1230 fire suppression system compared to other fire suppression system.
1/ It is the single zone Novec1230 fire suppression system that can protect the largest volume among the Novec1230 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.
2/ Using single zone Novec1230 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.
3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.

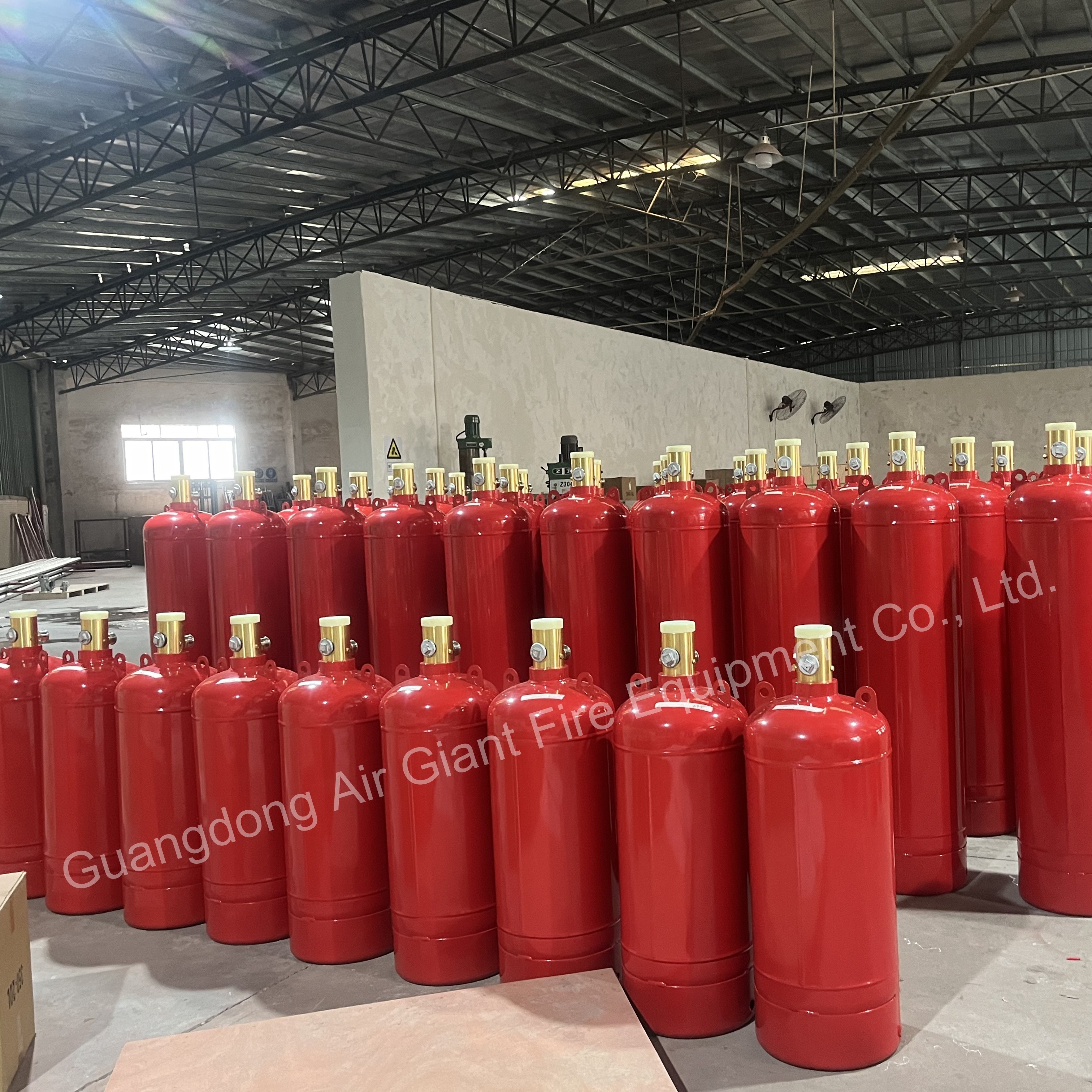

4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
