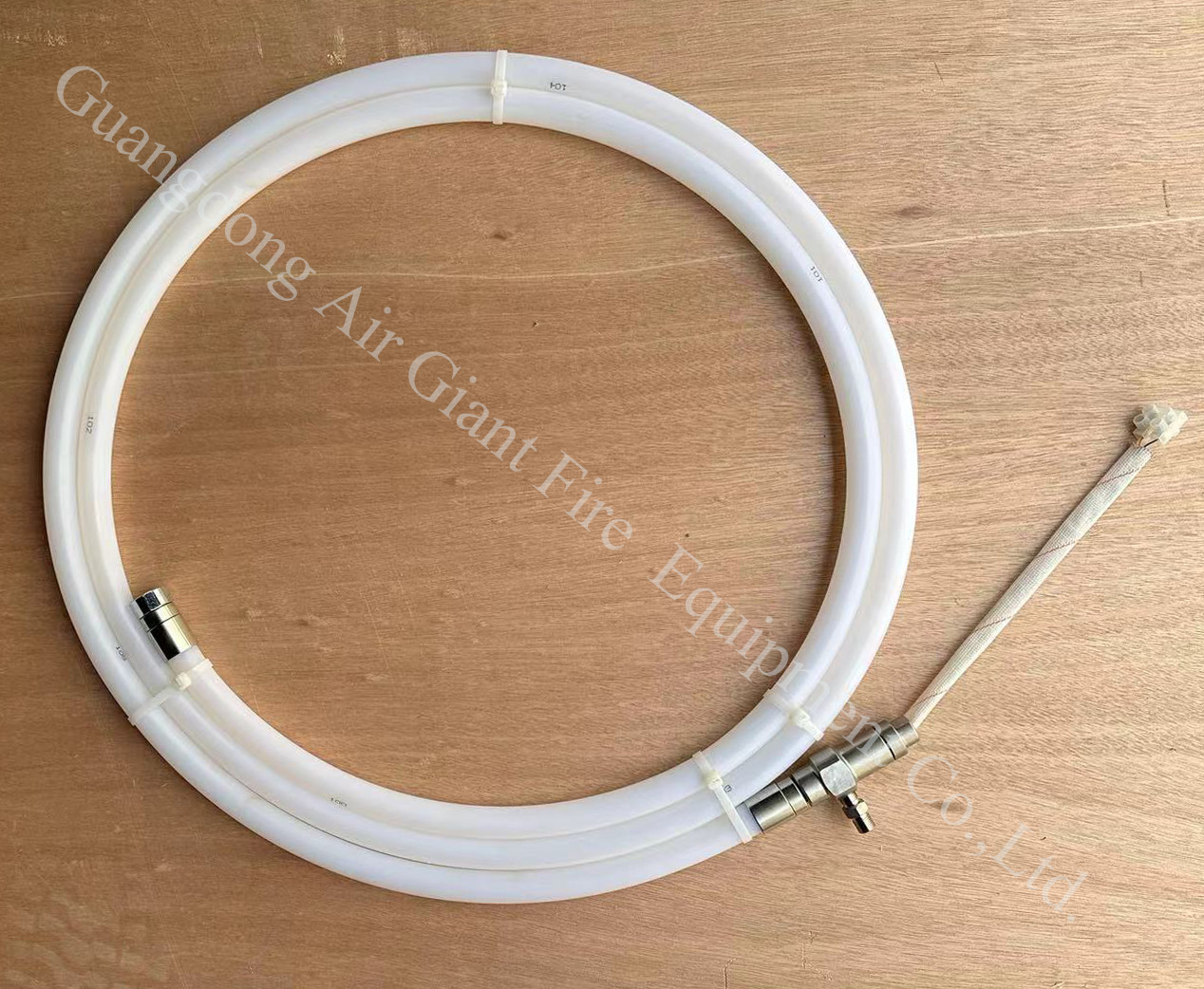

Cafss Novec1230 Automatic Fire Suppression Tube 1m-5m With With Electric Explosive Device
Heptafluoropropane fire extinguishing tube is a fire extinguishing equipment designed for modern fire fighting needs. It adopts advanced Heptafluoropropane fire extinguishing agent, combined with unique tube design, which makes the fire extinguishing process more rapid and efficient.
Parameters of Fire Suppression Tube
| Model No. | Type of agent |
Amount of agent (g) |
Length of tube (cm) |
Diameter of tube (mm) |
Approximate maximum coverage (cubic meter) |
Working temperature (℃) |
Blasting temperature (℃) |
| AG100H/N |
HFC-227ea / FK-5-1-12 |
250±5 | 100 | 18 | 0.25 | From -40 to 80 | 110±10 |
| AG200H/N | 500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 | |
| AG300H/N | 750±10 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| AG400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| AG500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
Detachable part-option---Electric Explosive Device
After the electric detonator is powered on, the explosive inside is detonated through the ignition device at the end. After the explosion, a certain inference is generated, and the internal thimble is pushed to pierce the membrane separating the electric detonator and the tube. The explosive is released through the tube above the device
Advantages of Fire Suppression Tube
1. Efficient fire extinguishing: Heptafluoropropane fire extinguishing agent has excellent fire extinguishing effect and can quickly extinguish various fires.
2. Environmentally friendly and harmless: the fire extinguishing agent is non-toxic, odorless and harmless to the environment, which is in line with the environmental requirements of modern society.
3. Easy to use: the fire extinguishing tube is reasonably designed, simple and easy to operate, convenient for daily use and maintenance.
Functions of Fire Suppression Tube
1. Rapid fire extinguishing: fire extinguishing tube can quickly release the extinguishing agent, effectively extinguish the incipient fire, to prevent the fire from spreading.
2. Cooling anti-reignition: extinguishing agent can reduce the temperature of the fire, to prevent the fire from rekindling, to ensure that the fire extinguishing effect is durable and stable.
3. Protection of equipment: no damage to electrical equipment, precision instruments, etc., to effectively protect property safety.
Application of Fire Suppression Tube
Heptafluoropropane fire extinguishing hose is widely used in data centers, museums, libraries and other places that require efficient and environmentally friendly fire extinguishing to provide a safer and more reliable fire protection for modern society.
Packages of Fire Suppression Tube
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
