Cafss Enclosed Flooding Novec1230 Fire Suppression System Without Pollution For Telecommunication Room
Perfluorohexanone (Novec1230) is stored in liquid form, but vaporized immediately after being ejected, completely submerged in the protected space. Novec 1230 is a clear, colorless and tasteless detergent and an effective substitute for halon gas. The area where electronic equipment works and irreplaceable high-value assets are located. For example, museums, banks, clean rooms, hospitals, etc., using water as fire extinguishing agent will have the same destructive effect as the fire itself. But Novec 1230 did it.
The ozone depletion potential (ODP) of Novec 1230 is zero, the global warming potential (GWP) is one, and its life in the atmosphere is only five days, which makes Novec 1230 the cleanest and most environmentally friendly chemical fire extinguishing agent at present.

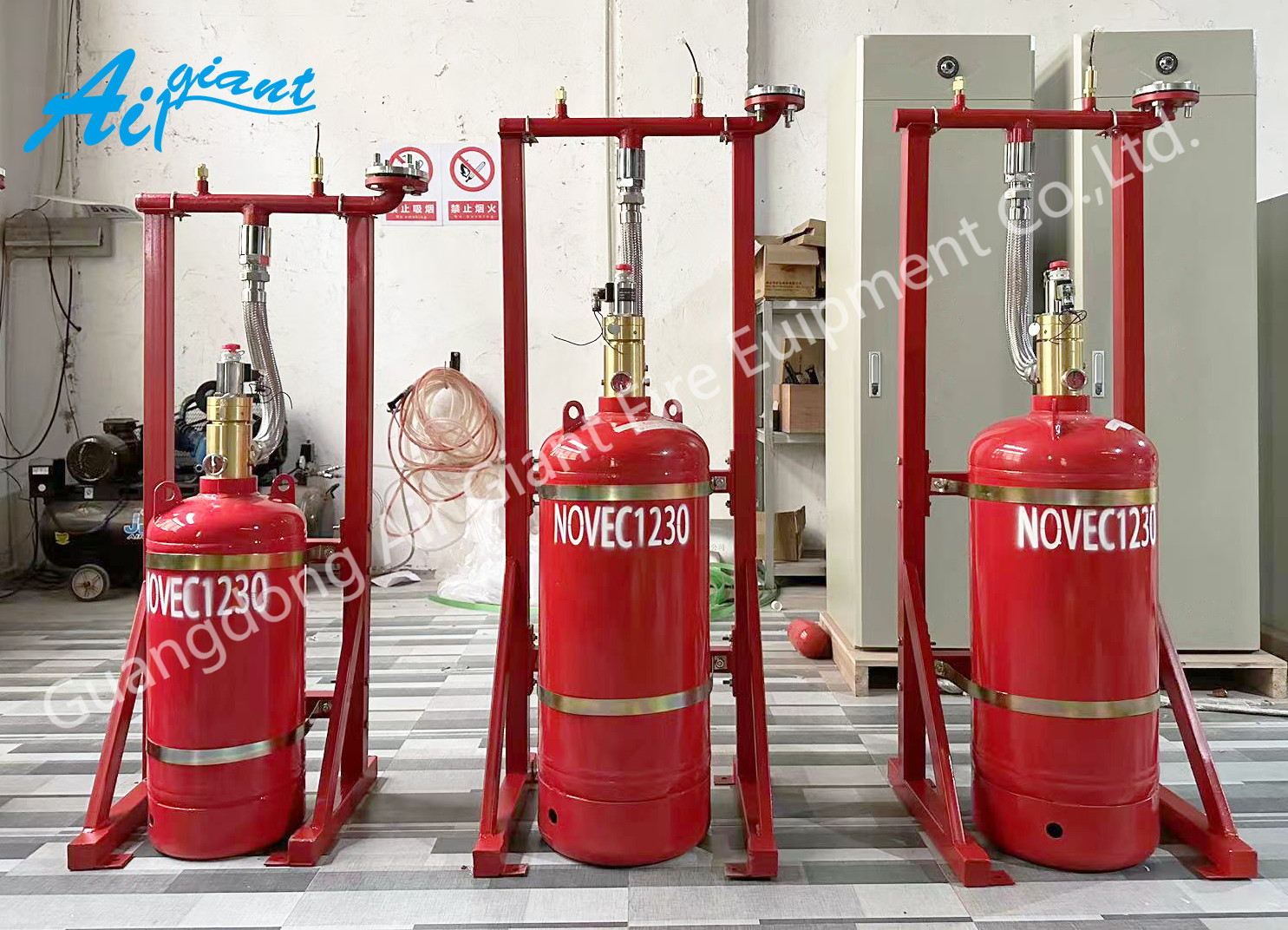

Components of Novec1230 Fire Suppression System
Pipe network Novec1230 fire suppression device is composed of the follow-up components: Novec1230 agent, Novec1230 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.
Application of Novec1230 Fire Suppression System
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Advantages of Novec1230 Fire Suppression System
It is very efficient for you to protect your possession. Since it is a system, it includes extinguishing device to put out fire in a short time. It means all agent will be discharged in less than 10 seconds. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minutes. It means when a fire happens, there is enough time for people escaping the building. We have listed out two points for customer as reference.
1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.
2/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or in different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be less than 8 including 8 in accordance with our standard.
Packages of Novec1230 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
