Temperature Control Hanging FM200 Fire Suppression System Without Pollution Linkage Series

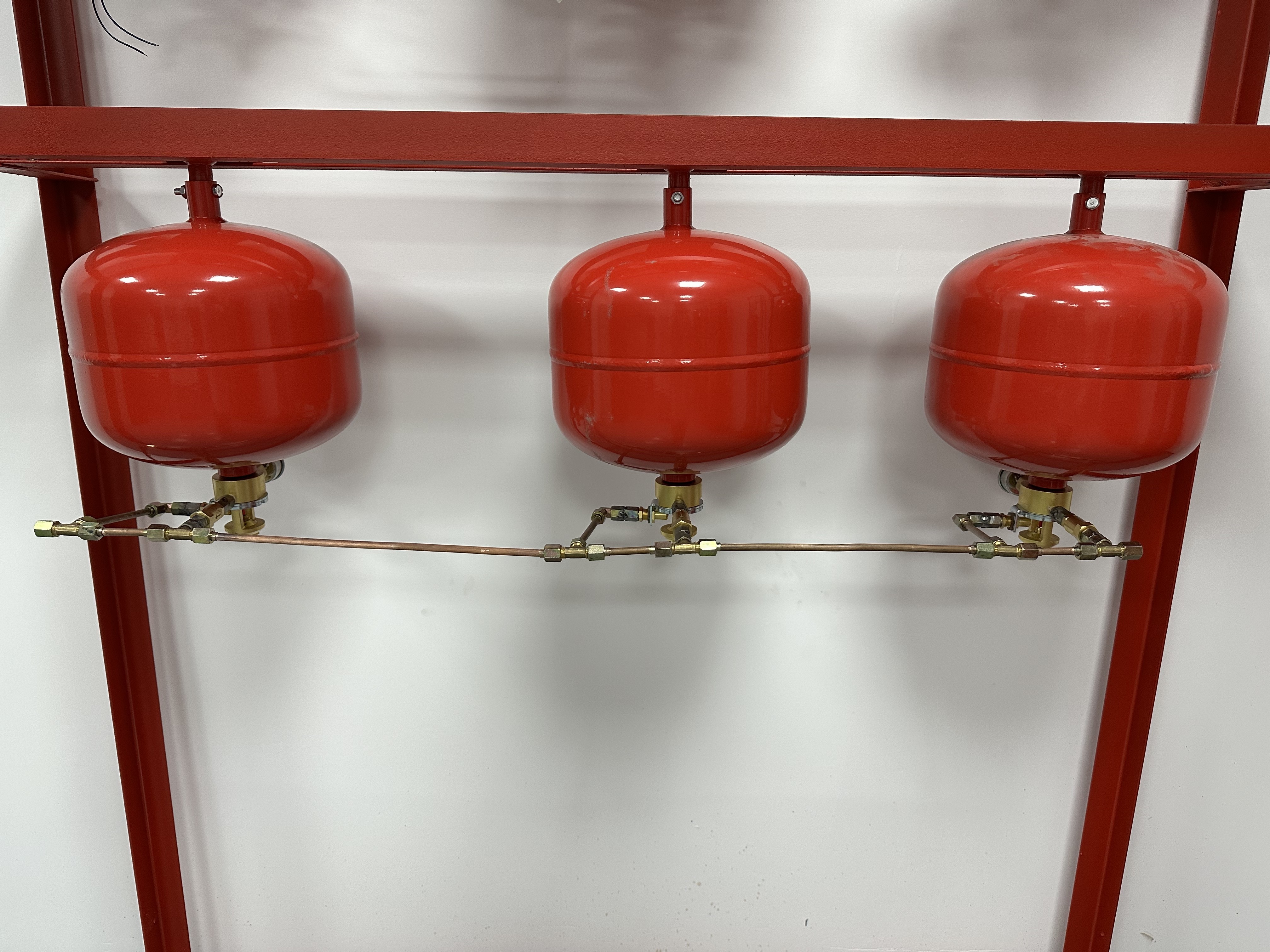

The linkage suspension type heptafluoropropane fire extinguishing device (temperature controlled type) mainly relies on the glass ball on one of the bottle valves to break and open the valve to spray the extinguishing agent during the thermal expansion of the fire. Part of the extinguishing agent flows through the copper pipe, pushing the needle to pierce the temperature sensing glass ball of the connected bottles, thereby activating the valve to spray the extinguishing agent.
Parameters
| No. | Specifications | Parameters |
| 1 | Tank size | 8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr |
| 2 | Device model | XQQW8/2.5, XQQW10/2.5, XQQW16/2.5, XQQW20/2.5, XQQW30/2.5 |
| 3 | Working pressure | 2.5MPa |
| 4 | Discharge time | ≤10s |
| 5 | Maximum filling Density | 1 kg/L |
| 6 | Activating Temperature | 68℃ |
| 7 | Ambient working Temperature | 0℃～50℃ |
Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.
| Device model | Filling amount (kg) | Working pressure(MPa) | Storage pressure (MPa) | Maximum coverage(m³) | Starting mode |
| XQQW8/2.5 | 8 | 2.5 | 1.6 | 11.11 | temperature sensor Activating Temperature: 68℃ |
| XQQW10/2.5 | 10 | 2.5 | 1.6 | 13.89 | |
| XQQW16/2.5 | 16 | 2.5 | 1.6 | 22.22 | |
| XQQW20/2.5 | 20 | 2.5 | 1.6 | 27.78 | |
| XQQW30/2.5 | 30 | 2.5 | 1.6 | 41.67 |
Components
One spherical pressure tank, fire extinguishing agent(HFC-227ea, same as FM200), hanging mounting, thermal sensor(one little glass tube filled with liquid whose volume will be changed by temperature).
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
