Electromagnetic Type Kitchen Fire Suppression System Single And Double Bottle Group
Features Gallery Product Description Request A Quote
Features
Specifications
Maximum Working Pressure Of The Device: 1Mpa
Operating Temperature: 0-50 ℃
Drive Gas Name:: Nitrogen
Filling Pressure Of Driving Bottle: 6Mpa
Fire Extinguishing Agent Name: Edible Oil Specific Fire Extinguishing Agent
Reagent Filling Capacity: 9L (single Bottle Group)/9L*2 (double Bottle Group)
Effective Spraying Time: ≥ 30s
Shelf Life Of The Drug: 3 Years
Temperature Sensor Nominal Operating Temperature: 183 ℃
Extinguishing Type: Edible Oil Fires
High Light:

Electromagnetic Type Kitchen Fire Suppression System

,

Double Bottle Kitchen Fire Suppression System

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: CMDS12-1-RG; CMDS22-2-RG
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
Product Description

Electromagnetic Type Kitchen Fire Suppression System Single and Double Bottle Group



Description of kitchen Fire Suprresion System



The kitchen fire suppression device can achieve automatic monitoring, detection, and activation 24 hours a day, with a short spraying time of fire extinguishing agent and rapid extinguishing within 5 seconds. During fire extinguishing, the burning oil does not produce splashes. This product is started mechanically and does not require electricity. To prevent corrosion, all raw materials are made of stainless steel or copper. When installed and used, it does not occupy the kitchen area but only occupies the space and position. The installation of the number and position of nozzles is flexible and meets the requirements of the specifications. The on-site design and installation are carried out according to the number of stove fire holes. Environmentally friendly fire extinguishing agent, easy to clean, and convenient for daily cleaning. At the same time, the fire extinguishing device is installed on the surrounding walls of the protective zone, which does not occupy the ground space of the protective zone.

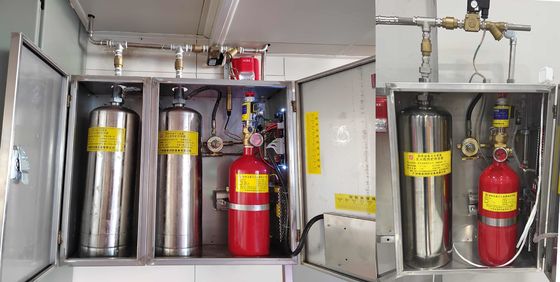

Electromagnetic Type Kitchen Fire Suppression System Single And Double Bottle Group 0Electromagnetic Type Kitchen Fire Suppression System Single And Double Bottle Group 1





Parameters of kitchen Fire Suprresion System



Model Volume(L) Starting pressure(MPa) Outer diameter of box(mm) Most protection points Capacity of agent(kg)
CMDS12-1-RG 9×1 6 485×235×605 12 14.5
CMDS22-2-RG 9×2 6 685×235×605 22 14.5 ×2





Components of kitchen Fire Suprresion System



The kitchen equipment fire extinguishing device is a complete set of devices installed in high humidity and heat environments such as industrial kitchens, commercial kitchens, and civilian kitchens, consisting of fire extinguishing agent storage container components, driving gas storage container components, pipelines, nozzles, valves and their driving devices, temperature sensors, control devices, gas valves, etc.





Working principle of kitchen Fire Suprresion System



Electromagnetic Type Kitchen Fire Suppression System Single And Double Bottle Group 2



Application of kitchen Fire Suprresion System



kitchen equipment fire suppression device is mainly used at the following site: hotel, resturant kitchen, the catering center of the stadium, large/medium/small resturant, fast food resturant, the catering center of the airport, the kitchen of the office and hospital, large office building restaurant, the kitchen of industrial and mining enterprises, college canteen and so on.

Electromagnetic Type Kitchen Fire Suppression System Single And Double Bottle Group 3





Packages of kitchen Fire Suprresion System



We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
