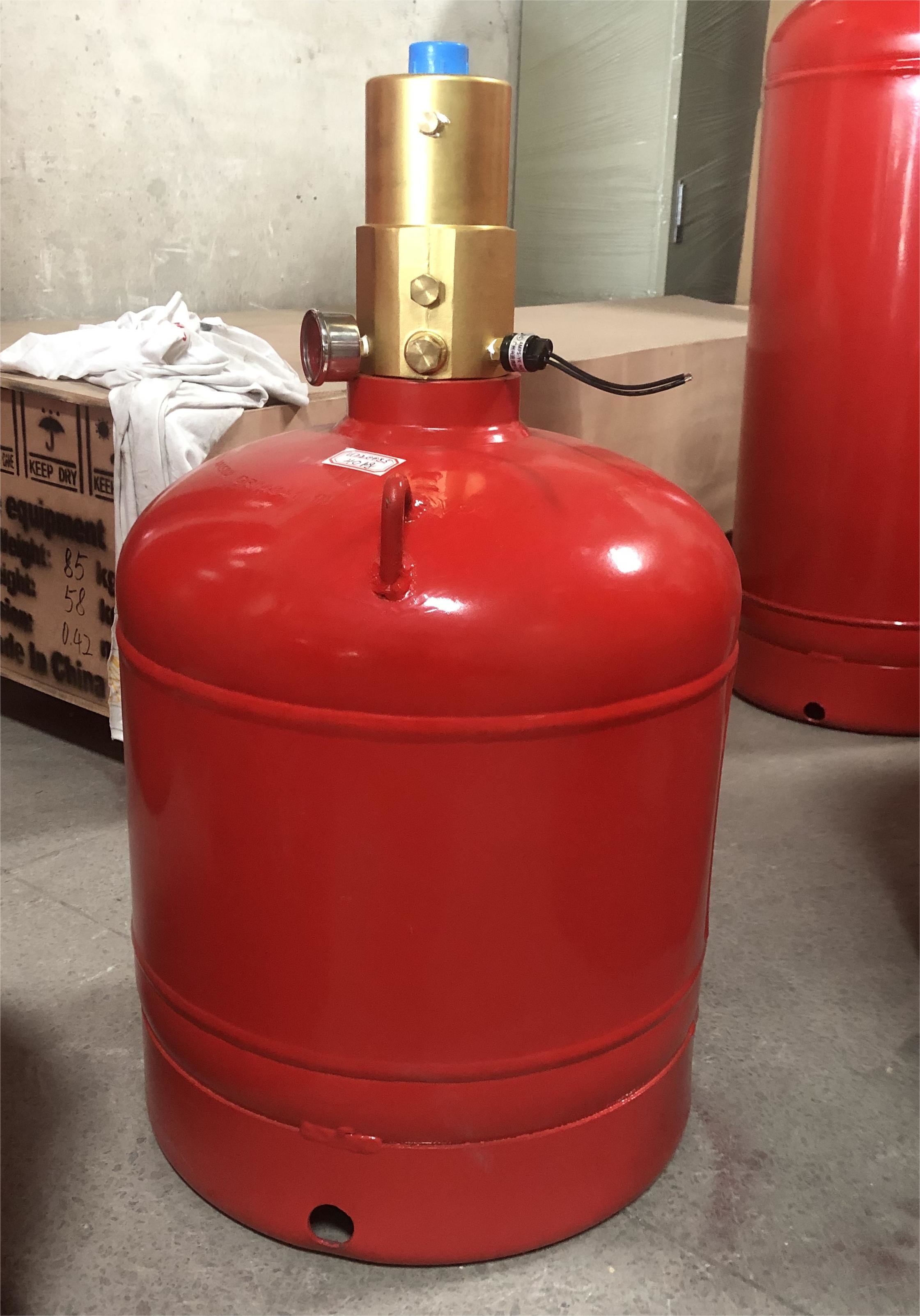

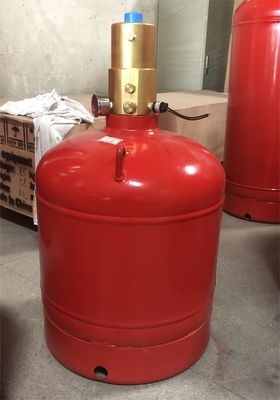

Cylinder For Insulated FM200 Fire Suppression System Without Pollution In Anechoic Chamber
1. Different shape: tank and cylinder
2. Different model: 8L, 10L, 40L, 70L, 90L etc or custom made
3. Different structure: welded cylinder and seamless cylinder
4. Different material: carbon steel and aluminum
Parameters
| No. | Specification | Technical Parameter |
| 1 | Device Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Filling Volume of Gas | 42kg |
| 4 | Working Pressure | 5.7MPa |
| 5 | Max Working Pressure | 12.4MPa |
| 6 | Spraying Time | ≤60s |
| 7 | Max Filling Rate | 0.6kg/L |
| 8 | Power | DC24V/1.6A |
| 9 | Working Pressure of Releasing Device |
Container Valve: 19±0.95MPa; Manifold: 15±0.75MPa |
| 10 | Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | Temperature: 0~50℃ |
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
