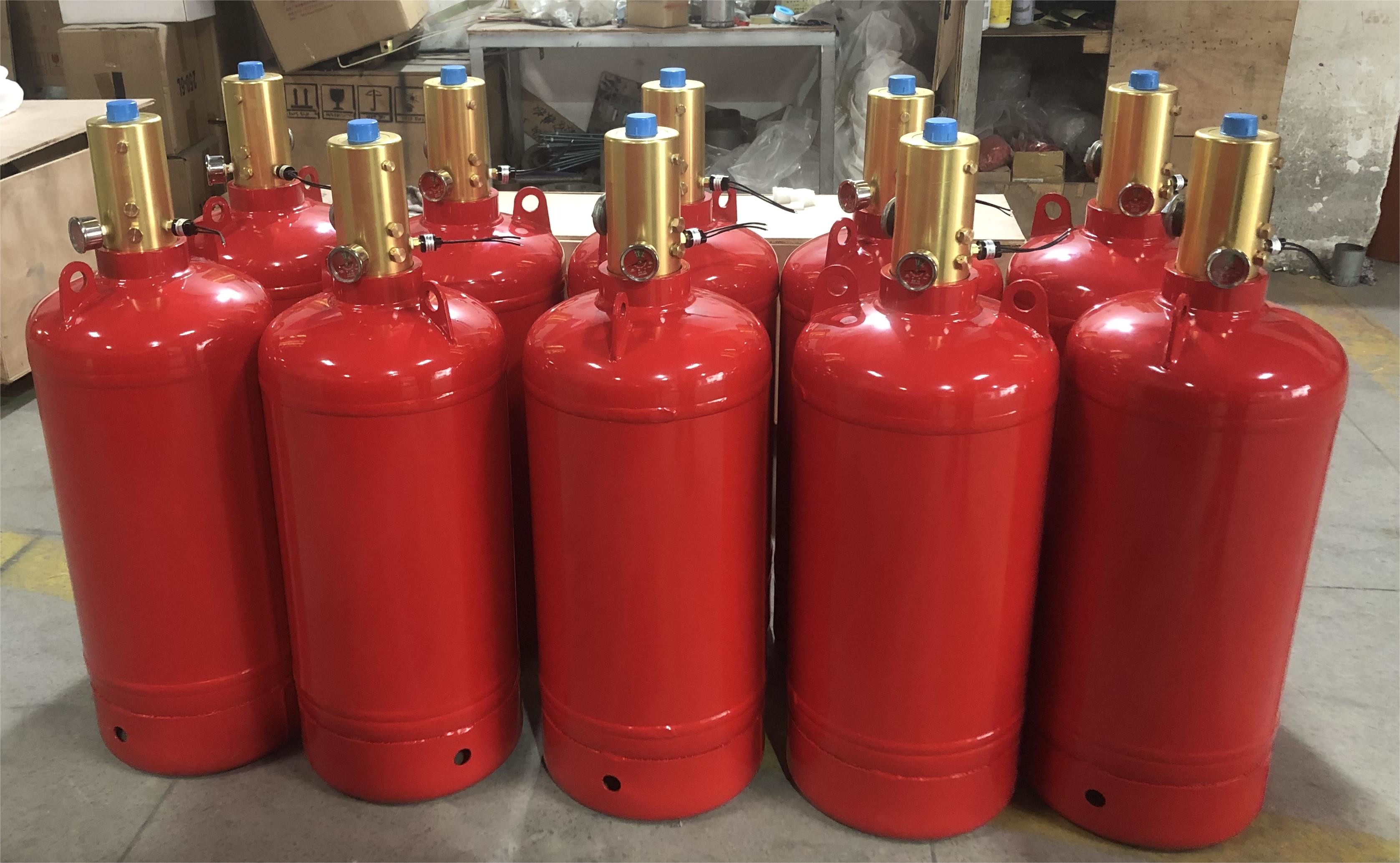

Cylinder For Automatic FM200 Fire Suppression System Without Pollution In UPS Room
Description
The table shows the specific parameters of several conventional bottles of different sizes
| Cylinder(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Actual volume(L) | 40.5 | 70.5 | 90.5 | 100.5 | 120.6 | 150.5 | 180.6 |
| Internal diameter(mm) | 300 | 350 | 350 | 350 | 350 | 400 | 400 |
|
Total length(mm) (including valve) |
890 | 1060 | 1265 | 1385 | 1578 | 1530 | 1773 |
| Filling medium | FM200+nitrogen | ||||||
|
Weight of cylinder(kg) (including valve)
|
38 | 63 | 74 | 80 | 94 | 116 | 133 |
| Test of hydraulic pressure | 8.4MPa | ||||||
| Test of sealing pressure | 5.6MPa | ||||||
Components
The bottle part is composed of steel cylinder and cylinder valve
Application
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
