Cylinder For Non Corrosive FM200 Fire Suppression System Without Pollution In Power Room
Description

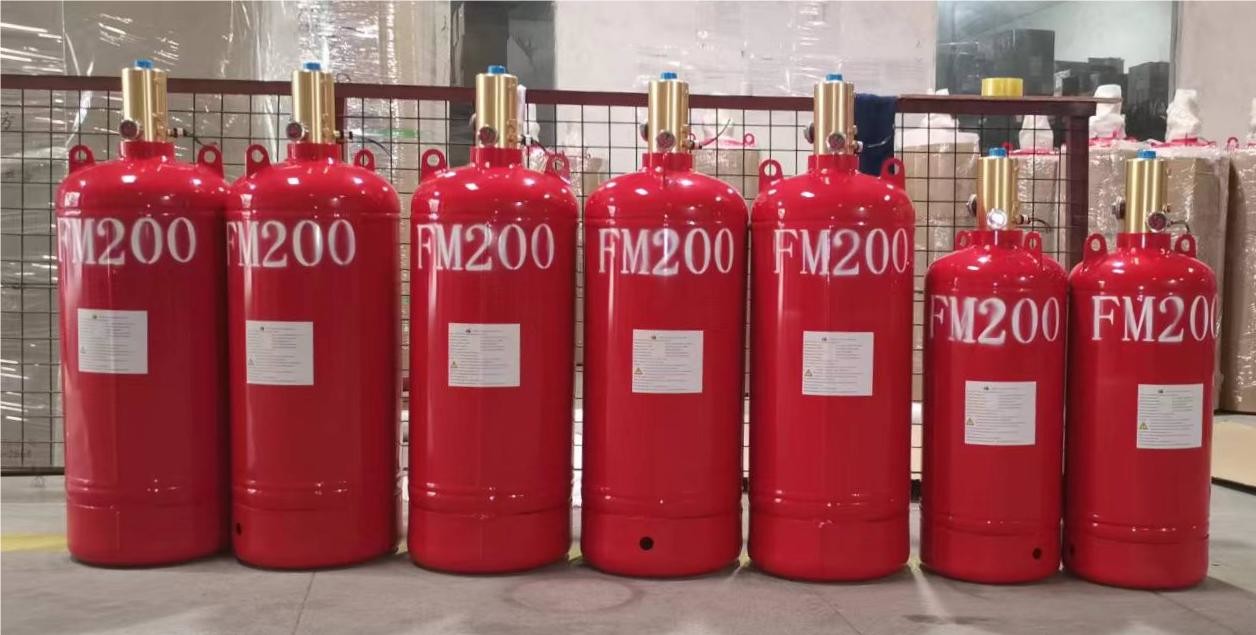

The fm200 gas cylinder is made with carbon steel and used to store the fm200 agent that is in liquid condition. This cylinder is different in size, volume as well as the storage pressure. No matter which size of cylinder, there are only two kinds of storage pressures -- 4.2MPa and 5.6MPa. Besides, all these cylinders can be used in all kinds of fire suppression system not just for fm200 fire suppression system.
| Cylinder (L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Filling capacity(kg) | 46.4 | 81.2 | 104.4 | 116 | 139.2 | 174 | 208.8 |
| Designed thickness of cylinder(mm) | 5.4 | 6.3 | 6.3 | 6.3 | 6.3 | 7.2 | 7.2 |
| Designed thickness of head(mm) | 4.8 | 5.7 | 5.7 | 5.7 | 5.7 | 6.5 | 6.5 |
| Material standard | GB6653-2008 | ||||||
| Specified value of chemical ingredients of material |
C<0.20% Si<0.35% Mn<1.50% P<0.025% S<0.015% P+SM0.04% |
||||||
| Test of hydraulic pressure | 8.4MPa | ||||||
| Test of sealing pressure | 5.6MPa | ||||||
Components
The bottle part is composed of steel cylinder and cylinder valve
Application
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
